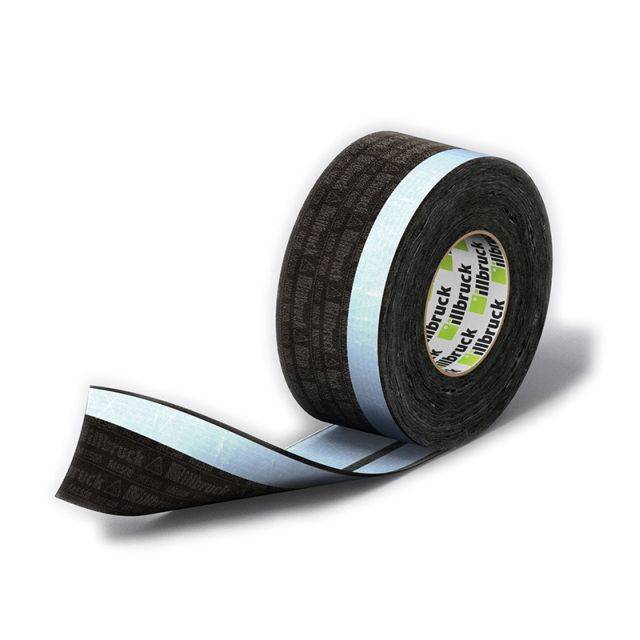

ME508 Duo EW/F Intelligent Membrane

Verified by manufacturer 6 months ago

illbruck – a brand of Tremco CPG UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Non-woven fleece laminate with full self-adhesive backing for perimeter sealing of windows and doors.

Jump to:
+44 (0)1942 251400 Website

Application

For the air and watertight but breathable sealing of the internal perimeters of window, door and curtain wall frames in SFS, timber framed, solid and traditional cavity wall or volumetric building type constructions.


Primerless adhesion is usually accomplished on most common construction substrates. The membrane requires consolidation where it is bonded to the substrates. The combination of self-adhesives provides options on the leading edge for installing the membrane to the window frame edge (W orientation) or face (E orientation), providing air, vapour, and weather tightness. ME508 can also be used externally subject to a maximum of 9 months of direct UV exposure. Difficult substrates or cold weather applications may require primer illbruck AT140. Please consult the manufacturers' technical datasheet and method statements.

Description

ME508 Duo EW/F is a non-woven fleece laminate that is self-adhesive on the reverse face, for optimised adhesion to most construction substrates providing airtightness and variable vapour control to the internal window door or curtain wall perimeter joint between the glazed frame and structure. Often used in conjunction with illbruck ME501 Duo HD Membrane usually applied to the external perimeter.


Features and benefits:

  • Air and vapour tight.
  • Driving rain resistant to 600 Pa.
  • Fully self-adhesive to one face and 20 mm to opposite face, allowing options to fix to window.
  • Avoids use of separately applied adhesives.
  • Can be plastered over.


For Technical Data Sheets and Safety Data Sheets, please refer to the illbruck website Download Centre.

General information

Color

Grey

Material

Acrylic

Shape

Rectangle

Length

25000 mm

Width

250 mm

200 mm

140 mm

100 mm

70 mm

Height

0.5 mm

Warranty description

-

Manufacturer guidance

Any product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge.

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary
Pr_35_90_33_23 Door threshold weatherstrips and seals
Pr_30_31_76_85 Structural sealant glazing weather sealants

CAWS

H11/772 Curtain walling joint assembly sealants

L10/810 Sealant joints

L20/820 Sealant joints

L10/75 Sealant joints

L20/80 Sealant joints

Product range

Window Perimeter Sealing Membranes (Internal)
i3 - 3 level sealing system

Specification data - Door and window weatherstrips and seals

Third-party certification

British Board of Agrement Certificate.

Guidance for specification option:

12/4891 (i3 System) and product sheet 4 12/4891.

Classification grades (minimum)

-

Working temperature range

-40°C to +80°C.

Size

70 mm.

100 mm.

140 mm.

200 mm.

250 mm.

Manufacturer guidance

Width.

Length - 25 m. Thickness - 0.5 mm.

Materials

-

Seals

Acrylic.

Colour

Antracite/ dark grey.

Execution

-

Manufacturer guidance

In strict accordance with manufacturers' method statement. Window, door and curtain wall applications -Minimum bond to glazing frame is 20 mm. Minimum lap and bond to backing wall/substrate is 50 mm. When applied as linear construction joint seal the membrane should be applied equal distant over the joint with a 50/50 lap to the corresponding substrates and a minimum bond of 35 mm, 50 mm preferred.

Air permeability

To BS EN 1026, <0.1m³/m².hr@50Pa.

Application temperature

+5° to +40°C.

Storage

12 months in cool dry conditions.

UV resistance

9 months full exposure.

Water vapour resistance (minimum)

To BS EN 1027 variable sd-value 0.4 m to 20 m.

Guidance for specification option:

Vapour resistance 2 MNs.g to 99 MN.s.g.

Fire performance

To EN 13501-1 Class E; to DIN 4102, Class B2.

Accessories

Cutting shears.

Retractable bladed knife.

Seam roller.

Tape measure.

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate Full i3 System

BBA Agrément Certificate

BBA Agrément Certificate

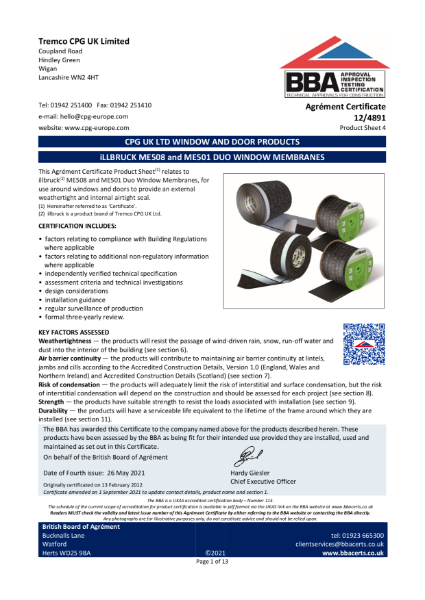

BBA Certificate ME508 and ME501 Duo Window Membranes
