Omega Block Paving - Concrete Block Paving

Verified by manufacturer 3 months ago

50 mm Single size packs

Brett Landscaping Variant:
Third party certifications:
  • BES 6001

    BES 6001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

Brett Omega is a classic rectangular concrete block, that remains the UK's most popular format of paving.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and commercial use: hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, heavy duty pavements, roof top and balcony applications.

Description

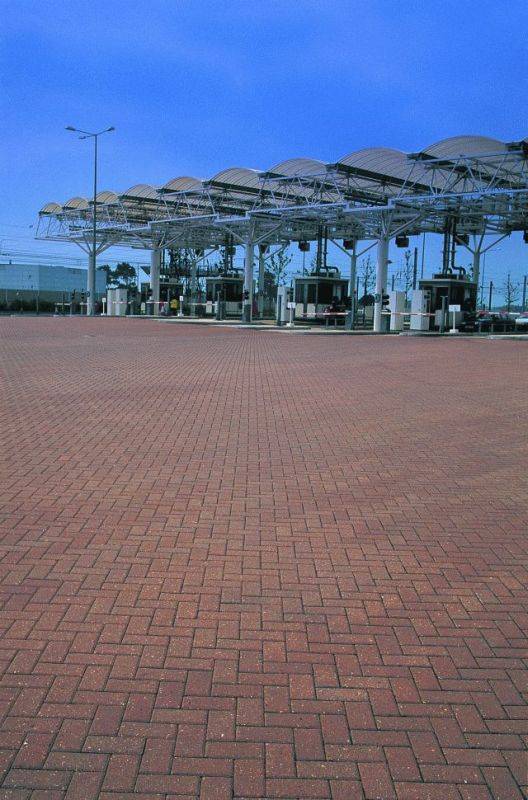

Omega concrete block paving can be installed in various patterns including 45° and 90° herringbone making it suitable for virtually all types of paving application.

Omega concrete block paving also comes in thicknesses of up to 80 mm meaning that it can be tailored to suit almost any trafficking application.

Omega paving blocks come with a number of complimentary products including half blocks, marker blocks, pencil edge blocks, Bishops Hat edging blocks, kerbs and circles as well as a permeable paving option.


Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Color

Red

Grey

Beige

Yellow

Finish

Smooth

Material

Concrete

Shape

Rectangle

Length

200 mm

Width

100 mm

Height

50 mm

60 mm

80 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Product range

Omega

Specification data - Concrete paving blocks

Standard

To BS EN 1338: 2003.

Physical properties

-

Colour

Autumn Gold.

Guidance for specification option:

(AG).

Brindle.

Guidance for specification option:

(BR).

Buff.

Guidance for specification option:

(BF).

Burnt Oak.

Guidance for specification option:

(BO).

Charcoal.

Guidance for specification option:

 (CL).

Natural.

Guidance for specification option:

(GY).

Red.

Guidance for specification option:

(RD).

Silver Haze.

Guidance for specification option:

(SH).

Finish

Smooth faced.

Profile

-

Paver type

Regular plan form.

Arrises

Chamfered.

Dimensions and associated tolerances

-

Nominal sizes

200 x 100 x 50 mm.

Arrises

Chamfered, 6 x 4 mm.

Weathering resistance

Class 3.

Abrasion resistance

Class 3.

Slip resistance

Unpolished Slip Resistance Value (USRV): ≥55; Potential for slip: Low.

Type

Hand lay.

Other requirements

Not required.

Bishops Hat edging blocks, 60 mm.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Half Omega.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Omega marker block paving, yellow.

Guidance for specification option:

Depth to match block paving.

Omega marker block paving, white.

Guidance for specification option:

Depth to match block paving.

Show more

Third-party certification

CE marked.

Guidance for specification option:

Consult manufacturer for BREEAM rating.

Strength

Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm.

Unit weight

2.2 kg.

Tolerances on plan dimension and thickness nominal

Thickness ± 3 mm ; Plan Size ± 2 mm.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

291 kg CO₂ eq/m³

Recyclability

100%
