Omega Pencil Edge Block Paving
Verified by manufacturer 4 months ago
60 mm Single size packs
60 mm Single size packs
Brett Omega Pencil Edge is a rectangular concrete block with a minimal chamfer. This creates a smoother running surface, making it easier for pushchairs, wheelchairs and trolleys.
Application

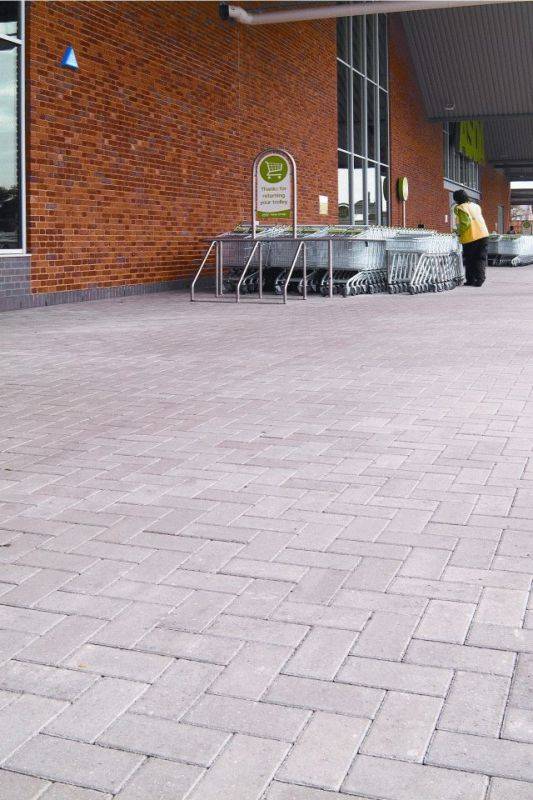

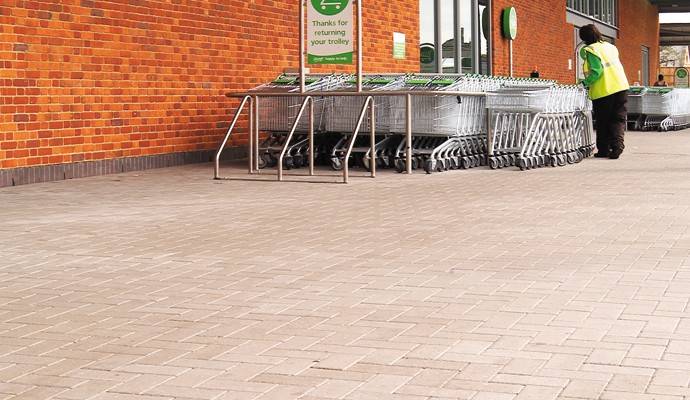

Domestic and commercial use: hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications etc.
Description
The design of Omega Pencil Edge paving blocks allow a variety of patterns to be easily achieved.
Omega Pencil Edge concrete block paving also comes in a range of thicknesses up to 80 mm meaning that it can be tailored to suit almost any trafficking application.
Omega Pencil Edge block paving comes with a number of complimentary products including marker blocks and kerbs.
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Red Grey |
Finish | Smooth |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated). |
Shape | Rectangle |
Length | 200 mm |
Width | 100 mm |
Height | 60 mm 80 mm |
Warranty description | Manufacturer guidanceStatutory Rights - Technical Support. |
Uniclass | |
CAWS | Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/113 Conventional concrete block paving overlay |
Product range |
Specification data - Concrete paving blocks
Standard | To BS EN 1338:2003. |
Physical properties | |
Colour | Brindle.Charcoal. |
Finish | Smooth faced with minimal edge chamfer. |
Profile | |
Paver type | Regular plan form. |
Arrises | Pencil edge. |
Interlocking features | Nibs. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 60 mm. |
Arrises | Pencil edge chamfer, 1 x 1 mm. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3. |
Slip resistance | USRV: ≥55 - Low. |
Skid resistance | Unpolished Slip Resistance Value (USRV): ≥55; Potential for slip: Low. |
Type | Hand lay. |
Third-party certification | CE marked; BREEAM A rating as per the BRE Green Guide, 4th Edition 2009. Guidance for specification option: A+ rating can be achieved when used in conjunction with a prepared recycled sub-base. |
Strength | Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm. |
Unit weight | 2.6 kg. |
Tolerances on plan dimension and thickness nominal | Thickness: ±3 mm; Plan size: ±2 mm. |
Literature
Specialist Kerbs & Permeable Paving

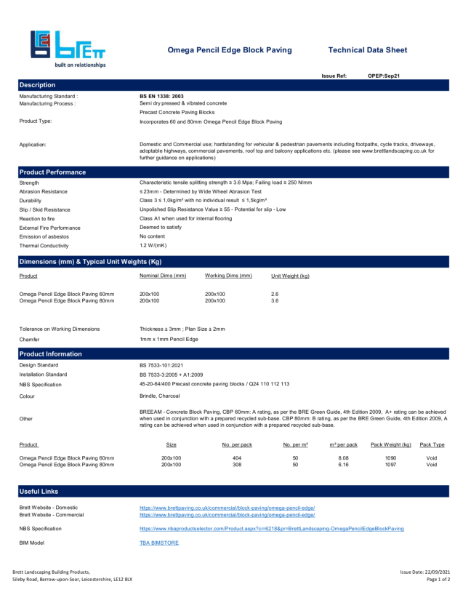

Omega Pencil Edge TDS Sept 21
