Pendock Profiles - Casing for Services - MX Plywood Pipe Boxing. - Pipe Boxing

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Preformed plywood casings.

Jump to:
+44 (0)1952 580 590 Website

Application

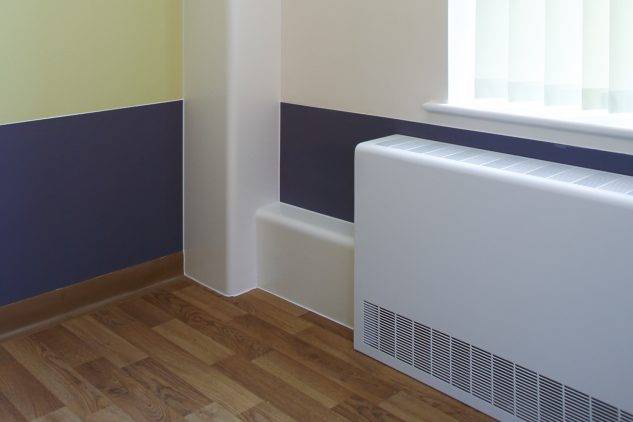

For covering and protecting larger diameter pipework, including heating services, soil and vent pipework, rainwater pipes and heat recovery ducting.

Description

MX casings are primarily designed for covering and protecting larger diameter pipework, including heating services, soil and vent pipework, rainwater pipes and heat recovery ducting. All profiles are 90° angles, with radiused corners. Internal radius: 21.5 mm.


Features and benefits:

  • Internal and external corners on 5 and 8 mm profiles (not bespoke).
  • Butt joints.
  • Stopends.
  • Shadow gap joints.
  • Factory-fitted edge shadow gaps (black finish for use with black screws), to provide discreet fixing location and material for scribing.
  • Inner collars are available for vertical sections, for use at the head and at skirting level, or as a shadow gap joints between sections, which can be supplied in complementary finishes to enhance the column design. Inner collars are produced to suit the internal dimensions of the main casing and have a standard height of 200 mm, to show up to 150 mm.
  • Profiles can be supplied with integral ventilation grilles, or grille patterns can be cut into the material on both legs of the casings, to allow the heat from pipework to flow freely into the occupancy. Grille patterns are uniformly spaced to provide a tolerance gap for cross-cutting on site. The minimum leg length for casings with grille patterns is 125 mm.

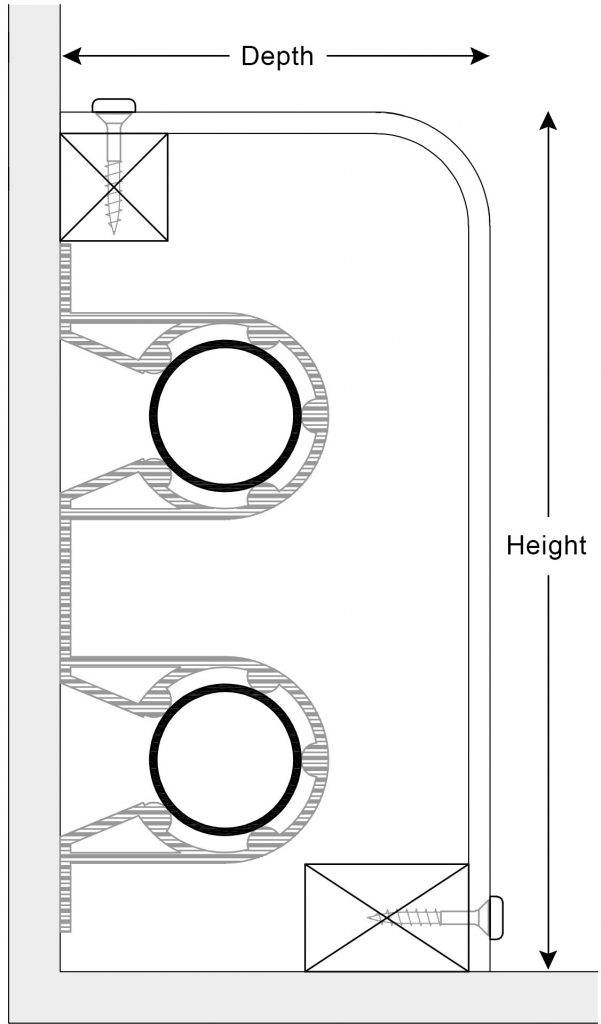

  • Profiles are available in a wide range of finishes to meet virtually all service conditions for building interiors. The profiles are fixed to softwood battens, available as part of the system. When determining the size of the profile, it is important to take into account the size and positioning of the battens.
  • Long runs of sections are joined together using butt joints incorporating 'push-fit' butt joint covers, or utilising a shadow gap joint.

General information

Color

White

Other

Finish

Laminated

Smooth

Veneered

Material

Plywood

Shape

Rectangle

Square

Length

2500 mm

Manufacturer guidance

3000mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

Specification data - Preformed casings

Material

Plywood.

Finish as delivered

Laminate.

Guidance for specification option:

8 mm or bespoke options only.

Laminate veneer.

Guidance for specification option:

8 mm or bespoke options only.

White melamine.

Profile

L-shape.

Size

75 x 150 mm.

75 x 200 mm.

75 x 300 mm.

100 x 100 mm.

100 x 200 mm.

150 x 150 mm.

150 x 200 mm.

150 x 300 mm.

200 x 200 mm.

200 x 300 mm.

300 x 300 mm.

Bespoke.

Guidance for specification option:

  • Vertical leg: Over 300 mm.
  • Horizontal leg: Over 300 mm.
  • Material thickness: 8 mm.
  • Lengths: 2500 and 3000 mm.
  • Joint types available: J8, J2, J3, J4 and J5.

Type

MX 5 mm.

MX 8 mm.

MX Bespoke.

Accessories

None.

Internal corners.

Guidance for specification option:

For 5 and 8 mm profiles (not bespoke).

External corners.

Guidance for specification option:

For 5 and 8 mm profiles (not bespoke).

Butt joints.

Stop ends.

Show more

Manufacturer guidance

Insert requirements.

Sustainability data

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

Even before we adopted the EU timber Regulations (EUTR) in 2013, we were using FSC® certified and sustainably sourced materials in our plywood product ranges.

Since Brexit and the transition to the UK Timber Regulations (UKTR), which came into force in 2021, we have implemented UKTR as our default compliance procedure.

As a result, all timbers used in the manufacture of our products are legally & sustainably sourced and are compliant with UKTR requirements.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

Pendock Pipe Boxing

Pendock Pipe Boxing

Case studies

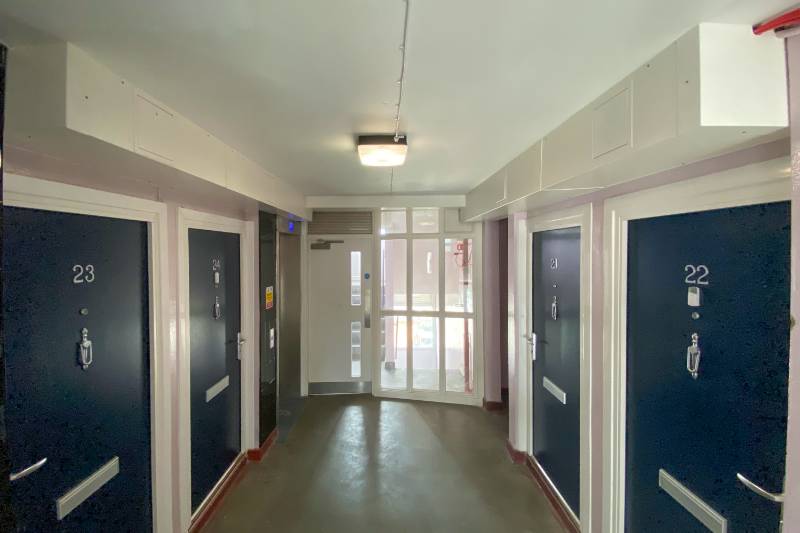

Pendock sprinkler boxing for Birmingham tower block upgrades

Pendock sprinkler boxing for Birmingham tower block upgrades

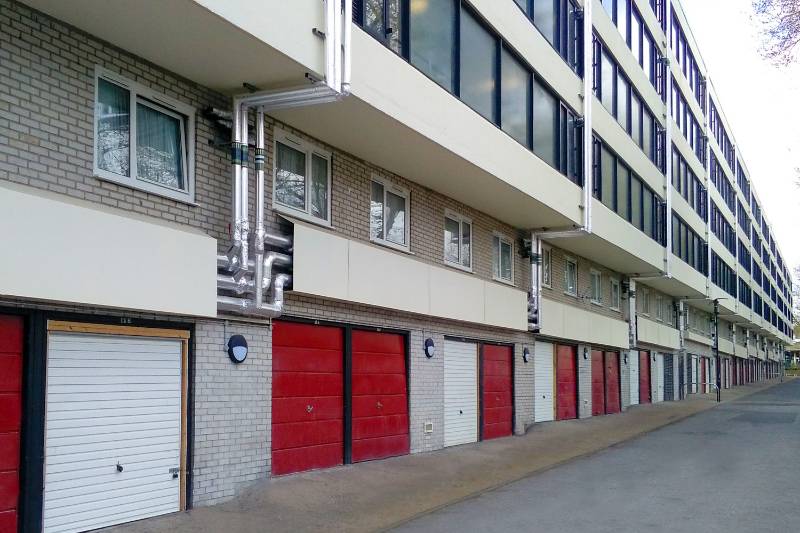

Metal Pipe Boxing - Camden’s high rise cover up with Pendock

Metal Pipe Boxing - Camden’s high rise cover up with Pendock

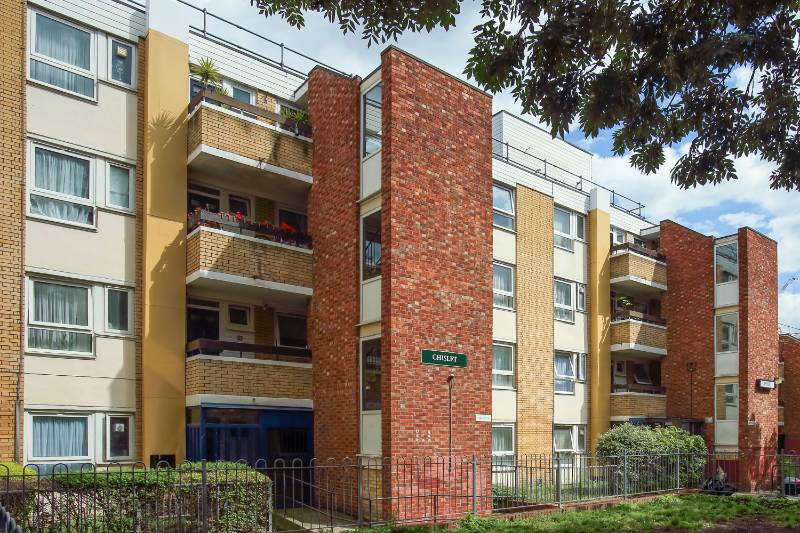

Metal pipe boxing adds the finishing touch in Camden

Metal pipe boxing adds the finishing touch in Camden

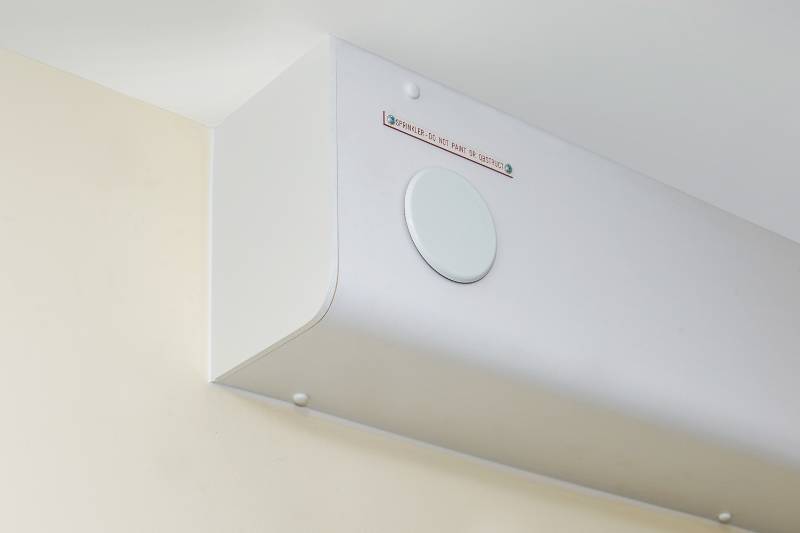

Metal pipe boxing protects sprinkler pipework
