Pendock Radius - MDF-CL – Circular Column Casings - MDF Circular Column Casings

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Column casing

Jump to:
+44 (0)1952 580 590 Website

Application

Suitable for interior column casing applications only. Designed to enclose virtually any size of free-standing structural element. Casings can be stacked on top of each other to achieve extended heights.

Description

Manufactured from 9 or 12 mm thick pre-formed plywood/MDF, circular column casings are designed to provide an effective, durable and versatile solution for concealing interior columns and other structural steelwork.


Available in standard diameters from 250 mm up to 920 mm, as well as bespoke sizes, the casings can be manufactured up to 3000 mm in a single length and can be stacked to reach increased heights.


Although most casings in are manufactured as semi-circles, for diameters above 750 mm they are typically supplied as quarter-circles. Both types can also be specified to incorporate flat extension panels between the joints.

General information

Color

Beige

Black

Blue

Cream

Green

Show more

Finish

Veneered

Laminated

Material

Plywood

Medium density fibreboard (MDF)

Shape

Circle

Length

Bespoke

Manufacturer guidance

3000mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

Specification data - Preformed casings

Material

Medium Density Fibreboard (MDF).

Finish as delivered

Laminate.

Guidance for specification option:

No visible joints.

Laminate veneer.

Guidance for specification option:

High pressure veneer.

MDF.

Guidance for specification option:

For onsite painting.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements.

  • Laminated outer finish available in a variety laminate options, including Polyrey, Formica, Abet with 1000's of different colour options - see laminate manufacturer for their range.

Profile

Circular.

Size

250 mm.

Guidance for specification option:

Type A only.

300 mm.

Guidance for specification option:

Type A only.

350 mm.

Guidance for specification option:

Type A only.

400 mm.

Guidance for specification option:

Type A only.

450 mm.

Guidance for specification option:

Type A only.

500 mm.

Guidance for specification option:

Type A only.

550 mm.

Guidance for specification option:

Type A only.

680 mm.

Guidance for specification option:

Type A only.

750 mm.

Guidance for specification option:

Type B only.

920 mm.

Guidance for specification option:

Type B only.

Manufacturer guidance

Diameter.

Type

A.

Guidance for specification option:

Semi-circular casings.

B.

Guidance for specification option:

Quarter circular casings.

Manufacturer guidance

Also available as extended circular casings with variable flat panels between sections.

Joints

J2 UPVC black shadow gap.

J3 aluminium extrusion with laminate insert on laminated column casings.

J5 laminated lipped joints.

Accessories

None.

Inner collar.

Guidance for specification option:

For head and skirting detail if required and for jointing application.

Fixing

Fixed to softwood battens using manufacturer's fixings.

Thickness

10 mm.

Length

3000 mm (Standard length).

Guidance for specification option:

Greater lengths can be achieved using an inner collar to link two sections.


Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Even before we adopted the EU timber Regulations (EUTR) in 2013, we were using FSC® certified and sustainably sourced materials in our plywood product ranges.

Since Brexit and the transition to the UK Timber Regulations (UKTR), which came into force in 2021, we have implemented UKTR as our default compliance procedure.

As a result, all timbers used in the manufacture of our products are legally & sustainably sourced and are compliant with UKTR requirements.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

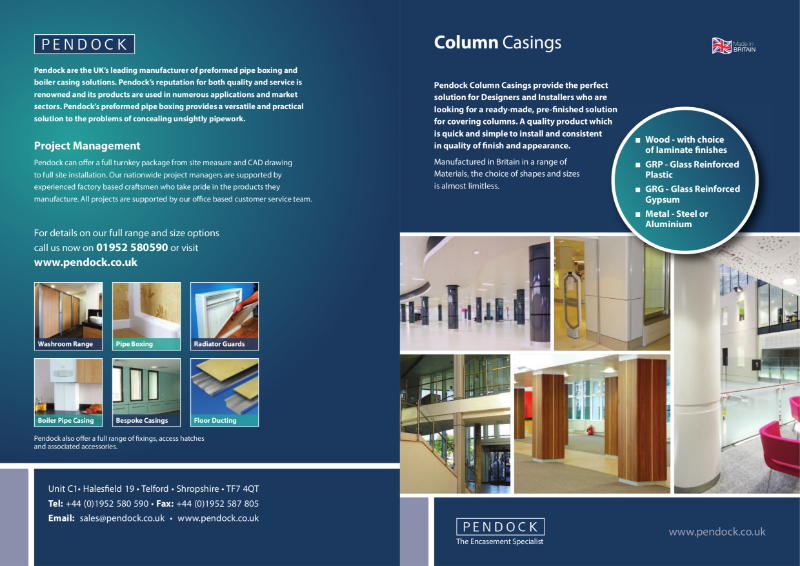

Pendock Column Casings

Pendock Column Casings

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure

Case studies

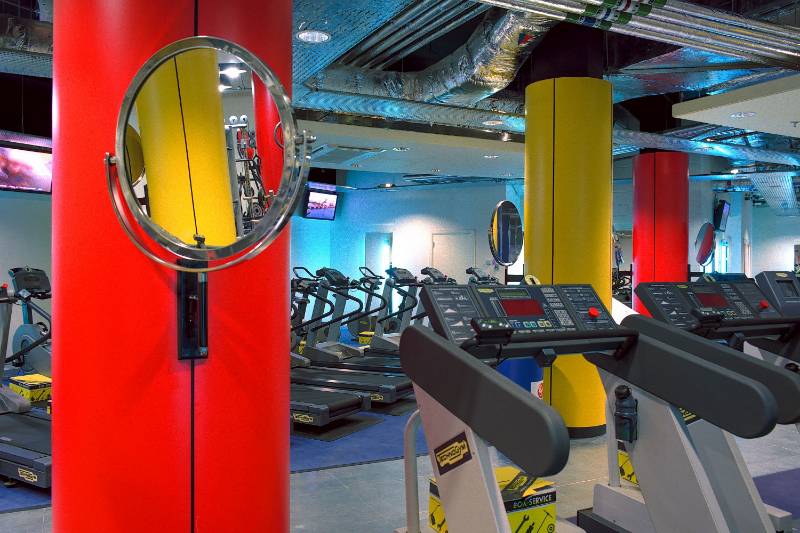

Pendock gets fit with Virgin Active and Radius Column Casings

Pendock gets fit with Virgin Active and Radius Column Casings

A tall order for Pendock at EPAC

A tall order for Pendock at EPAC

Pendock column casings on show at Birmingham’s NEC

Pendock column casings on show at Birmingham’s NEC

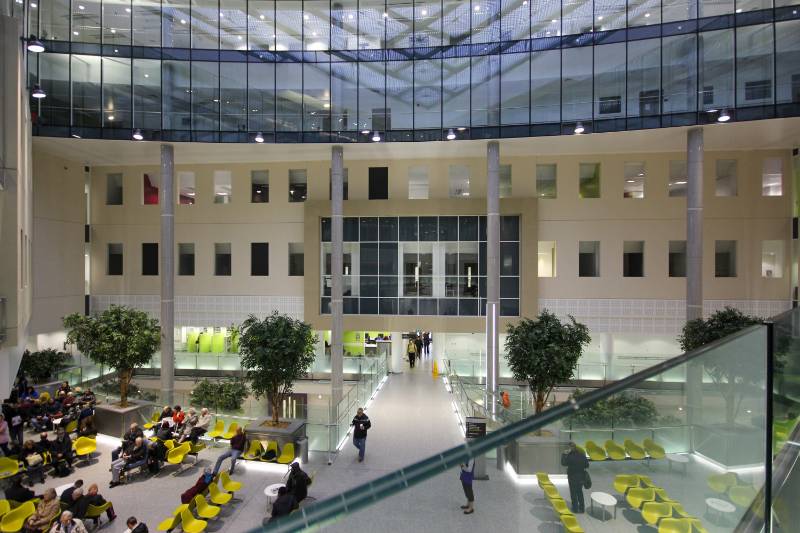

Pendock column casings reach new heights at St. Bart’s Hospital
