Pendock Radius - MET-SQ – Metal Square Column Casings. - Metal Square Column Casings

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Metal column casings - square and rectangular.

Jump to:
+44 (0)1952 580 590 Website

Application

Concealing structural steelwork and support columns in both interior and exterior applications.

Description

Pendock Radius square metal column casings are designed for use in both exterior and interior projects requiring a versatile and decorative solution to conceal structural steelwork.


Available in standard sizes ranging from 250 x 250 mm up to 1000 x 1000 mm, the casings can be manufactured from aluminium or stainless steel with material thicknesses of 2 mm and 3 mm respectively. They can also be specified in bespoke sizes and as rectangular shapes.


All casings can be manufactured and supplied in a single length up to 4000 mm and can also be stacked to reach greater heights. Additional options can be specified, which include internal acoustic foam lining, decorative feature joints and recessed head and skirting collars.


A wide range of finishes can be specified dependent on material, including PPC, textured, brushed, polished or patterned finishes, such as Rimex.

General information

Color

Beige

Black

Blue

Bronze

Cream

Show more

Finish

Powder-coated

Polished

Brushed

Textured

Material

Aluminium

Stainless steel

Shape

Square

Rectangle

Hexagon

Octagon

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Preformed casings

Material

Aluminium.

Stainless steel.

Finish as delivered

Powder coated.

Textured.

Brushed.

Polished.

Patterned.

Guidance for specification option:

Patterned finishes, such as Rimex.

Colour

Beige.

Black.

Blue.

Bronze

Cream.

Green.

Grey.

Ivory.

Silver.

White.

Other.

Guidance for specification option:

Insert requirements.

Size

-

Manufacturer guidance

Available in standard sizes ranging from 250 x 250 mm up to 1000 x 1000 mm, consult manufacturer and insert requirements.

Thickness

2 mm.

3 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Stainless steel

Recyclability

Recycle, re-purpose & re-use
Another key material that we use widely in the manufacture of several of our products is aluminium. Its corrosion-resistant properties, comparatively low weight, when compared to other metals used in construction, and its ability to be specified with a range of finishes make it a popular solution.

Coupled to this, is the fact that it is one of the world’s most recycled and recyclable materials. To underline this capability, it has been calculated that around 75% of all aluminium produced since the late 1800s is still in use today.

Also, the re-melting of aluminium requires only 5% of the energy needed for primary production, according to various bodies, including Council for Aluminium in Building (CAB), the International Aluminium Institute (AIA) and The Aluminium Federation (ALFED).

Manufacturer guidance

Manufactured from aluminium which is very easy to recycle.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

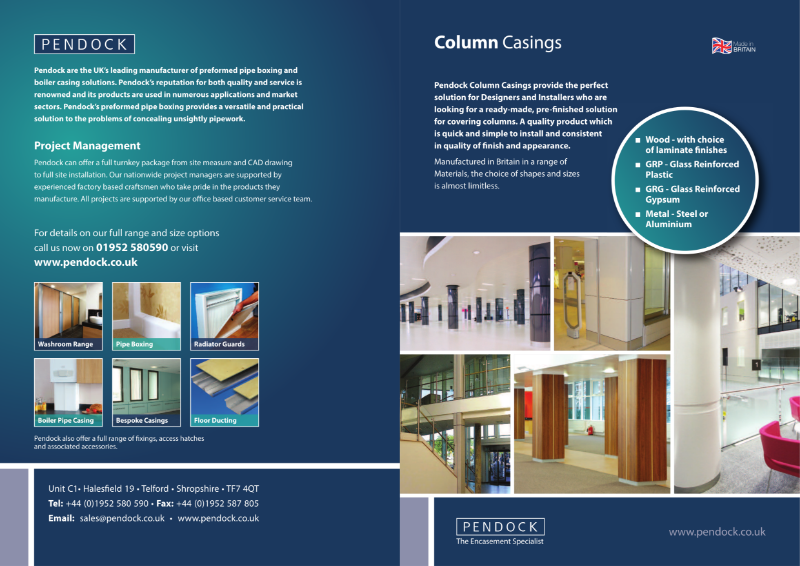

Pendock Radius Column Casing Brochure

Pendock Radius Column Casing Brochure

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure

Case studies

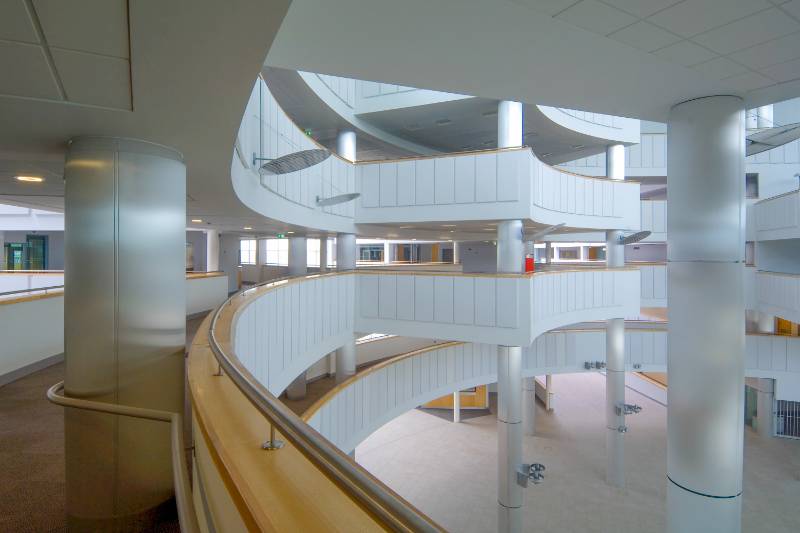

West Cheshire College rounds things off with metal column casings

West Cheshire College rounds things off with metal column casings

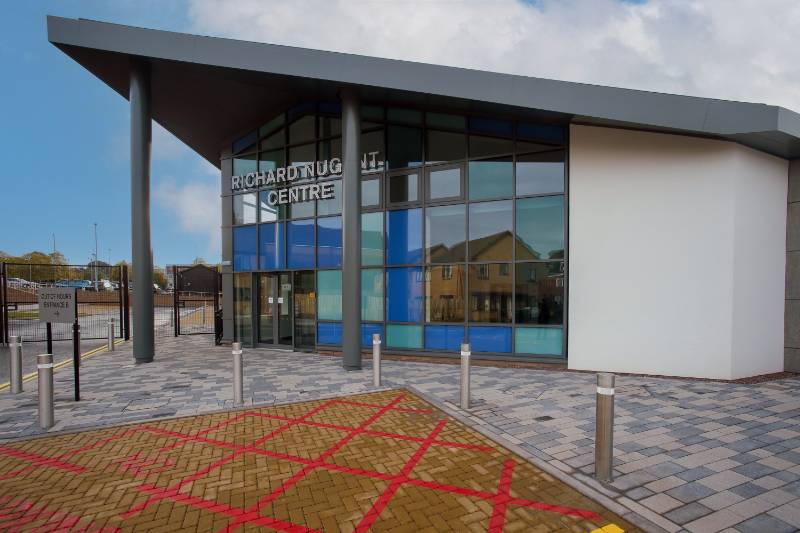

Elliptical metal column casings for Wednesbury health centre.

Elliptical metal column casings for Wednesbury health centre.

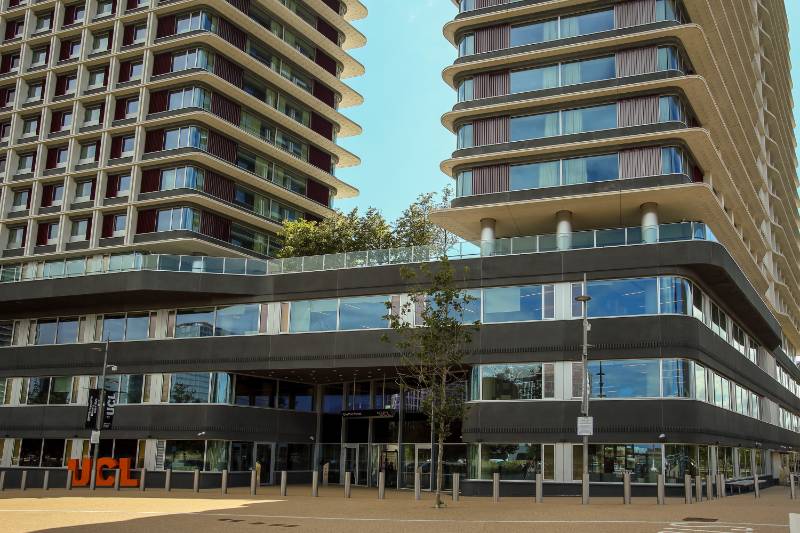

Metal column casings at UCL East Campus

Metal column casings at UCL East Campus

Metal column casings for Stevenage rail station car park

Metal column casings for Stevenage rail station car park
