Pendock Radius - GRP Column Casings - Glass Reinforced Plastic Column Casings

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Decorative column casings for interior and exterior concealment of structural steelwork and support columns.

Jump to:
+44 (0)1952 580 590 Website

Application

Concealing structural steelwork and support columns in exterior and interior column casing applications.

Description

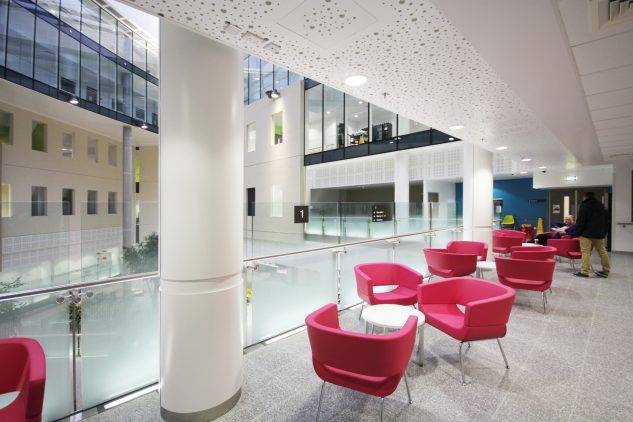

Pendock Radius circular GRP casings are a highly versatile and adaptable solution for concealing interior and exterior structural steelwork, where durability, weather resistance or a wide range of colour options are required as part of a project specification.


Available in diameters ranging from 200 mm up to 1000 mm, the casings are manufactured from highly durable and scuff-resistant glass-reinforced plastic with a standard material thickness of 4 mm. GRP casings can be manufactured up to 3000 mm in a single length and can be stacked to reach increased heights.


Whilst GRP casings are commonly specified as circles, as they are moulded, they can also be manufactured to specific dimensions and shapes, such as triangular, elliptical and ‘aerofoil’ sections, to meet the exact requirements of individual projects.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Multiple Gelcoat finish colours available.

Finish

Smooth

Gloss

Matt

Manufacturer guidance

Insert requirements. Finished in white as standard. Smooth white gloss paint/ matt finish for site-applied coating. RAL or BS colour options are available.


Material

Glass Reinforced Plastic (GRP)

Shape

Circle

Oval

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

Specification data - Preformed casings

Material

GRP.

Finish as delivered

Smooth white gloss.

Guidance for specification option:

Standard finish.

Matt finish.

Guidance for specification option:

Designed to accept a paint finish or other appropriate finish.

Colour

-

Manufacturer guidance

Insert requirements. Finished in white as standard. Smooth white gloss paint/ matt finish for site-applied coating. RAL or BS colour options are available.

Size

-

Manufacturer guidance

(Diameter). 150–600 mm in 50 mm increments, plus 700 mm. Insert requirements.

Thickness

4 mm.

Fire performance

Not required.

To BS 476-6 and 476-7, class 0 rating.

Guidance for specification option:

Structural elements need to be protected with a proprietary fire protection system.

Height

3000 mm (standard height).

Guidance for specification option:

Shorter or longer lengths can be produced, together with bespoke sizes.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold
