PhotonFoil - Multifoil Insulation

Verified by manufacturer 1 month ago

Thermic Technology Ltd Third party certifications:
  • CE Marking

    Certificate type

  • Statement of compliance

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Multi-foil insulation for loft conversions, timber frame walls and re-roofing projects.

Jump to:
+44 (0)1257 241084 Website

Application

Suitable for loft conversions, timber frame walls and re-roofing projects.

Description

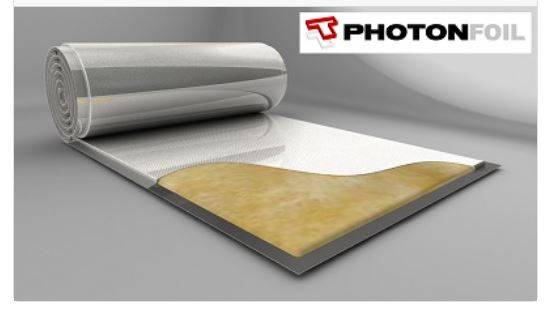

Constructed as an excellent vapour and air leakage barrier PhotonFoil has a high density glasswool core, encased in very low emissivity outer layers.


The use of high density glasswool at its core gives the product a number of benefits over traditional polyester based multi foil insulation:

  • A1 non-combustible core.
  • 50 mm flaps on all sides, avoiding double thickness under battens.
  • Easier to cut and screws without snagging.
  • Better λ90/90 thermal performance.


The product has been independently tested and certified to the latest European Standards by accredited European test houses and has achieved LABC (Local Authority Building Control) Registered Details.

General information

Color

Silver

Finish

Foil

Material

Glass mineral wool

Shape

Rectangle

Length

10000 mm

Width

1200 mm

Height

33 mm

Guidance for specification option:

Thickness.

Warranty description

Lifetime

Guidance for specification option:

For the lifetime of the building element

Manufacturer guidance

Product liability insurance

Uniclass

Pr_25_57_06_57 Multifoil blanket insulationPrimary

CAWS

P10/148 Multilayer blanket insulation fixed under or above rafters

P10/217 Insulation slabs fixed to backing wall

Specification data - Multifoil blanket insulation

Thermal performance

To EN 16012: 2.35 m²K/W.

Reflective facing

Foil.

Thickness

33 mm.

Fire performance

To BS EN 13984: Class E.

Watertightness

Class W1.

Water vapour resistance

CIBSE Guide A: Sd 800, 4000 MNs/g.

Emissivity

To EN 16012: 0.05

Weight

0.95 kg/m².

TensileStrength

Longitudinal: 320 N/50mm, Transverse: 200 N/50mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Third party certifications

CE Marking

CE Marking

PhotonFoil (standard) CE DoP

Statement of compliance

Statement of compliance

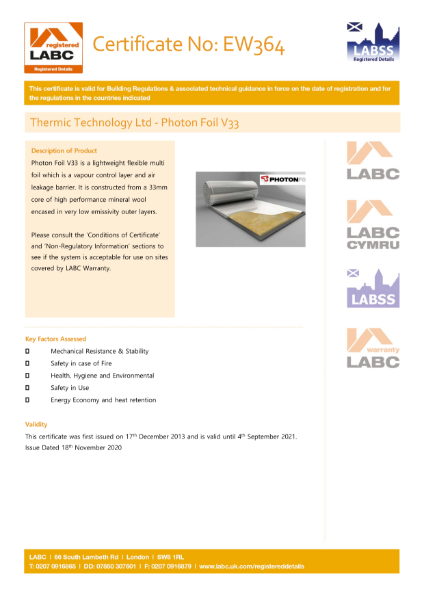

PhotonFoil (standard) LABC Registered

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

PhotonFoil (standard) UKCA DoC

ISO 9001 Quality Management

ISO 9001 Quality Management

Thermic Technology ISO 9001:2015

Literature

PhotonFoil (standard) Installation Instructions

PhotonFoil (standard) Installation Instructions

PhotonFoil (standard) Technical Datasheet

PhotonFoil (standard) Technical Datasheet
