PhotonWrap - Reflective Breather Membrane

Verified by manufacturer 1 month ago

Thermic Technology Ltd Third party certifications:
  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

High-performance reflective breather membrane.

Jump to:
+44 (0)1257 241084 Website

Application

Suitable for external walls.

Description

PhotonWrap is a high-performance reflective breather membrane specifically designed to enhance thermal performance of external walls whilst minimizing the risk of interstitial condensation . Its durable design gives enhanced protection of external walls during the construction process.


Features and benefits:

  • Reflective breather membrane, external fitting.
  • Also available as A1 non-combustible.
  • Excellent vapour permeability.
  • Low emissivity surface boosts thermal performance.
  • UV, heat and corrosion resistant.
  • Roll size 50 x 1.35 m.


The product has been independently tested and certified to the latest European Standards by accredited European test houses.

General information

Color

Silver

Black

Finish

Foil

Material

Polypropylene

Guidance for specification option:

Non-woven polpropylene faced with aluminium foil

Foil

Shape

Rectangle

Length

50000 mm

Width

1350 mm

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary
Pr_25_57_65_60 Plastics sheets

CAWS

H31/280 Breather membrane

H21/20 Breather membrane

H31/55 Breather membrane

H21/130 Breather membrane

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour-permeable sheets

Standard

To BS EN 13859-2.

Performance criteria

-

Water vapour properties

Water vapour resistance to BS EN ISO 12572; 0.025 MN.s/g.m, +/- 0.01 m. Sd 0.005.

Fire performance

Reaction to fire: To BS EN 13501-1, Class E.

Class (minimum)

W3.

Material

Non-woven polypropylene and aluminium foil composite.

Form

Non-woven.

Weight (minimum)

100 g/m².

Thickness (minimum)

0.2 mm.

Reflective face

Aluminium Foil. (micro-perforated).

Emissivity

To EN 16012: 0.05

Thermal resistance

To BS EN ISO 6946: 0.78 m²K/W.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Yes

Third party certifications

CE Marking

CE Marking

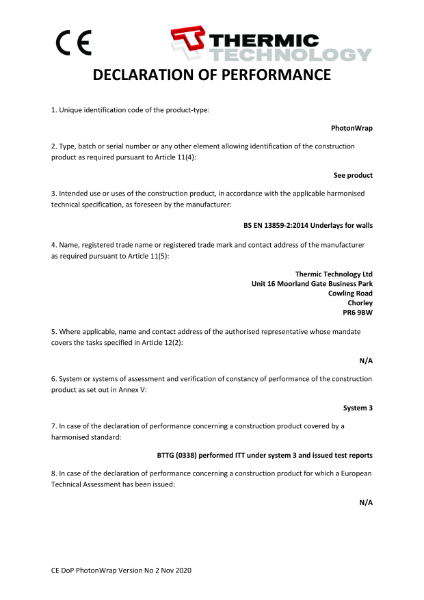

PhotonWrap (standard) CE DoP

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

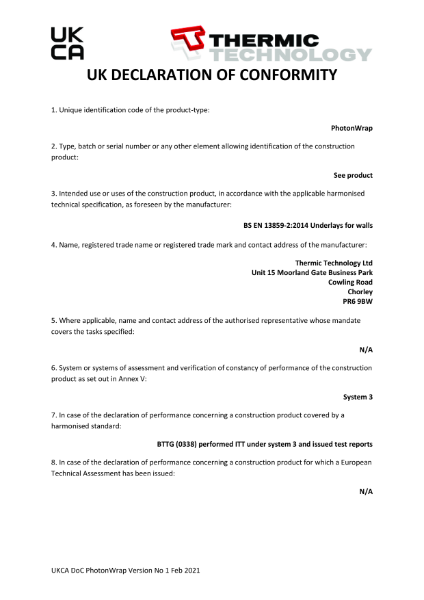

PhotonWrap (standard) UKCA DoC

ISO 9001 Quality Management

ISO 9001 Quality Management

Thermic Technology ISO 9001:2015

Literature

PhotonWrap (standard) Installation Instructions

PhotonWrap (standard) Installation Instructions

PhotonWrap (standard) Technical Datasheet

PhotonWrap (standard) Technical Datasheet
