Premcrete Hydroprufe 9000 - Gas Resistant Damp-Proof Membrane

Verified by manufacturer 7 months ago

Premcrete

Gas-resistant damp-proof membrane.

Jump to:
+44 (0) 23 80276166 Website

Application

HYDRORPUFE 9000 should be loose laid to the prepared sub-base, taking special care to ensure the membrane is not punctured during the installation phase. Adjacent sheets of membrane should be lapped by 150mm and the joints should be sealed using HYDROPRUFE HCR BUTYL TAPE, a double-sided tape which is placed 50mm from the edge of the sheet.

Description

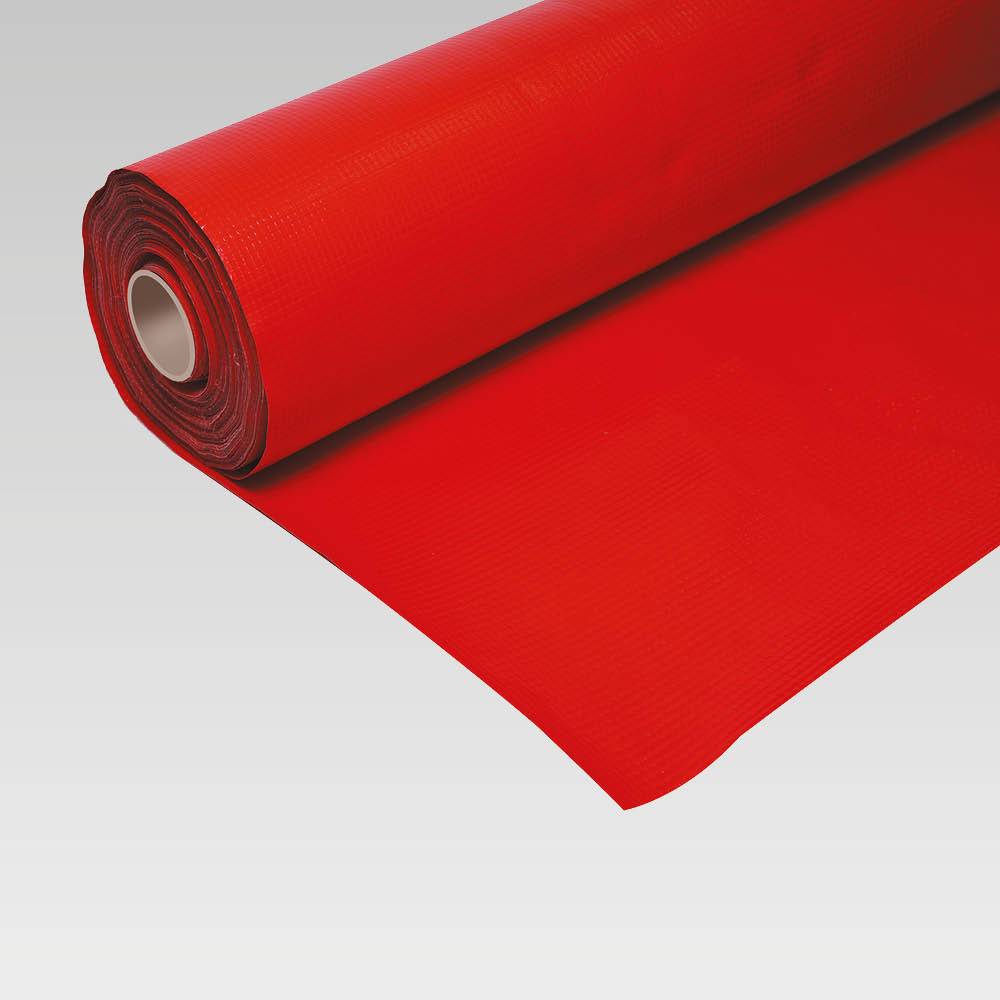

HYDROPRUFE 9000 is a virgin polyethylene, reinforced gas membrane, incorporating an aluminium core, that provides an effective barrier to ground gases including methane, carbon dioxide and radon for the lifetime of the structure to which it has been installed.

The polyester reinforcement component of the multi-layered membrane reduces the risk of tearing the membrane during the installation phase. HYDROPRUFE 9000 is suitable for welding using suitable hot air welding equipment or the laps may simply by taped jointed.

General information

Color

Red

Material

Aluminium

Polyethylene

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

D21/350 Gas-retardant membrane

D21/38 Gas-retardant membranes

J40/120 Loose-laid plastics or rubber sheet damp-proofing

J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes

J40/20 Loose-laid plastics or rubber sheet damp-proofing

J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/35 Loose-laid plastics or rubber gas-retardant membranes

Product range

Gas Membranes

Specification data - Plastics sheets

Material

Virgin polyethylene.

Purpose

Gas retardance.

Standard

BS 8485:2015.

Third-party certification

British Board of Agrément Certificate: 12/4957.

Performance characteristics

-

Tear resistance

MD: 250 N; CD: 255 N.

Elongation to break

MD: 12%; CD: 33%.

Resistant to underground gases

Methane:12 ml/M²/24Hr.

Form

Reinforced with an aluminium core.

Physical properties

-

Colour

Red.

Weight (minimum)

400 g/m².

Dimensions

-

Thickness (minimum)

0.76 mm.

Width (minimum)

2 m.

Roll length (minimum)

50 m.

Watertightness

Pass (to EN 1928 B).

Impact resistance

>100 mm.

Literature

Hydroprufe 9000 TDS

Hydroprufe 9000 TDS
