Rapidor Chill - Insulated Chiller Speed Door
Verified by manufacturer 5 months ago
Alcumus SafeContractor
Certificate type
ISO 9001 Quality Management
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type

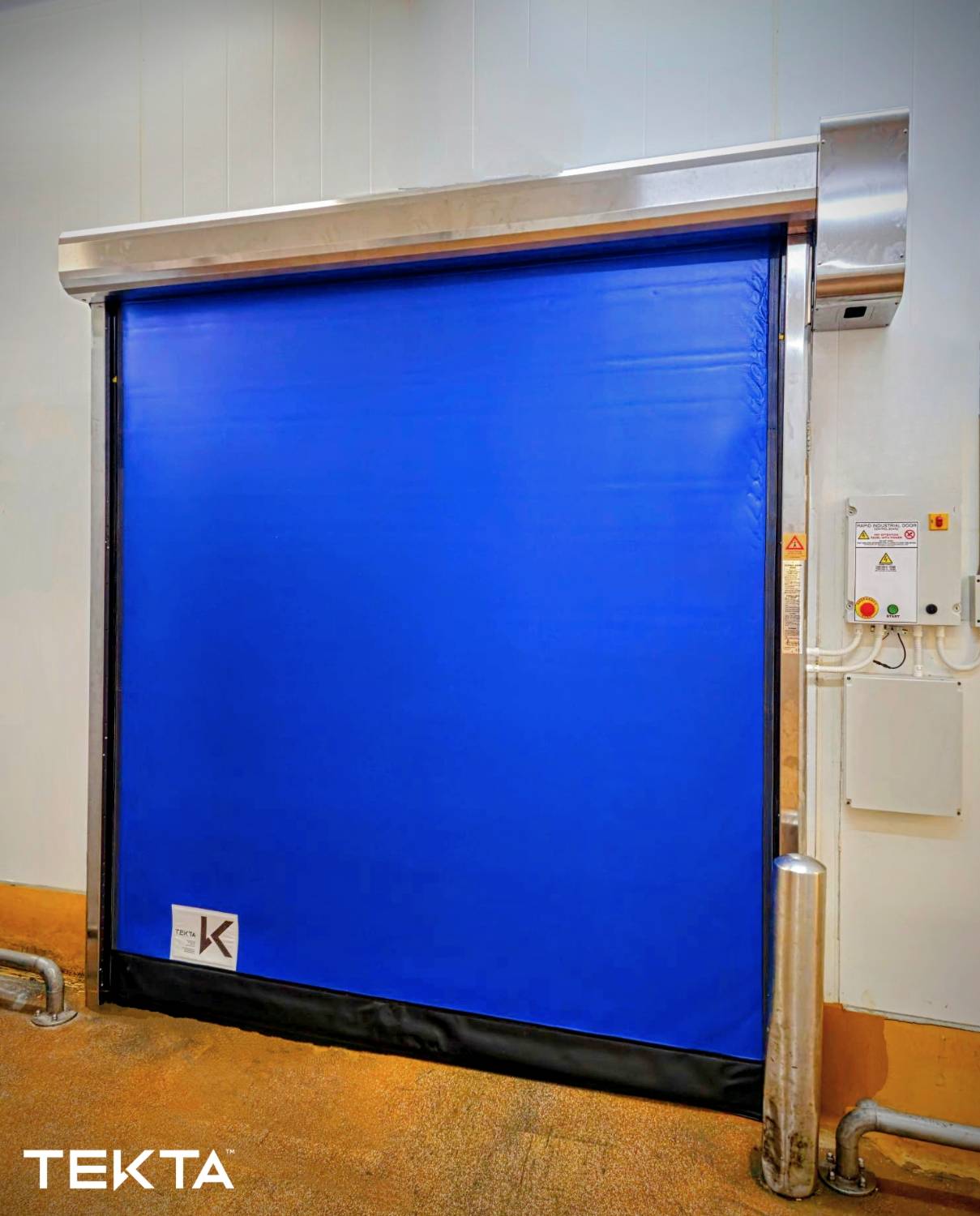

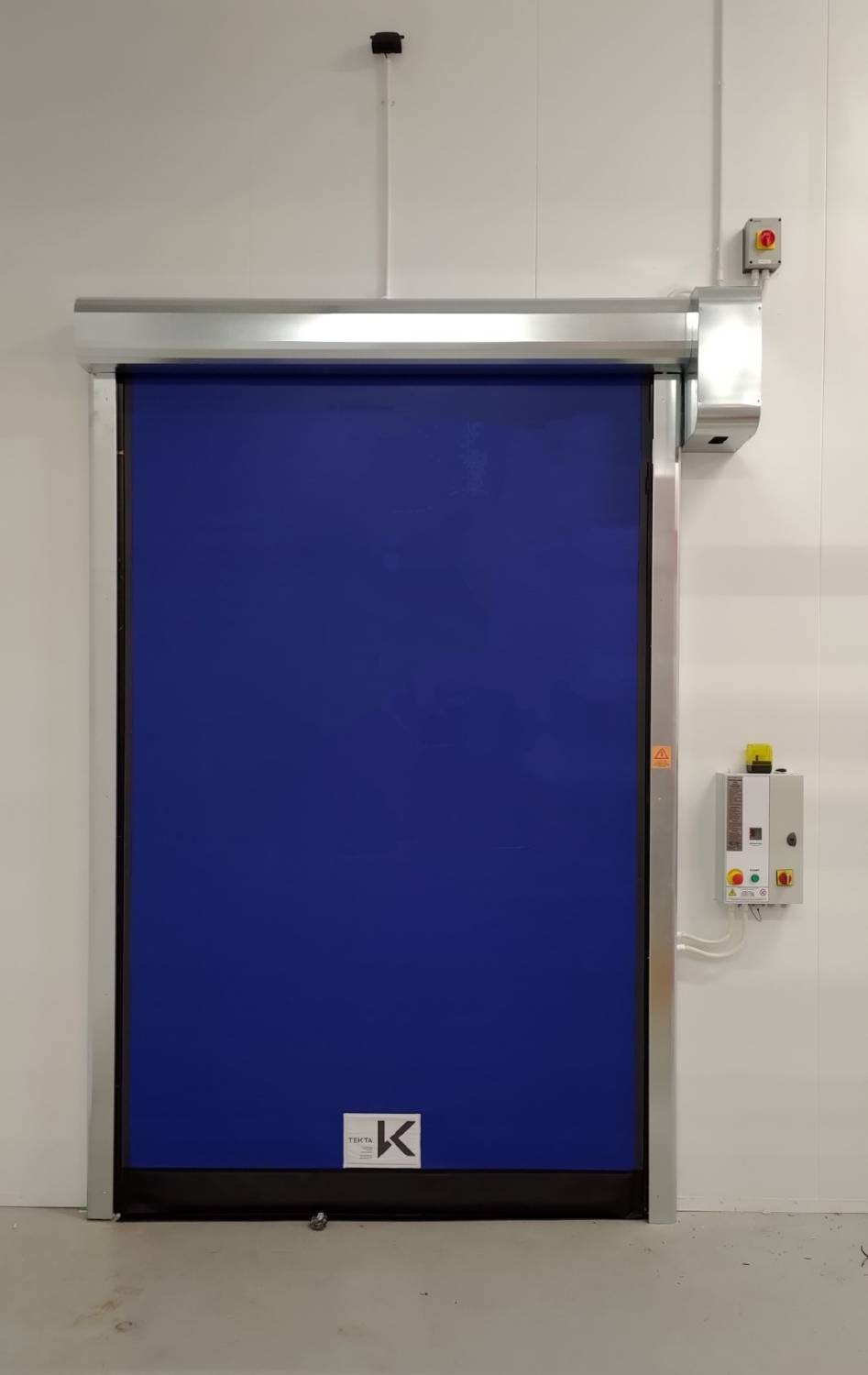

A high speed, self-repairing door, designed for high use doorways in chiller environments where a temperature barrier is required, without inhibiting operational effectiveness.
Application
- Food Production Facilities.
- Pharmaceutical Facilities.
- Chiller Environments
- Warehouse.
Description
This door offers a quiet and reliable operation and is available with opening speeds up to 2.5 m/s, maximising efficiency.
With it's zipper edge curtain, the door gives an excellent seal. This feature, combined with the door’s soft bottom edge enables the curtain to self-repair in the event of an impact, reducing maintenance and repair costs.
The door curtain is constructed from a 7 mm thick insulated curtain which offers superior insulation for chiller environments.
Available with a variety of safety features, such as; light curtains, traffic lights and audio warnings this range is tested to fully comply with the relevant European safety standards. The doors can be operated by; radar sensor, induction loop, remote control or push button and can be interlocked to suit specific requirements.
Features and benefits:
- Quiet and reliable operation.
- Opening speeds of up to 2.5 m/s.
- 7 mm insulated curtain.
- Hygienic seal.
General information
Color | Blue White Orange Red Yellow |
Finish | Galvanized Powder-coated |
Material | Steel PVC |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/570 High-speed doors |
Specification data - High-speed doorsets
Speed (minimum) | |
Opening | Maximum 2.5 m/s. |
Closing | 0.8 m/s. |
Format | Roll up. |
Arrangement | Face-fitted across opening. |
Curtain material | 7 mm thick insulated curtain, complete with a protective PVC layer. |
Frame and guides | |
Material | Galvanized Steel. |
Finish and colour | Galvanized.Powder coated. |
Operation | Push button.Remote control.Proximity sensor.Radar sensor.Pull cord.Induction loop. |
Curtain colour | RAL 1003. RAL 2004. RAL 3002. RAL 5002. RAL 7035. |
Security | Light curtain safety sensor and flashing Guidance for specification option: Standard. Audio warning siren. Guidance for specification option: Optional. Red/Green traffic lights. Guidance for specification option: Optional. Count-down traffic lights. Guidance for specification option: Optional. |
Standard | To EN 13241, EN 12604, EN 12426, EN 12425, EN 12424. |
Emergency release | Manual hand crank device. Battery backup device. |
Wind resistance | Up to class 4. |
Resistance to water penetration | Up to class 3. |
Air permeability | Class 1. |
Power supply | Three phase (415 V). Guidance for specification option: Standard. Single phase (240 V). Guidance for specification option: Optional. Available for doors up to 3000 x 3000 mm. |
Guides | Two part steel guide with a self-lubricating polyethylene runner. |
Size: | Manufacturer guidanceSize (w x h): 4500 x 4500 mm, maximum. |
Vision panel | None. 500 mm high clear PVC vision windows. |
Sustainability data
Material | Steel PVC |
Third party certifications
Alcumus SafeContractor
Safe Contractor Certificate
ISO 9001 Quality Management
ISO 9001
Constructionline Gold
Constructionline Gold Certificate
CHAS
CHAS Certificate
Literature

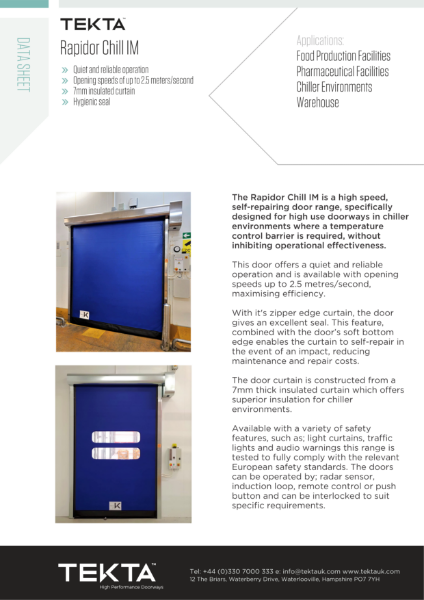

Rapidor Chill IM Datasheet
