Rapidor Food - Self-repairing Food Grade Speed Door

Verified by manufacturer 3 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

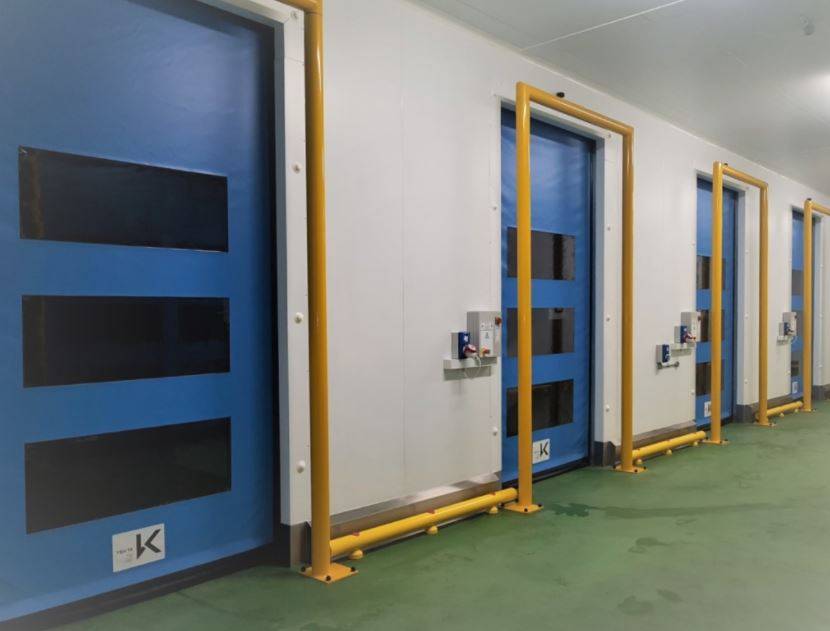

The Rapidor Food is a hygiene speed door range, specifically designed to meet and exceed the rigorous requirements of food processing environments.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Food production facilities.
  • Meat processing.
  • Bakeries.
  • Dairy/ beverage production.
  • Fruit/ vegetable processing.

Description

The door offers a quiet and reliable operation and is available with opening speeds up to 2.5 m/s, maximizing efficiency. With its zipper edge curtain, the door gives an excellent seal. This feature, combined with the door’s soft bottom edge enables the curtain to self-repair in the event of an impact, reducing maintenance and repair costs.


Specifically designed for use in areas where food production machinery is washed down, the door is resistant to water over-spray. The door curtain rolls up into a compact headbox which is constructed with a 15° angle to prevent any build up of water or debris on the top of the door. The door frame is constructed from stainless steel in order to prevent corrosion.


Available with a variety of safety features, such as; light curtains, traffic lights and audio warnings this range is tested to fully comply with the relevant European safety standards. The doors can be operated by; radar sensor, induction loop, remote control or push button and can be interlocked to suit specific requirements.


Features and benefits:

  • Hygienic construction, designed for food facilities.
  • Resistant to washdown overspray.
  • Self-repairing.
  • Hygienic seal.

General information

Color

Blue

Brown

Grey

Green

Ivory

Show more

Manufacturer guidance

Curtain colour.

Finish

Galvanized

Powder-coated

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Rapidor Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

2.5 m/s (maximum).

Closing

0.8 m/s (maximum).

Format

Rapid roll up.

Frame and guides

-

Material

Stainless Steel, grade 1.4301 (441/304).

Stainless Steel, grade 1.4401 (316).

Guidance for specification option:

Optional.

Manufacturer guidance

Two part steel guide with a self-lubricating polyethylene

runner.

Finish and colour

As material.

Operation

Push button.

Remote control.

Guidance for specification option:

Optional.

Proximity sensor.

Guidance for specification option:

Optional.

Radar sensor.

Guidance for specification option:

Optional.

Pull cord.

Guidance for specification option:

Optional.

Induction loop.

Guidance for specification option:

Optional.

Standards

To EN 13241, EN 12604, EN 12426, Class 1, EN 12425, Class 1, EN 12424, up to Class 4.

Power supply

240 V single phase.

Guidance for specification option:

Single phase available for doors up to 3000 x 3000 mm.

415 V three phase.

Manufacturer guidance

Inverter system – 50/ 60 Hz with Digital Encoder.

Safety

Light curtain safety sensor and flashing warning beacon.

Audio warning siren.

Guidance for specification option:

Optional.

Red/Green traffic lights.

Guidance for specification option:

Optional.

Count-down traffic lights.

Guidance for specification option:

Optional.

Air permeability

To EN 12426-7, Class 1.

Resistance to water penetration

To EN 12425, Class 1.

Dimensions

-

Manufacturer guidance

Size (w x h): 4500 x 4500 mm, maximum. Insert requirements.

Emergency release

Manual hand crank device.

Guidance for specification option:

Standard.

Battery backup device.

Guidance for specification option:

Optional.

Curtain colour

RAL 9010.

RAL 1015.

RAL 1003.

RAL 2004.

RAL 7016.

Show more

Vision panels

None.

500 mm high rectangular vision window.

Wind loads

Up to class 4.

Sustainability data

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

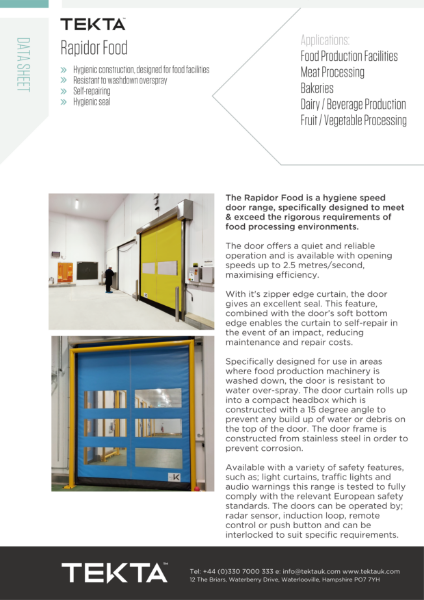

Rapidor Food Datasheet

Rapidor Food Datasheet
