Rapidor Sprint - Bi-Parting Speed Door
Verified by manufacturer 5 months ago
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type
Rapidor Sprint is a unique speed door which rolls horizontally to one or both sides of the doorway. Available with a Class 2 wind rating.
Application
- Factories and warehouses.
- Temperature controlled facilities.
- Automotive and aerospace.
- Atex rated areas.
- Wash-down areas.
- High use openings.
Description

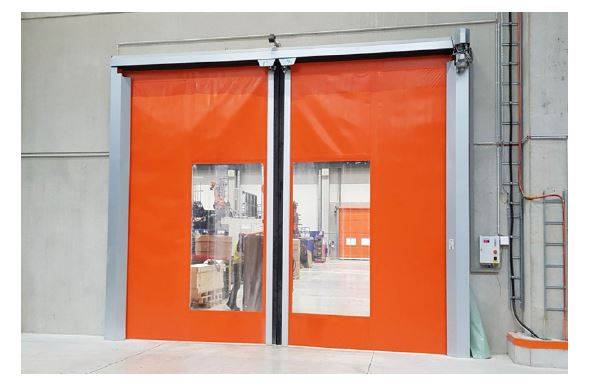

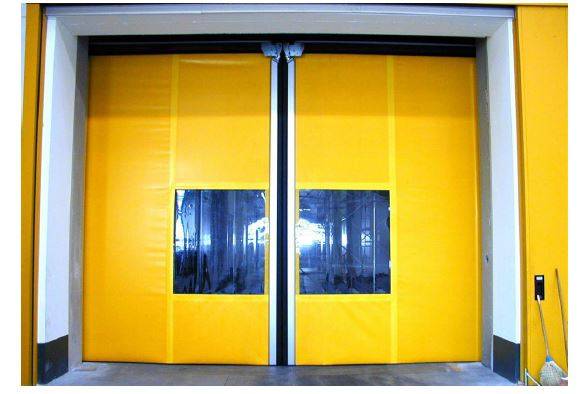

Rapidor Sprint is constructed with a self-supporting galvanized steel frame which requires less than 300 mm of headroom. The antistatic PVC door curtain can be configured to open to one side of the doorway, or to bi-part from the centre of the doorway for larger openings. There are a choice of five standard colours and the option of eye-level or full-height transparent vision windows. The door can also be supplied with an optional anti-crash system designed to swing away on impact, minimizing ongoing maintenance costs.
Power supply can be 230 or 400 V and a frequency inverter motor provides smooth and reliable operation and speeds of up to 3000 mm per second.
The Rapidor Sprint door is adaptable to specialist requirements, for example, the door frame can be constructed from stainless steel making it suitable for food and pharmaceutical environments with the option of full wash-down.
A variety of safety features are available, such as; photo beams, safety edges, light curtains and traffic lights to comply with all European standards. The doors can be operated by; radar sensor, induction loop, remote control or push button and can be interlocked to suit specific requirements.
Features and benefits:
- Extremely fast operation.
- Maximum productivity.
- Bi-Parting operation reduces damage.
- Large vision windows for safety.
- Non-drip design for better hygiene.
- Springless, low-maintenance door.
General information
Color | Blue Grey Orange Red Yellow Manufacturer guidanceCurtain colour. |
Finish | Galvanized Powder-coated |
Material | Stainless steel Steel Polyvinyl chloride (PVC) Polyethylene |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/570 High-speed doors |
Product range |
Specification data - High-speed doorsets
Speed (minimum) | |
Opening | 3.0 m/s (maximum). |
Closing | 1.0 m/s (maximum). |
Format | Rapid bi-parting. |
Arrangement | Face-fitted across opening. |
Curtain material | PVC, 1.5 mm antistatic, B2 Flame Retardant.PVC, 1 mm printed curtain.Guidance for specification option: Up to width 2.9 m. |
Frame and guides | |
Material | Galvanized steel.Stainless steel. |
Finish and colour | Powder coated.As material. |
Operation | Push button.Guidance for specification option: Standard. Key switch.Guidance for specification option: Optional. Remote control.Guidance for specification option: Optional. Motion sensor.Guidance for specification option: Optional. Magnetic floor loops.Guidance for specification option: Optional. TOF sensor.Guidance for specification option: Optional. Pull cord.Guidance for specification option: Optional. Contactless switch.Guidance for specification option: Optional. |
Accessories | Not required.Mechanical or electronic locking.Cut out for hanging rails or conveyors.ATEX Rated for areas with explosion risk.Interlocking.Anti-crash system. |
Standards | To BS EN 13241. |
Control panel | Microprocessor control with main switch and integrated frequency inverter. Complete with menu view and error display. Emergency stop and three way push button integrated in IP54 cabinet. |
Power supply | 230 V single phase, L, N, PE (16 A maximum). Guidance for specification option: Standard. 415 V three phase. Guidance for specification option: Optional. |
Safety | Self-monitoring electrical safety contact edge and photocell. Guidance for specification option: As standard. Light curtain. Guidance for specification option: Optional. Flashing light. Guidance for specification option: Optional. Second light curtain. Guidance for specification option: Optional. Traffic light. Guidance for specification option: Optional. |
Dimensions | Manufacturer guidanceSize ( w x h): 6000 x 8000 mm. Insert requirements. Special sizes may be available on request. |
Battery back-up | Not required. UPS battery. |
Emergency release | Open by hand. Guidance for specification option: Standard. Automatic opening to provide 2000 mm wide clear passage (via UPS). Guidance for specification option: Optional. |
Curtain colour | RAL 5010 Gentian Blue. Guidance for specification option: Standard. RAL 1018 Zinc Yellow. Guidance for specification option: Optional. RAL 2004 Pure Orange. Guidance for specification option: Optional. RAL 3002 Carmine Red. Guidance for specification option: Optional. RAL 7038 Agate Grey. Guidance for specification option: Optional. |
Wind resistance | To EN 12424, Class 2. |
Motor cover | None. Guidance for specification option: Standard. Hood cover and/ or motor cover, galvanized steel. Guidance for specification option: Insert requirement. Hood cover and/ or motor cover, stainless steel. Guidance for specification option: Insert requirement. |
Clearance width | 416 – 25 mm. Guidance for specification option: Insert requirement. |
RequiredHeadroom | 255 – 281 mm. Guidance for specification option: Insert requirement. |
Motor | Frequency inverter motor, front-mounted, left handed. Frequency inverter motor, front-mounted, right handed. |
Sustainability data
Material | Stainless steel Steel Polyvinyl chloride (PVC) Polyethylene |
Third party certifications
CHAS
CHAS Certificate
Constructionline Gold
Constructionline Gold Certificate
ISO 9001 Quality Management
ISO 9001
Alcumus SafeContractor
Safe Contractor Certificate
Literature

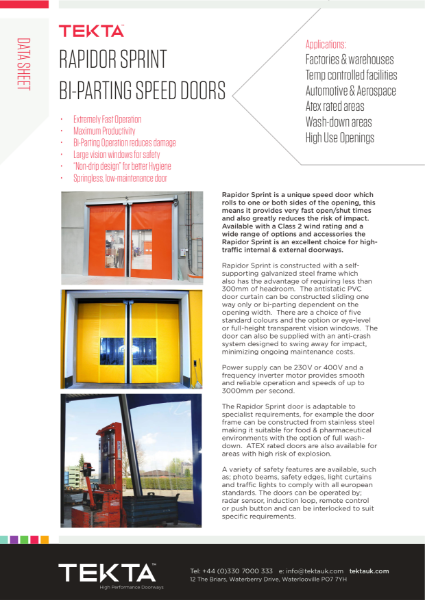

Rapidor Sprint Datasheet
