Rapidor Pharma - Clean Room Speed Door For Hygiene and Pressure Control

Verified by manufacturer 7 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

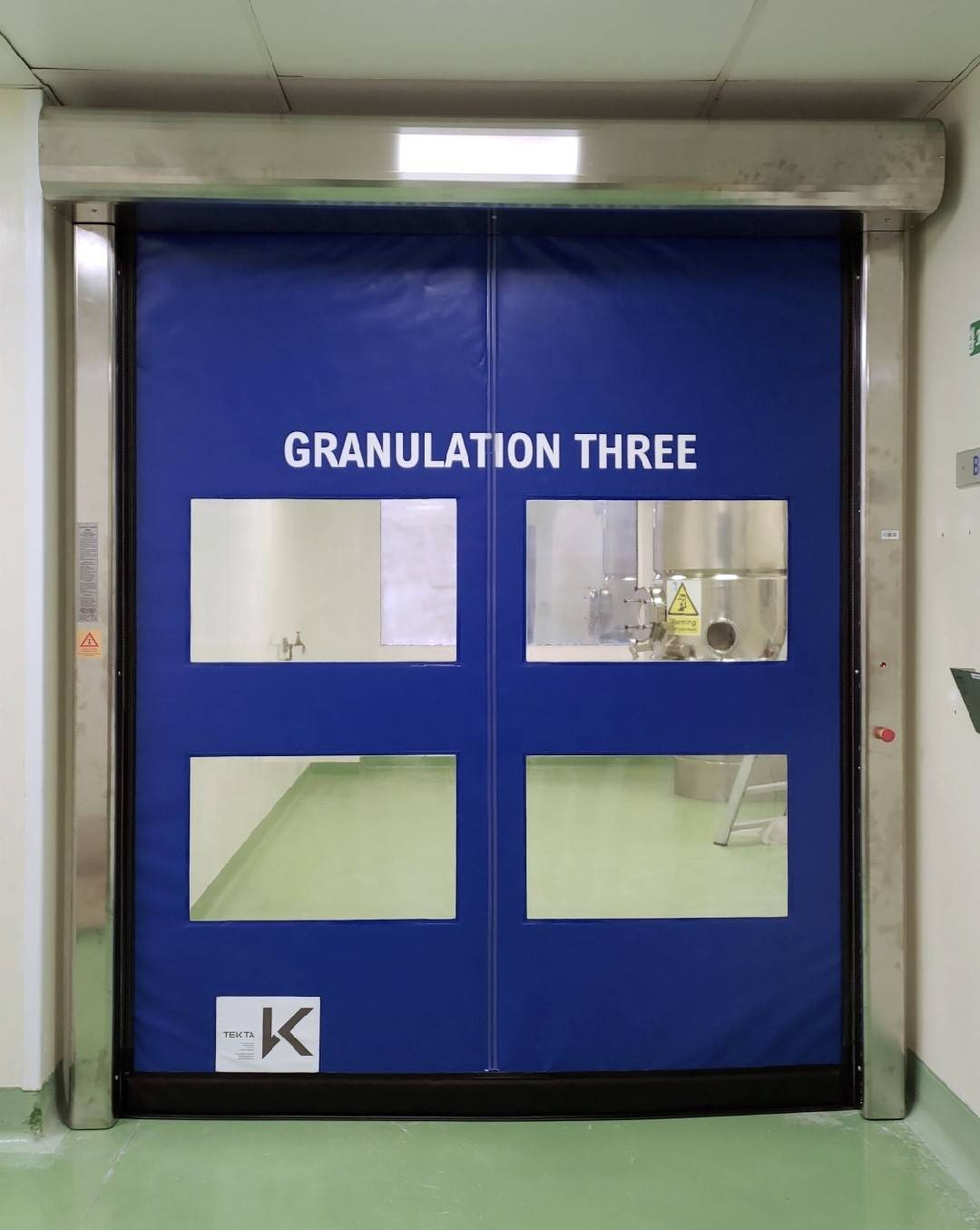

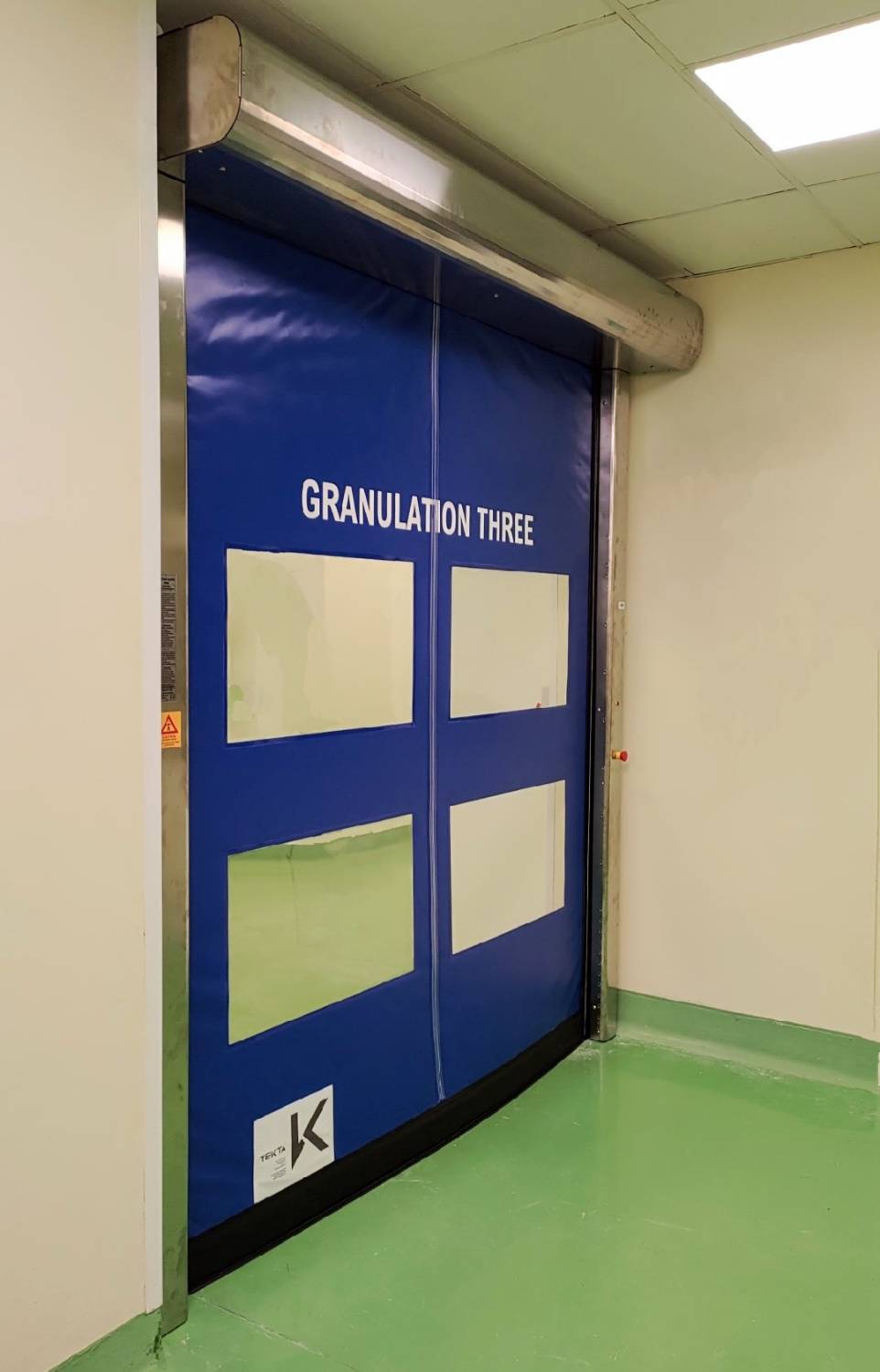

A specialist high-speed door designed for cleanrooms and other controlled environments where hygienic design and low air permeability are required.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Pharmaceutical.
  • Laboratories.
  • Controlled environments.
  • Clean rooms.

Description

The Rapidor Pharma is tested by Fraunhofer for suitability in cleanrooms up to ISO5 specification. This makes it a very popular choice for cleanrooms where segregation is required for hygiene or pressure control. In order to meet clean room standards the door can be supplied with a grade 1.4301 or 1.4401 stainless steel frame. Alternatively, a powder-coated finish to a range of colours is available.



For maximum hygienic performance, the motor is integrated into the top hood of the door, giving a neat, compact appearance. The doors are tested at 50 Pa for air permeability and are designed to open and close at pressure differences of less than 50 Pa. From the frame side, the door will perform to Class 3 as defined by EN 12425 and from the opposite side it will conform to Class 2. Additionally, a patented HRS magnetic seal can be added to the door to offer Class 5 air permeability.



The industry-leading door-opening speed of 2.5 m/s enables maximum productivity and improves hygiene. All doors have an innovative self-repairing system which allows the curtain to automatically re-insert itself following an impact, helping to greatly reduce ongoing costs.


Features and benefits:

  • Fraunhofer ISO5 Certification.
  • Tested at 50 Pa with Class 5 air permeability.
  • Fast, vertical, efficient action.
  • Suitable for high-usage areas.

General information

Color

Blue

Brown

Grey

Green

Ivory

Show more

Manufacturer guidance

Curtain colour.

Finish

Galvanized

Powder-coated

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Manufacturer guidance

Guaranteed for 1 000 000 cycles.

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Rapidor Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

2.5 m/s (maximum).

Closing

0.8 m/s.

Format

Rapid roll up.

Curtain material

PVC.

Frame and guides

-

Material

Stainless steel.

Powder-coated steel.

Manufacturer guidance

Two-part steel guide with a self-lubricating polyethylene runner.

Finish and colour

RAL 9010.

RAL 1015.

RAL 1003.

RAL 2004.

RAL 3002.

RAL 6026.

RAL 7042.

RAL 7037.

RAL 7035.

RAL 5012.

RAL 5002.

Stainless steel.

Operation

Push button.

Remote control.

Proximity sensor.

Radar sensor.

Pull cord.

Induction loop.

Standards

To EN 12425 Class 1, EN 12424 Class 3, EN 12426 Class 5, EN 12604, EN 12453 and EN 12604.

Power supply

230 V single phase inverter (16 A maximum).

Guidance for specification option:

Only for doors up to 9 m².

400 V three phase inverter (10 A maximum).

Safety

Light curtain safety sensor and flashing warning beacon.

Audio warning siren.

Red/Green traffic lights.

Count-down traffic lights.

Air permeability

Class 2.

Guidance for specification option:

Standard.

Class 5.

Guidance for specification option:

Optional.

ThermalTransmittance

To EN 12428, 6.02 W/m²K.

Resistance to water penetration

To EN 12425, Class 1.

Dimensions

-

Manufacturer guidance

Size (w x h): 4500 x 4500 mm (maximum). Insert requirements.

Emergency release

Manual hand crank device.

Battery backup device.

Curtain colour

RAL 9010.

RAL 1015.

RAL 1003.

RAL 2004.

RAL 3002.

Show more

Sustainability data

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

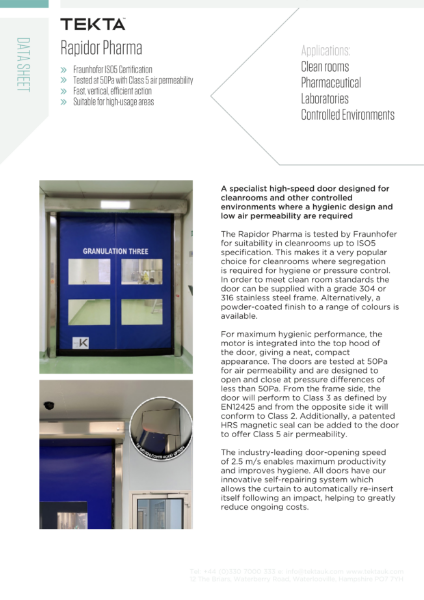

Rapidor Pharma Datasheet
