Riga Foot - Specialist Veneer Plywood
Verified by manufacturer today
6.5 mm
6.5 mm
EPD
Certificate type
PEFC
Certificate type
A durable panel for demanding flooring applications; it may be used anywhere high wear resistance, anti-slip properties and decorative appearance are required.
Application
Road transport
- Light and heavy commercial vehicles;
- Light and heavy trailers;
- Buses.
Light building
- Stage systems and industrial flooring;
- Joinery, furniture and shopfittings;
- Outdoor solutions.
Heavy building
- Scaffolding.
Description

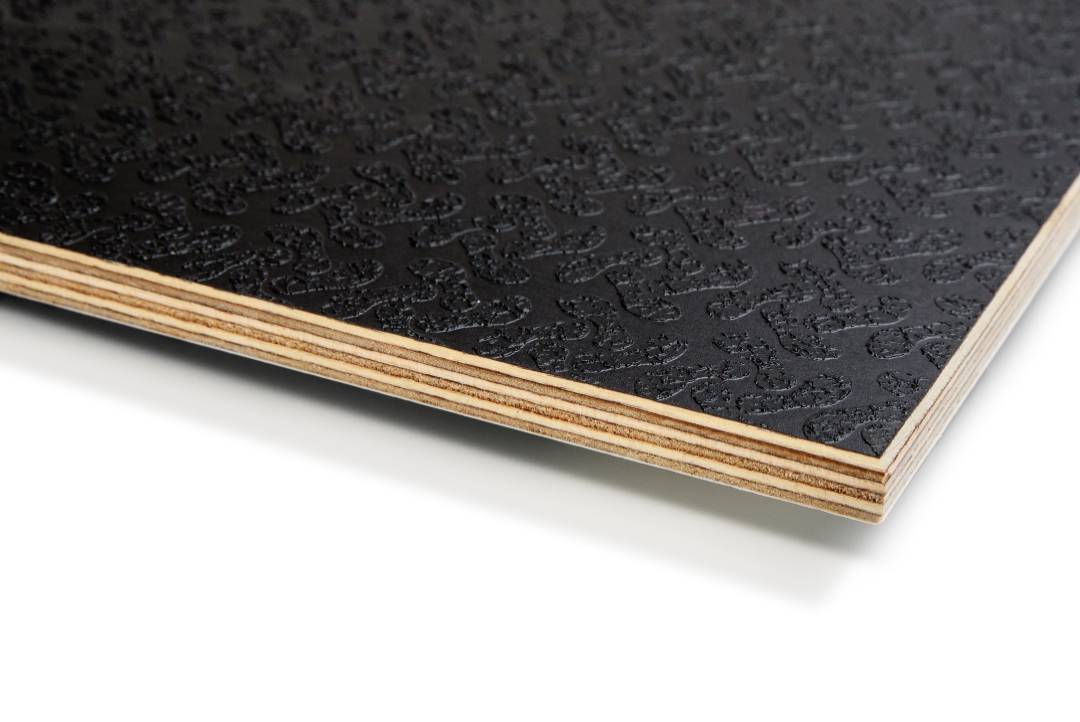

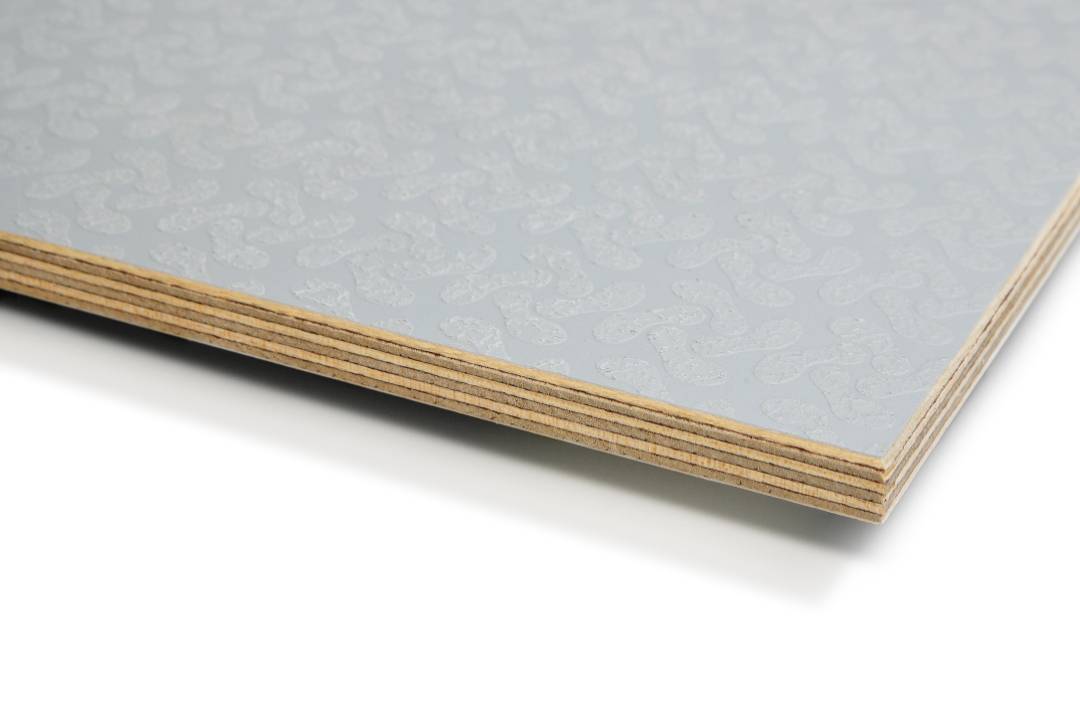

Riga Foot is a birch throughout plywood, overlaid featuring a hard wearing film with a distinctive footprint pattern, combining both functionality and an aesthetic visual appearance.
Features and benefits:
- Abrasive surface ensures underfoot safety and a safe surface for freight transport.
- Weather resistant gluing and water resistant surface.
- Excellent strength-to-weight ratio.
- Durable and heavy-duty.
- Surface is resistant to commonly used chemicals and surface impact, easy to clean.
- Aesthetic and visually attractive.
- Sustainable product with long life span.
Further processing
Panels can be further processed according to customer's specification with cut-to-size, CNC, drilling, milling, jointing, edge machining, assembling in sets.
Surface properties
The overlay improves panel resistance against mechanical damage and wear, whilst providing a decorative appearance. The surface resists abrasion, and commonly used chemicals, and is weather and moisture resistant. The reverse side is smooth, overlaid with resin impregnated film.
General information
Color | Black Blue Brown Green Grey |
Finish | Film |
Material | Birch plywood |
Shape | Rectangle Square |
Length | 1220 mm 1250 mm 1500 mm 1525 mm 2440 mm |
Width | 1220 mm 1250 mm 2440 mm 2500 mm 2745 mm |
Height | 6.5 mm 9 mm 12 mm 15 mm 18 mm |
Uniclass | |
CAWS | K11/37 Plywood flooring K11/315 Plywood flooring |
Specification data - Specialist veneer plywoods
Standards | BS EN 13986. |
Third-party certification | EPD, FSC, PEFC. |
Characteristics | Highly wear-resistant and anti-slip. |
Material | |
Type | Birch plywood. |
Face veneer | European birch, overlaid with resin impregnated film with footprint pattern |
Balancing veneer | European birch, overlaid with smooth resin impregnated film. |
Bonding quality | To BS EN 314-2, Class 3.Guidance for specification option: As standard. To BS EN 314-2, Class 1 and BS 1203, H1.Manufacturer guidanceRiga Wood birch plywood is glued with weather and boil-proof phenol formaldehyde or lignin phenol formaldehyde resin adhesive according to EN 314 Class 3 Exterior. Bonding with moisture resistant low emission melamine-urea formaldehyde resin according to EN 314 Class 1 and BS 1203 H1 possible. |
VOC emissions | To EN 13986, Class E1 and complies with EPA TSCA Title VI and CARB Phase 2. |
Number of plies | 5. |
Nominal thickness | 6.5 mm. |
Sheet size | 1220 x 2440 mm.1220 x 2500 mm.1220 x 2745 mm.1220 x 2750 mm.1220 x 3000 mm.1220 x 3050 mm.1250 x 2440 mm.1250 x 2500 mm.1250 x 2745 mm.1250 x 2750 mm.1250 x 3000 mm.1250 x 3050 mm.1500 x 2440 mm.1500 x 2500 mm.1500 x 2745 mm.1500 x 2750 mm.1500 x 3000 mm.1500 x 3050 mm.1525 x 2440 mm.1525 x 2500 mm.1525 x 2745 mm.1525 x 2750 mm.1525 x 3000 mm.1525 x 3050 mm.2440 x 1220 mm.2440 x 1250 mm.2500 x 1220 mm.2500 x 1250 mm.Bespoke. |
Edges | Square. |
Colour/ Finish | Dark brown. Black. Green. Guidance for specification option: BB grade veneer under this translucent film. Light brown. Yellow. Manufacturer guidanceFilm weights from 120 g/m2 to 660 g/m2. The edges are sealed with colour matched moisture resistant paint. Other colours are available upon request. |
Wear resistance | Rolling test to EN 1818: More than 10 000 cycles. Guidance for specification option: Dark brown 220 g/m2 up to 900 revolutions. Special wear resistant film 350 g/m2 up to 10 000 revolutions. Manufacturer guidanceDepending on the coating. Rolling wear is tested with a load of 300 kg. |
Slip resistance | To DIN 51130, R10. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: Formaldehyde. |
Country of material origin | Europe Guidance for specification option: Grown, harvested and processed in the European Union. |
Country of product manufacture | Europe Guidance for specification option: Grown, harvested and processed in the European Union. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | -750 kg CO₂ eq/unit |
Recyclability | 100% Guidance for specification option: Plywood can be reused endlessly depending on previous use conditions but it cannot be recycled as material for producing of new plywood. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
Literature

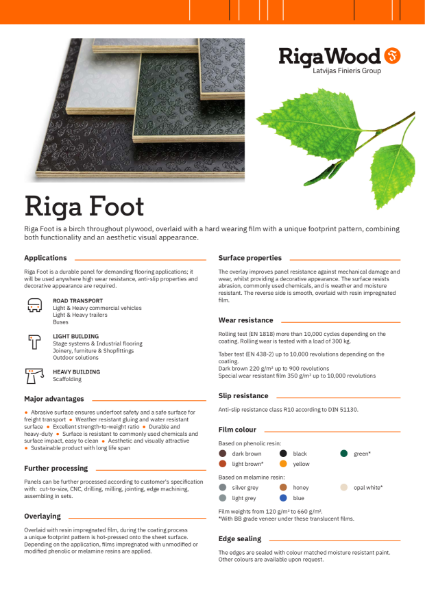

Riga Foot - Datasheet - Riga Wood
Plywood Handbook 2022 - Riga Wood
Plywood Processing Options - Riga Wood
