Sanidor Glide - Sliding hygienic doors

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

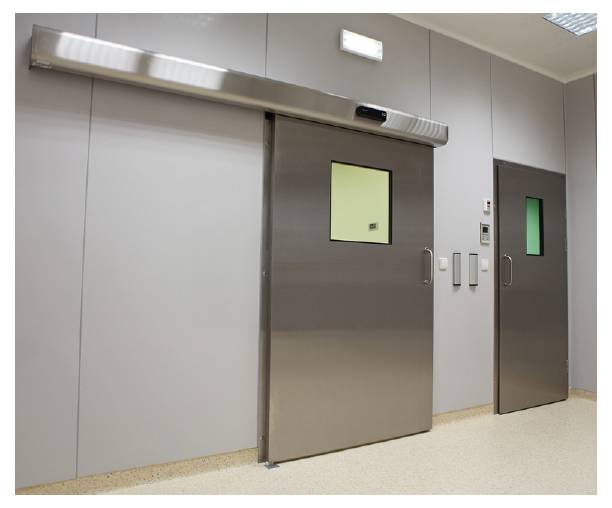

The Sanidor Glide door is designed to offer exceptional hygiene performance and durability for hygiene-critical areas.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Laboratories.
  • Clean rooms.
  • Pharmaceutical factories.
  • Medical environments.
  • Hospitals.

Description

The door panel is a unique monobloc design, constructed from a high-grade steel envelope and injected with a high-density foam core. This offers exceptional rigidity and insulation. All joints are fully welded to prevent ingress of bacteria or fluids inside the leaf.


The frames are typically fabricated from stainless steel and can be constructed with a wrap-around design to create a hygienic reveal detail. Available with one or two sliding leaves, these doors can be finished in brushed stainless steel or a variety of paint colours.


Typically installed as a manually operated door, the opening/ closing action is smooth and easy to operate.

Also available as a fully automated system, with a variety of operation methods the door is designed to suit a variety of applications. Another popular addition is a variety of impact protection plates, including stainless steel kick plates, to prevent damage to the door leaves. A variety of sizes and shapes of flush-glazed vision windows are also available.


Features and benefits:

  • Robust construction for high-use doorways.
  • Hygienic door construction.
  • Range of finishes available.
  • Effective hygiene seal.

General information

Color

Silver

Finish

Coated

Smooth

Brushed

Material

Steel

Stainless steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/60 Doors

L20/480 Doorsets

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Arrangement

Top-hung.

Double lead (bi-parting).

Track system

Manufacturer's standard.

Door leaves

-

Construction

Fully welded (37 mm thick) steel leaf, injected with a CFC-free polyurethane foam.

Finish and colour

1.4301 (304) grade stainless steel, smooth.

1.4301 (304) grade stainless steel, brushed.

1.4401 (316) grade stainless steel.

Painted, RAL colour.

Guidance for specification option:

Painted to standard range of RAL colours.

Zinc-coated steel.

Operation

Manual.

Automatic, 230 V single phase.

Automatic, 415 V three phase.

Hardware

Stainless steel pull handles on outside and flush handle on inside

Guidance for specification option:

Standard.

Stainless steel kickplates.

Guidance for specification option:

Optional.

Vision panels

Flush pharma style window 500 mm diameter circular and glazed with double safety glass.

400 mm diameter circular.

Rectangular 250 x 500 mm.

Rectangular 400 x 600 mm.

Rectangular 450 x 300 mm.

Manufacturer guidance

Special sizes on available request. Consult manufacturer for details and insert requirements.

Activation

Pull handle.

Guidance for specification option:

Manual doors.

Push button.

Guidance for specification option:

Electric doors.

Elbow activators.

Guidance for specification option:

Electric doors.

Motion sensors.

Guidance for specification option:

Electric doors.

Knee switches.

Guidance for specification option:

Electric doors.

Show more

Seal

Silicone gasket seal.

Material/ Finish

Stainless steel.

Standard

To BS EN 13241.

Manufacturer guidance

Automated doors have safety devices to comply with European regulations.

ThermalTransmittance

0.575 W/m²K.

Sustainability data

Material

Steel

Stainless steel

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

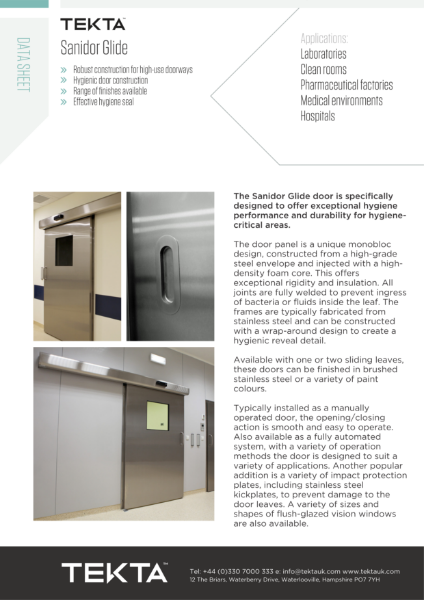

Sanidor Glide Datasheet

Sanidor Glide Datasheet
