Thermidor Freeze SL - Insulated Sliding Monobloc Freezer Doors

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

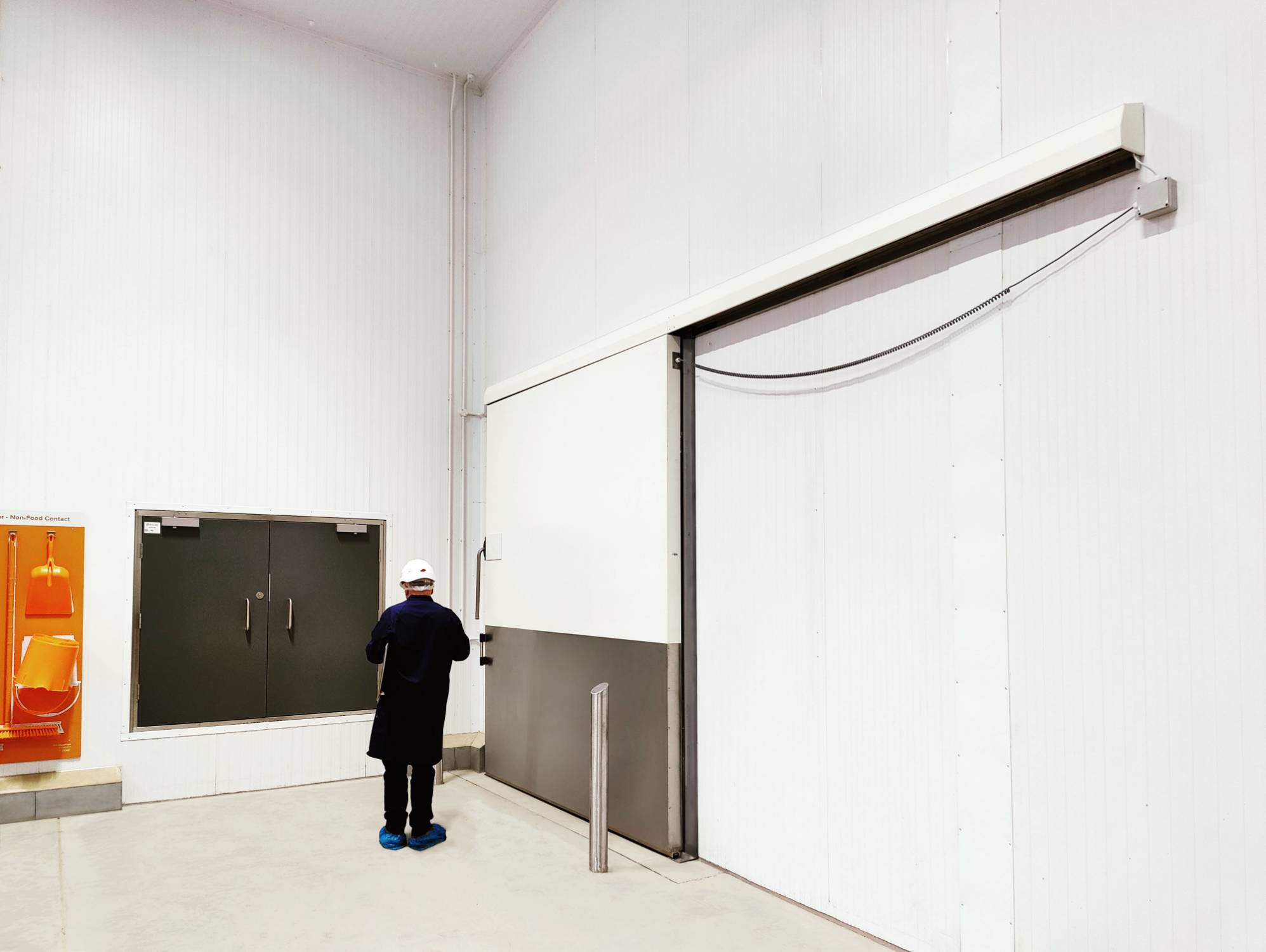

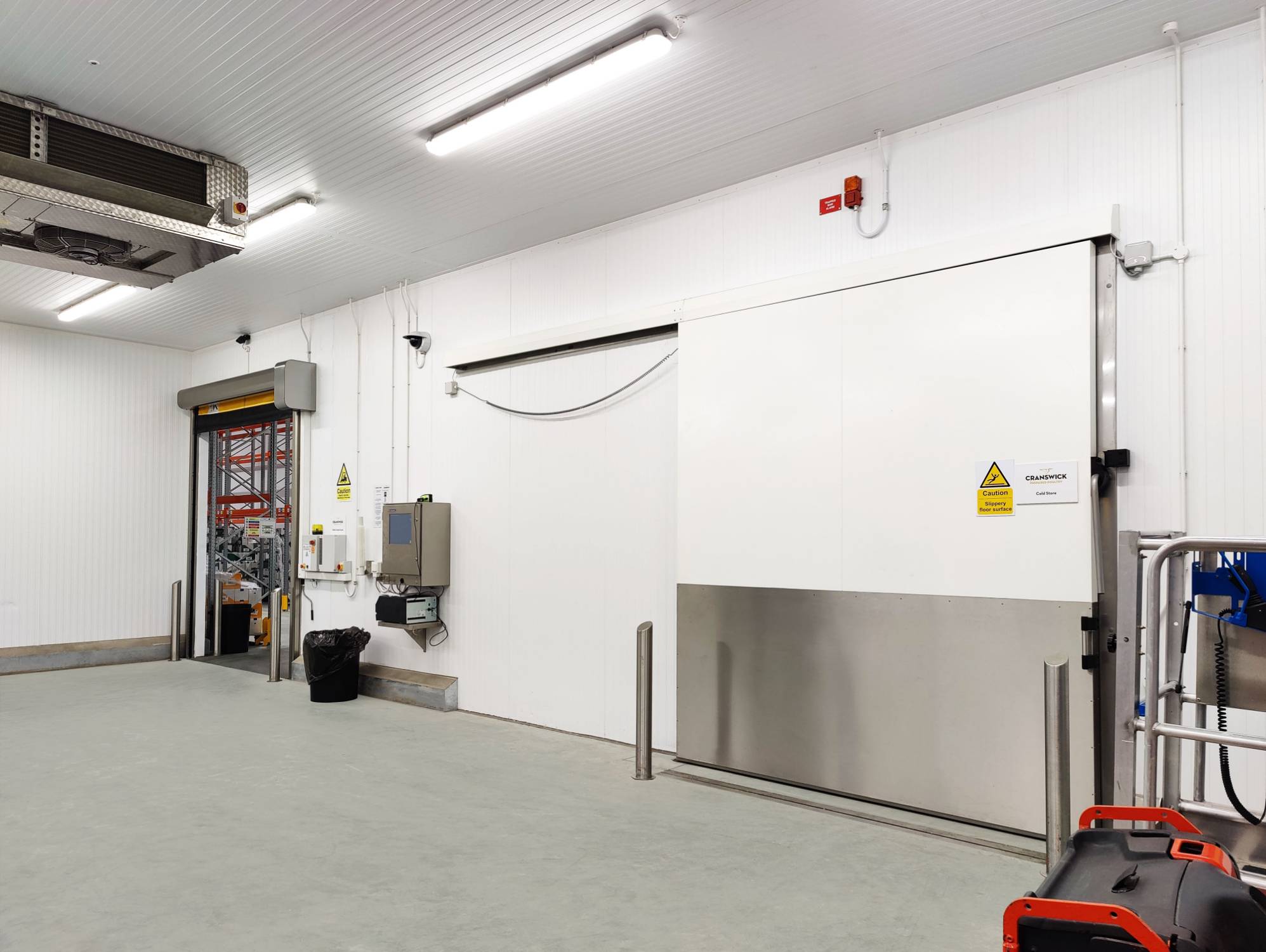

The Thermidor Freeze SL is a specialist sliding freezer door, designed to provide superior insulation performance for openings that separate areas with large temperature differences.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Blast Freezers.
  • Storage Freezers.
  • Food Factories.
  • Pharmaceutical Factories

Description

This door range offers a simple and reliable operation and is available as either a motorized or manual model to suit site requirements.


With options of different panel thicknesses, high quality rubber seals and optional heated frames / thresholds, this door range is designed to reduce costs and improve safety by optimizing insulation and preventing ice build-up in a variety of applications.


Available with a range of hygienic finishes, including stainless steel, brushed stainless steel and powder-coating, the door is suitable for use in food factories, including wash-down areas.


The door panel is a monobloc design with a welded steel envelope and injected foam core. This offers exceptional stability and insulation performance, with no cold bridges. The fully welded and seamless finish is far superior to alternative designs that use a two part leaf design where water can freeze in the joints damaging the leaf over time.


Features and benefits:

  • Superior insulation performance.
  • Hygienic and corrosion-resistant.
  • Reliable, user-friendly operation.
  • High quality, durable ironmongery.
  • CE marked.

General information

Color

Silver

White

Finish

Smooth

Brushed

Guidance for specification option:

Circle or line.

Material

Stainless steel

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Track system

Standard sliding track system.

Guidance for specification option:

Standard.

Specialized pipe-rail track system.

Guidance for specification option:

Optional.

Door leaves

-

Construction

0.75 mm zinc coated galvanized steel.

0.8 mm stainless steel.

Manufacturer guidance

The door leaves are constructed with a fully welded “envelope” design which ensures a robust and hygienic door leaf as well as preventing ice or condensation build-up within the door leaf.


Painted steel in the following colours: RAL 1021; RAL 3000;

RAL 5010; RAL 7035; RAL 9001; RAL 9002; RAL 9006; RAL 9010.


Stainless steel in the following variants: matt brush; circular

brush; strip finish. Special colours on request.

Finish and colour

Powder coated.

Brushed.

Guidance for specification option:

Stainless steel.

Smooth.

Guidance for specification option:

Stainless steel.

Operation

Powered.

Manual.

Hardware

Door pusher leaver and pull handle.

Classic lock.

Safe lock.

Reverse operation lock.

Accessories

Push button.

Remote control.

Proximity sensor.

Radar sensor.

Pull cord.

Induction loop.

Optical photocell device and pressure sensing safety edge.

FrameMaterial

Metal frame construction, complete with heater element and thermostat to prevent ice build-up.

Perimeter seals or inserts

Two-part rubber seal situated between the door frame and leaf to eliminate thermal bridging.

Thickness

100 mm.

120 mm.

150 mm.

Panel details

Fully welded steel leaf, injected with a CFC-free polyurethane foam.

Size:

-

Manufacturer guidance

Size (w x h): 3000 x 3000 mm (maximum). Other sizes available on request. Insert requirements.

Sustainability data

Material

Stainless steel

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

Thermidor Freeze SL Datasheet

Thermidor Freeze SL Datasheet
