Thermidor Chill SM - Insulated sliding monobloc chiller doors

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

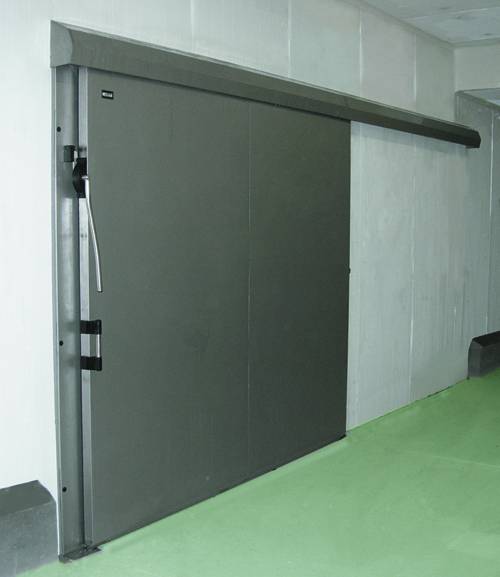

The Thermidor Chill SM is a specialist sliding chiller door, designed to provide superior insulation performance for openings in chiller environments.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Storage Chillers.
  • Defrosting Chillers.
  • Food Factories.
  • Pharmaceutical Factories.

Description

This door range offers a simple and reliable operation and is available as either a motorized or manual model to suit site requirements.


With options of different panel thicknesses, high quality rubber seals and optional heated frames / thresholds, this door range is designed to reduce costs and improve safety by optimizing insulation and improving temperature control.


Available with a range of hygienic finishes, including stainless steel, brushed stainless steel and powder-coating, the door is suitable for use in food factories, including wash-down areas.


The door panel is a monobloc design with a welded steel envelope and injected foam core. This offers exceptional stability and insulation performance, with no cold bridges. The fully welded and seamless finish is far superior to alternative designs that use a two part leaf design where water ingress can occur over time, damaging the leaf construction.


Features and benefits:

  • Superior insulation performance.
  • High quality perimeter seals.
  • Safe and reliable operation.
  • Monobloc door leaf design.

General information

Color

Silver

White

Finish

Brushed

Smooth

Stainless steel

Powder-coated

Material

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Stainless steel

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

L20/480 Doorsets

L20/55 Doorsets

Specification data - Sliding door and partition sets

Track system

Standard sliding track system.

Specialised pipe-rail track system.

Door leaves

-

Construction

Fully welded steel leaf, injected with a CFC-free polyurethane foam.

Finish and colour

Powder-coated galvanized steel.

Brushed stainless steel.

Smooth stainless steel.

Operation

Manual.

Powered.

Hardware

Door pusher leaver and pull handle.

Guidance for specification option:

Manual doors.

Classic lock.

Safe lock.

Reverse operation lock.

Accessories

Optical photocell device and pressure sensing safety edge.

Guidance for specification option:

Standard.

Push button.

Guidance for specification option:

Optional.

Remote control.

Guidance for specification option:

Optional.

Proximity sensor.

Guidance for specification option:

Optional.

Radar sensor.

Guidance for specification option:

Optional.

Pull cord.

Guidance for specification option:

Optional.

Induction loop.

Guidance for specification option:

Optional.

FrameMaterial

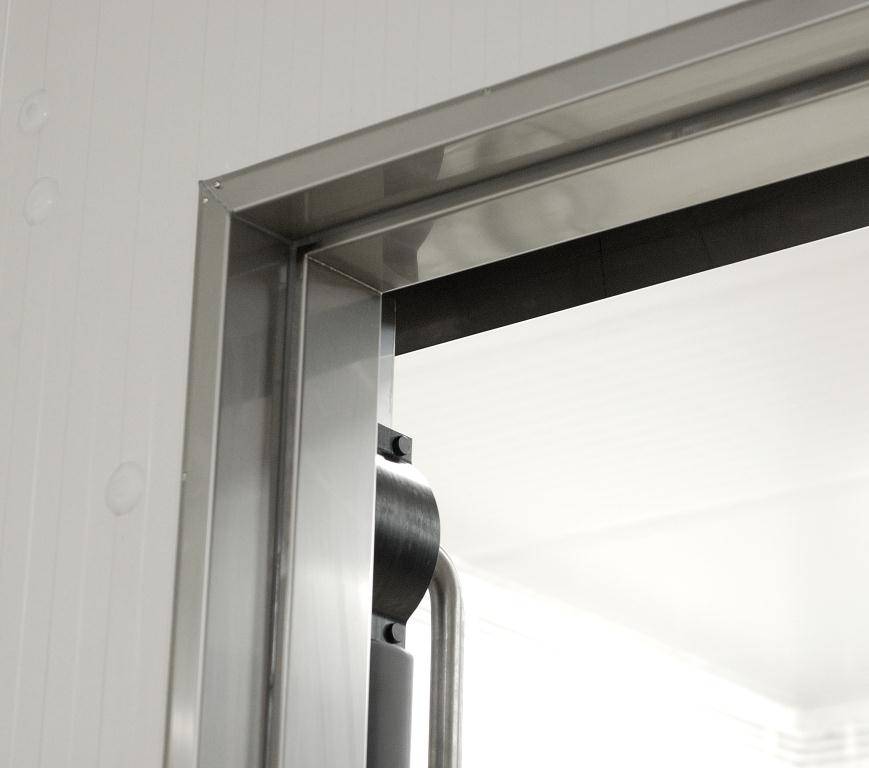

Robust steel frame construction, suitable for industrial environments.

Perimeter seals or inserts

Two-part rubber seal situated between the door frame and leaf to eliminate thermal bridging.

Thickness

60 mm.

80 mm.

Material

0.75 mm zinc coated galvanized steel.

0.8 mm stainless steel.

Sustainability data

Material

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Stainless steel

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

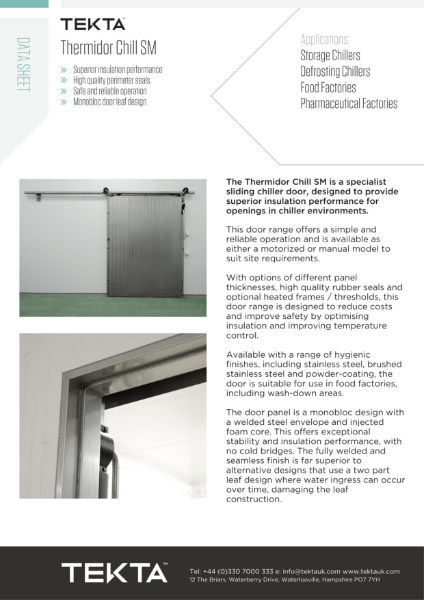

Thermidor Chill SM Datasheet

Thermidor Chill SM Datasheet
