Sanidor Glissade - Airtight sliding hygiene doors

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

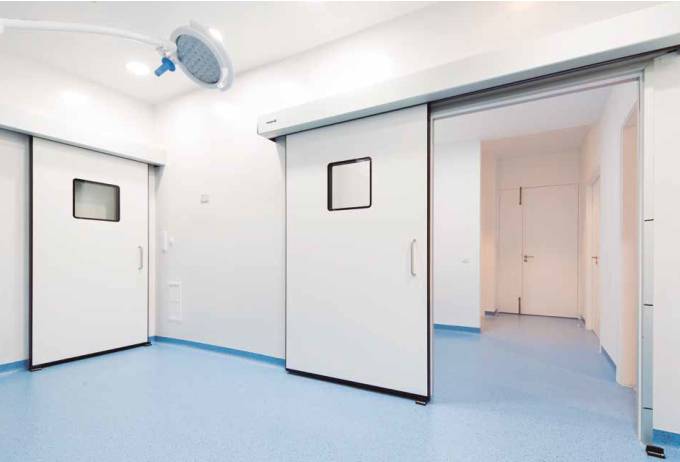

Sanidor Glissade is the ultimate sliding door solution for clean and sterile environments, where a hermetic seal is required.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Cleanrooms.
  • Laboratories.
  • Pharmaceutical Manufacturing.
  • Hospitals.

Description

With high quality AC motors, this door offers a quiet and reliable operation, designed for use in cleanrooms and other hygienic environments with controlled air pressures. The leaf is constructed from a high pressure laminate (HPL) leaf, available in a wide range of colours.


Doors are typically supplied with an automatic operator but can also be set-up for manual operation if required. The Visio automatic operator is extremely compact, versatile and can be combined with numerous activation options including touch-free sensors and radar sensors.


The door is available in bi-parting and single-slide configuration. Each leaf can be manufactured with a flush vision panel which is easy-to-clean and available in a variety of different sizes.


With integral safety features, including fail-safe mechanical override, this range is tested to fully comply with the relevant European safety standards.


Features and benefits:

  • Certified hermetic seal for air tightness.
  • Superior hygienic barrier for cleanrooms.
  • Safe, low maintenance, operation.
  • Easy-clean door leaf construction.

General information

Color

Blue

Guidance for specification option:

Arctic blue – 0718.

White

Green

Grey

Beige

Show more

Finish

Other

Manufacturer guidance

Antibacterial finish.

Material

High pressure laminate (HPL)

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/480 Doorsets

L20/520 Sliding doors

L20/60 Doors

Specification data - Sliding door and partition sets

Performance

Air-tight.

Guidance for specification option:

Hermetic seal.

Arrangement

Hermetic sealing sliding doors.

Track system

Manufacturer's standard.

Door leaves

-

Construction

Aluminium profiles, 50 mm thick high pressure laminate (HPL) leaf with antibacterial certification, according to JIS Z 2801.

Finish and colour

Arctic Blue (RAL5024).

Guidance for specification option:

Standard.

Pebble Grey (RAL 9002).

Guidance for specification option:

Standard.

Sea Green (RAL 5018.

Guidance for specification option:

Standard.

White (RAL 9016).

Guidance for specification option:

Standard.

Dahlia Yellow (RAL 1033).

Guidance for specification option:

Optional.

Hygienic White (RAL 9001).

Guidance for specification option:

Optional.

Light Beige (RAL 1015).

Guidance for specification option:

Optional.

Pastel Green (6019).

Guidance for specification option:

Optional.

Sky Blue (RAL 5015).

Guidance for specification option:

Optional.

Zinc Yellow (RAL 1018).

Guidance for specification option:

Optional.

Operation

Manual.

Powered.

Vision panels

Flush double glazed vision panel, rectangular.

Flush double glazed vision pane, round.

Safety

Three Photocells for obstacle detection with electronically regulated motor that does not exceed the safe opening/close force.

Standard

To 2006/95/CE, 2004/108/CE, 305/2011/CE, EN16361, EN16005, EN12978, UNE85170.

Air permeability

Class 6 according to EN12426 (Relative air permeability at 15Pa: 0.23 m³/m²h).

Sealing

In order to guarantee a hermetic seal, the track includes mechanical ramps which allow the door leaf to drop towards the floor 15 mm and toward the opening 10 mm in the closed position.

Emergency release

UPS Battery Backup with connection to the fire alarm.

Fail-safe mechanical override system with connection to the fire alarm.

Power supply

Three phase.

Sound reduction

27.7 dB(A).

Size:

-

Manufacturer guidance

  • Maximum Height:2400 mm. Special sizes available on request.
  • Maximum Width: Single Leaf: 1800 mm, Double Leaf: 2660 mm.

FrameMaterial

Aluminium.

Frame finish

Anodized finish.

Guidance for specification option:

Minimum 15 microns thickness.

Lacquered finish, RAL colour.

Guidance for specification option:

Minimum 60 microns thickness.

Opening speed

Opening speed: 1 m/s (maximum), Closing speed: 0.15–0.6 m/s.

Sustainability data

Material

High pressure laminate (HPL)

Aluminium

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

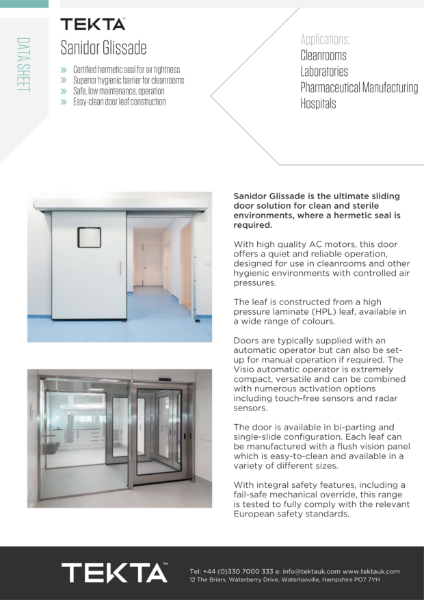

Sanidor Glissade Datasheet
