Sigma Block Paving - Smooth Linear Block Paving

Name: Sigma Block Paving - Smooth Linear Block Paving
Brand: Brett Landscaping
SKU: bcimrMfyVYHVpqv4EQoSPe

Verified by manufacturer 3 days ago

Urban Bronze

Brett Landscaping

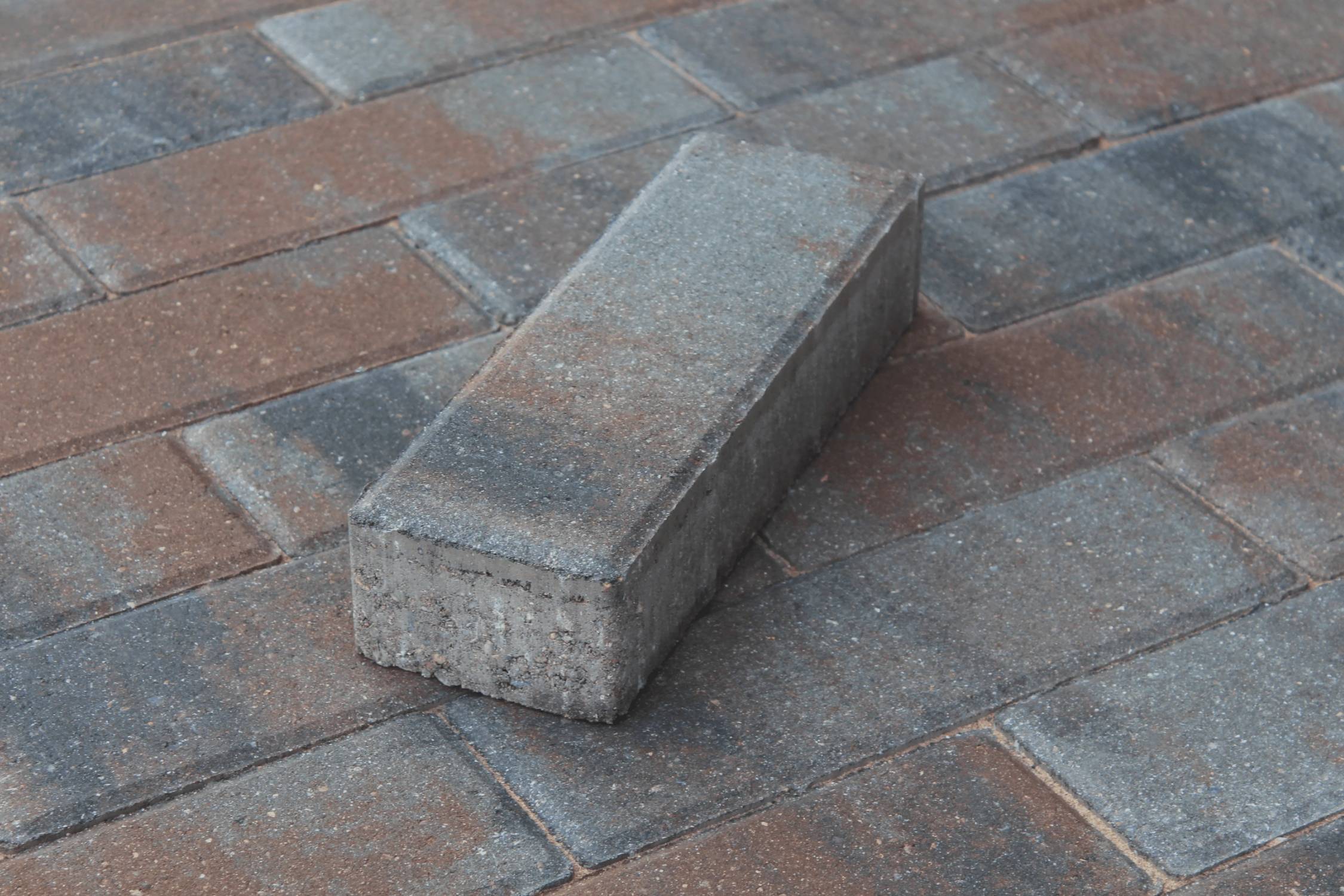

Sigma, a smooth linear block paving, in two exclusive colours provides a modern look to landscaping.

Jump to:

+44 (0)345 60 80 570 Website

Application

Suitable for most applications, Sigma is equally appropriate for small domestic and residential projects as it is for large urban commercial jobs.

Domestic and lightly loaded commercial use; hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, emergency access routes, roof coverings etc.

Description

Sigma is a contemporary block paving infused with ChromaBlock Technology. This advanced technology accentuates Sigma’s two exclusive shades - Urban Slate and Urban Bronze, both showcasing rich, radiant colours that bring life to any landscape.

Supplied in packs of 288 as standard with a coverage of 8.64 m².

Matching flags available, consult manufacturer for details.

General information

Color	Bronze Grey
Finish	Smooth
Material	Concrete Guidance for specification option: Semi dry pressed and vibrated concrete.
Shape	Rectangle
Length	300 mm
Width	100 mm
Height	60 mm

Uniclass	Pr_25_93_60_17 Concrete paving blocksPrimary
CAWS	Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving

SKU Code	SI3160UB, SI3160US,

Specification data - Concrete paving blocks

Classification data
Description	Smooth linear block paving.
Standard	To BS EN 1338: 2003.
Physical properties	-
Colour	Urban Bronze.
Finish	Smooth faced.
Profile	-
Paver type	Regular plan form.
Arrises	Chamfered. Guidance for specification option: 6 x 4 mm.
Dimensions and associated tolerances	-
Nominal sizes	300 x 100 x 60 mm. Guidance for specification option: 33.3 blocks per m².
Tolerances on diagonals	Thickness ±3 mm; plan size ±2 mm.
Abrasion resistance	Class 4. Guidance for specification option: ≤20 mm, determined by Wide Wheel Abrasion Test.
Slip resistance	PTV unpolished slip resistance value (USRV) ≥55, potential for slip: low.
Environmental performance requirements	-
Recycled content (minimum)	Manufacturer's standard.
Strength	Characteristic tensile splitting strength ≥3.6 MPa; failing load ≥250 N/mm.
Durability	Class 3 ≤1.0 kg/m² with no individual result ≤1.5 kg/m².
Reaction to fire	Class A1 when used for internal flooring.
Fire performance	External: deemed to satisfy.
Thermal Conductivity:	1.2 W/m·K.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Concrete Guidance for specification option: Semi dry pressed and vibrated concrete.
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	5 %
Expected Life	40 year
