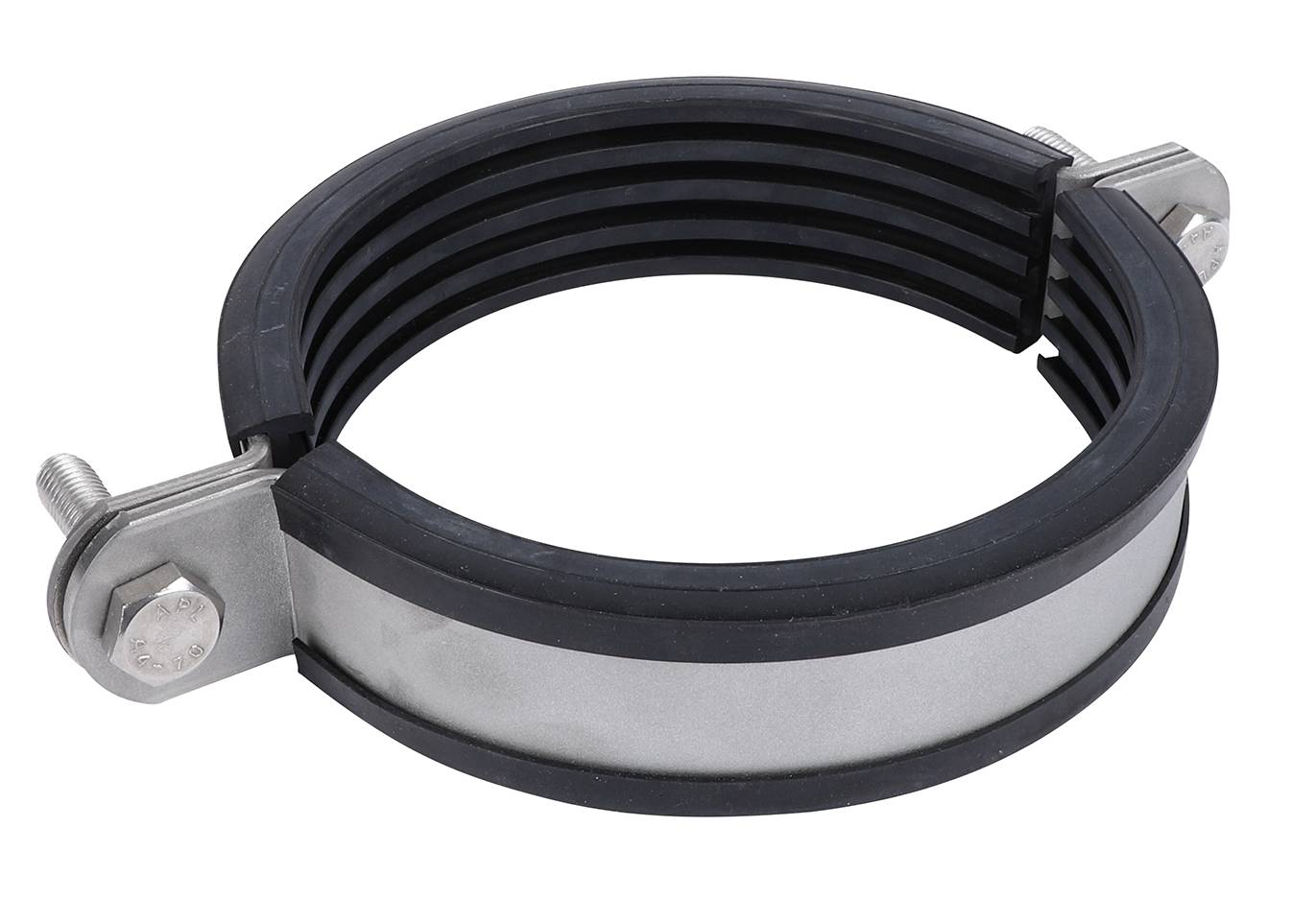

Stainless Steel Heavy Duty - Pipe Clamp with Lining
Verified by manufacturer 24 hours ago
Pipe diameter: 72–78 mm (M12)
Pipe diameter: 72–78 mm (M12)
M12–M16 stainless steel clamp, for pipes 72–325 mm.
Application
For use with pipes 72–325 mm.
Description
M12–M16 stainless steel heavy duty clamp with lining, for pipes 72–325 mm.
Features and benefits:
- Two-part clamp with two locking bolts.
- Heavy design.
- CO2 welded connection nut.
- Material: stainless steel 1.4401 (A4) - EN 10088, AISI 316.
- Lining:
- Noise insulating, EPDM rubber, black.
- Sound insulating (according to DIN 4109).
- Age resistant.
- For temperatures -30°C up to +110 °C.
- Also available on request: sound insulating lining of silicone rubber (reddish brown), heat resistant up to +200°C (A 35 15).
General information
Color | Silver |
Finish | Guidance for specification option: Stainless Steel. |
Material | Stainless steel Rubber Guidance for specification option: EPDM rubber. |
Shape | Circle |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Pipe clips
Clip type | 1900 N. |
Material | Stainless steel 1.4401 (A4) - EN 10088, AISI 316; EPDM rubber lining. |
Accessories | None. Silicone rubber lining. Guidance for specification option: Replaces standard EPDM rubber lining. Noise insulating; reddish brown; heat resistant up to +200°C (A 35 15). |
Dimensions | 141 x 111 x 25 mm. Guidance for specification option: Height x width x depth. Clamp plate: 3 mm thick. Clamp bolts: M10. |
Sustainability data
Country of product manufacture | Czechia |
