Thin-R FR/TP Thermal Ply Flat Roof Insulation - Insulation
Verified by manufacturer 3 months ago
EPD
Certificate type
Thermal ply high performance PIR and plywood composite for flat roofs.
Application
New and refurbishment flat roof applications.
Description
Thermal ply high performance polyisocyanurate (PIR) and plywood composite for flat roofs.
Unilin Insulation FR/TP Thermal Ply is a composite insulated panel of Unilin Insulation PIR core with a composite foil face, bonded to 6 mm WBP grade plywood. FR/TP is designed to provide high levels of thermal insulation and decking in one operation for new and refurbishment flat roof applications.
General information
Color | Yellow |
Finish | Foil Guidance for specification option: Composite foil face bonded to 6 mm WBP grade plywood. |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Height | 56 mm 76 mm 86 mm 96 mm 106 mm |
Uniclass | |
CAWS | J21/10 Warm deck roof coating J21/420 Rigid urethane foam insulation J21/5 Warm deck roof coating J41/10 Reinforced bitumen membrane warm deck roof covering J41/420 Rigid urethane foam insulation |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Thermal conductivity (maximum) | 0.022 W/m·K. |
Cross section | Rectangular. |
Thickness (nominal) | 56 mm.76 mm.86 mm.96 mm.106 mm.116 mm.126 mm.Manufacturer guidanceThickness includes 6 mm plywood. |
Face size (length x width) | 2400 x 1200 mm. |
Density | 32kg/m³. |
Compressive strength at 10% deformation | >150 kPa. |
Recycled content | 0%. |
Facing | Composite foil face, bonded to 6 mm WBP grade plywood. |
Edges | Square. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Guidance for specification option: UK and Ireland. |
Country of product manufacture | United Kingdom Guidance for specification option: UK and Ireland. |
Material | Polyisocyanurate (PIR) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.3 kg CO₂ eq/m² |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
Literature

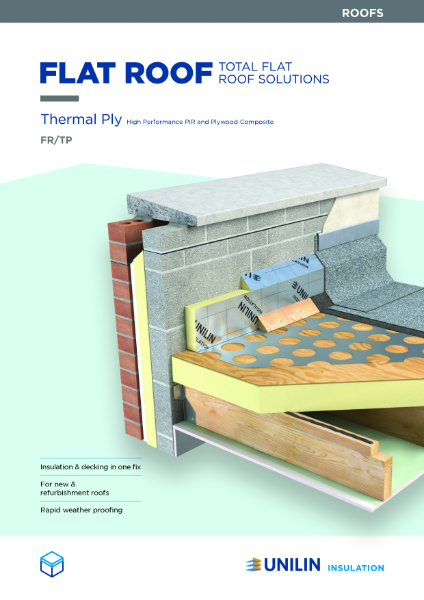

Unilin Insulation FR TP UK V3
