V3 | Infinite Full Height - Toilet Cubicles

Name: V3 | Infinite Full Height - Toilet Cubicles
Brand: Venesta Washroom Systems Ltd
SKU: m8WcrwYeszJy3rnrUjKfBT

Verified by manufacturer 14 days ago

HPL

Venesta Washroom Systems Ltd

Modern floor to ceiling, flush-fronted premium toilet cubicle range.

Jump to:

+44 (0)1474 353333 Website

Application

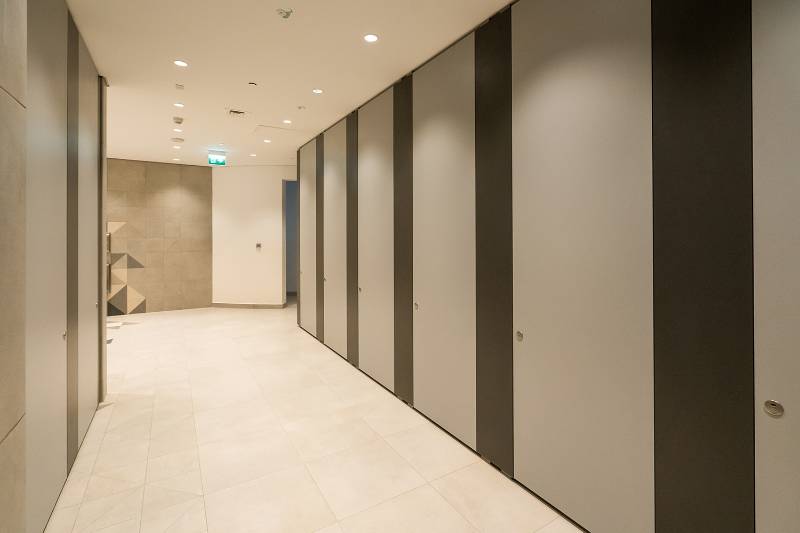

Infinite Full Height cubicles are suitable for all types of commercial washrooms, particularly when a more premium solution is required.

Ideal for communal washrooms due to the privacy achieved with the full height cubicles.

Description

Part of the Venesta V3 range Infinite is a premium full height toilet cubicle. Infinite has a number of features including floating pilasters, adjustable stainless steel modular pedestals and a three-part aluminium headrail system for a floor to ceiling, flush fronted endless cubicle finish.

Infinite is a full height cubicle up to 2820 mm, with 30 mm ceiling clearance and 20 mm floor clearance.

HPL:

Infinite doors and pilasters are manufactured using high pressure laminate (HPL) which is heat, scratch, impact and moisture resistant, so particularly suitable for heavy use areas.

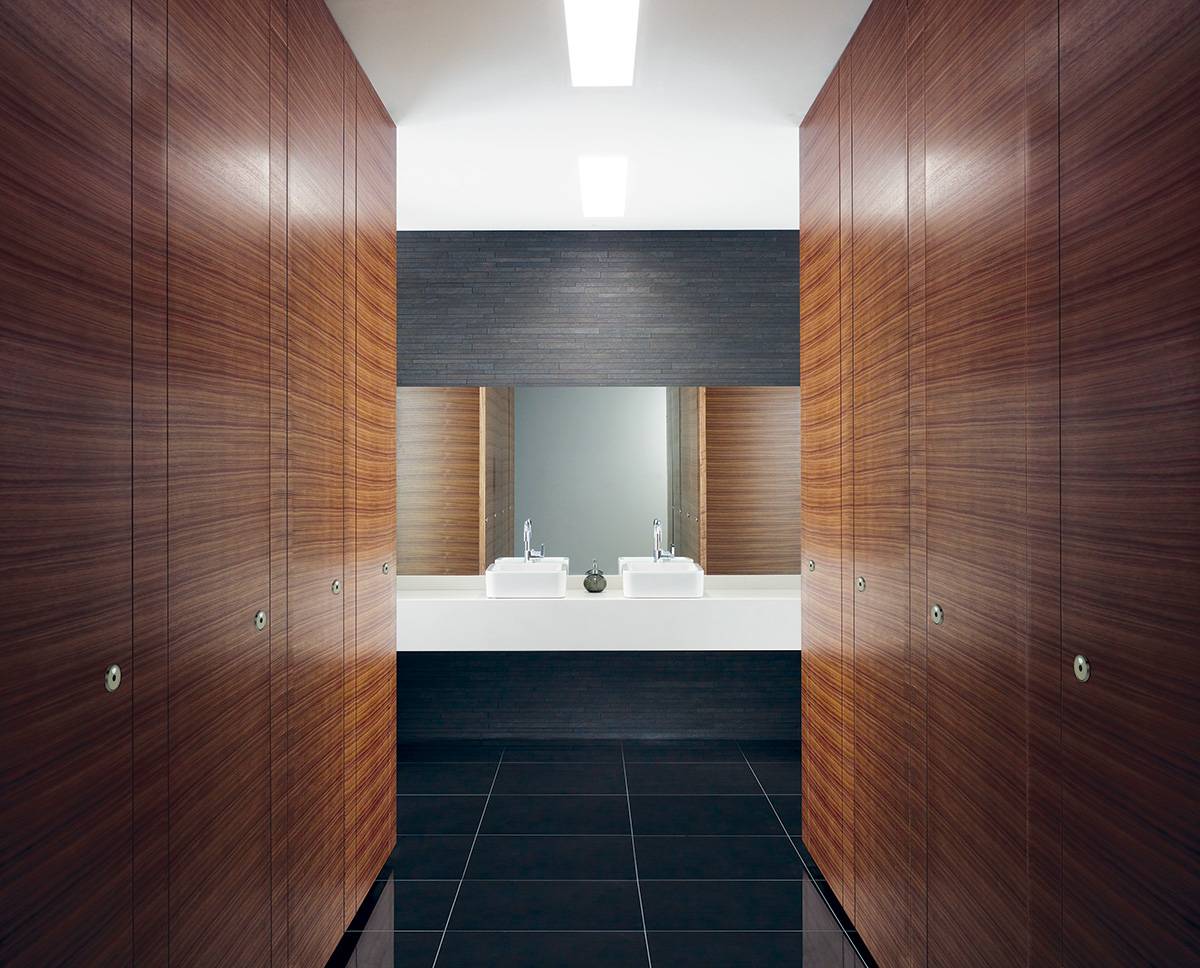

Veneer:

Infinite doors and pilasters are chipboard faced with real wood veneer. Partitions are MDF faced with wood veneer. Door, pilaster and partition edges are lipped with matching ABS.

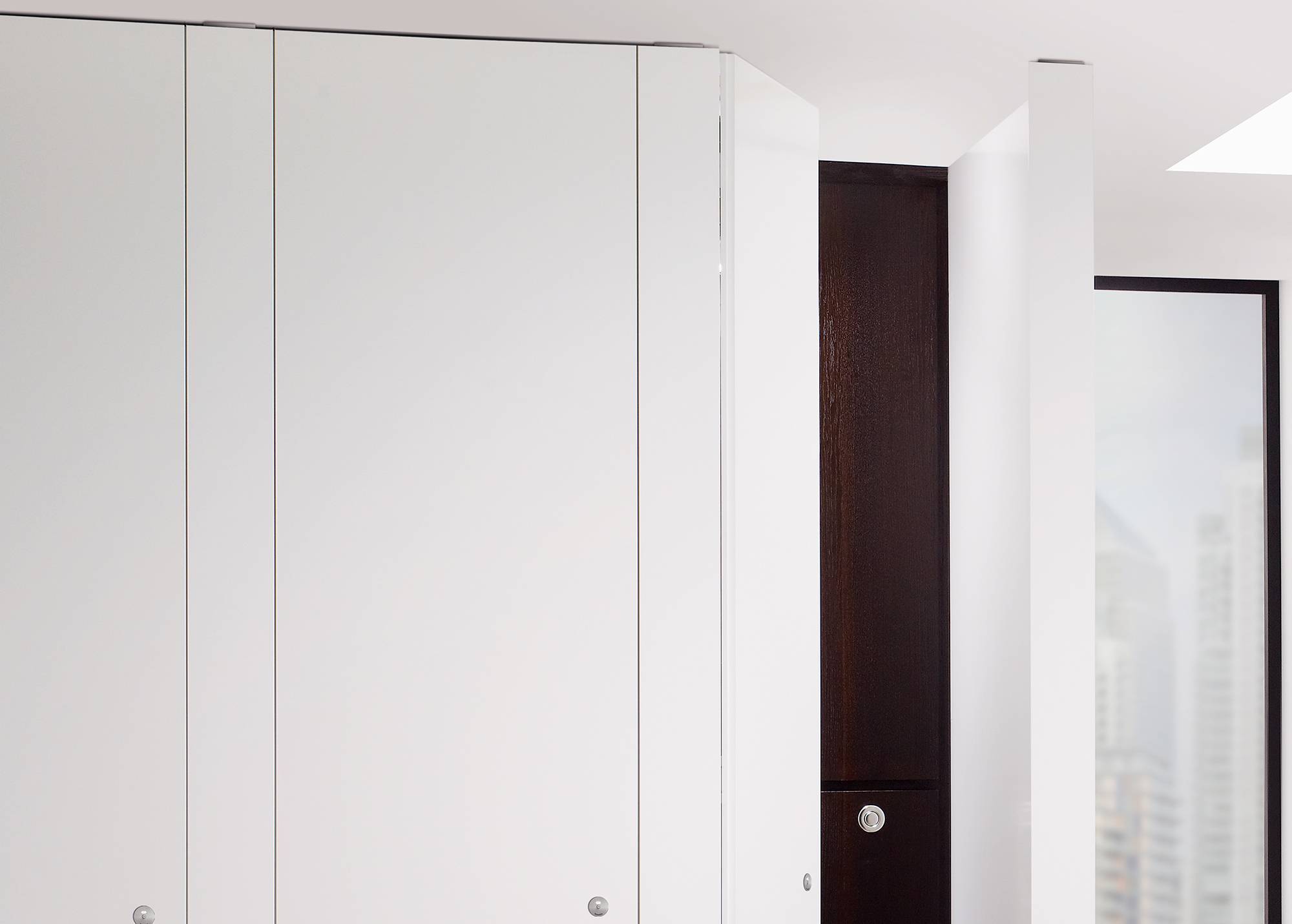

ColourCoat High Gloss:

Infinite ColourCoat High Gloss panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.

ColourCoat:

Infinite ColourCoat panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.

General information

Color	Black Blue Cream Green Grey Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Laminated Veneered
Material	High pressure laminate (HPL) Guidance for specification option: Doors and pilasters are 44 mm nominal thickness with an MDF core, partitions are 25 mm nominal thickness. Medium density fibreboard (MDF) Guidance for specification option: High Gloss: Doors and pilasters are 44 mm nominal thickness MDF, partitions are 25 mm MDF, both are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Wood
Length	2045 mm
Width	850 mm
Height	2820 mm
Warranty description	Ten year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Product range	Cubicles / V3 Toilet Cubicles

Specification data - Panel cubicle systems

Panels	26 mm medium density fibreboard (MDF) faced with high pressure laminate (HPL).
Panel supports	Extruded fixing blocks, steel Z-clips. Guidance for specification option: Finished in selected hardware finish.
Pilasters	45 mm medium density fibreboard (MDF) faced with high pressure laminate (HPL).
Doors	45 mm medium density fibreboard (MDF) faced with high pressure laminate (HPL).
Lippings	1mm nominal matching ABS.
Hardware	Indicator bolt and keep, faceplate. Guidance for specification option: Finished to selected hardware finish. Outward opening hinge option available. Lever operated slimline mortice lock. Circular faceplate and specialist tri-drive security emergency release key facility. Faceplate and keep with concealed fixings.
System accessories	Not required. Venesta Toilet Roll Holder. Venesta Coat Hook. Document M 2004 Compliant grab rails and door pulls.

Fixings	Extruded fixing blocks, steel z-clips.
Cubicle height (overall)	2820 mm. Manufacturer guidance Maximum height: 2820 mm. Insert requirements or refer to a drawing.
Cubicle depth	2045 mm.
Clearance	Floor, 20 mm; ceiling, 30 mm (minimum).
Colour/ Finish	Rouge (VEN324 \| LRV 17). Papaya (VEN370 \| LRV 35). Golden (VEN366 \| LRV 52). Canary (VEN365 \| LRV 65). Lime (VEN354 \| LRV 54). Clover (VEN378 \| LRV 20). Olive (VEN367 \| LRV 38). Duck Egg (VEN368 \| LRV 54). Marine Green (VEN360 \| LRV 46). Hydrangea (VEN361 \| LRV 55). Cornflower Blue (VEN359 \| LRV 22). Pacific (VEN353 \| LRV 20). Peacock (VEN371 \| LRV 25). Teal (VEN377 \| LRV 11). Indigo (VEN356 \| LRV 8). Merlot (VEN364 \| LRV 8). Macaroon (VEN348 \| LRV 24). Peony (VEN376 \| LRV 52). Porcelain (VEN352 \| LRV 81). Suede (VEN369 \| LRV 66). Cloud (VEN351 \| LRV 58). Shadow (VEN350 \| LRV 37). Gunmetal (VEN349 \| LRV 10). Noir (VEN337 \| LRV 5). Steel (VEN319 \| LRV 42). Light Parchment (VEN363 \| LRV 57). Grey Parchment (VEN362 \| LRV 31). Vintage Grey (VEN372 \| LRV 27). Weathered Grey (VEN358 \| LRV 21). Black Ash (VEN374 \| LRV 9). African Wenge (VEN373 \| LRV 11). Dark Walnut (VEN355 \| LRV 13). Golden Oak (VEN357 \| LRV 36). Soft Oak (VEN375 \| LRV 45). Show more
Headrail	Not required. Stainless steel, slimline profile headrail. Guidance for specification option: Three part fixing system allows cubicles to finish 20 mm below ceiling height. Black effect stainless steel, PVD-coated slimline profile headrail. Brass effect stainless steel, PVD-coated slimline profile headrail. Bronze effect stainless steel, PVD-coated slimline profile headrail.
Hinges	Aluminium stainless steel effect, hinges and fixing blocks. Black effect stainless steel, PVD coated hinges and fixing blocks. Brass effect stainless steel, PVD coated hinges and fixing blocks. Bronze effect stainless steel, PVD coated hinges and fixing blocks. Manufacturer guidance Colour and finish for hinges and fixing blocks.
Hardware	Aluminium stainless steel effect. Black effect stainless steel, powder-coated aluminium. Brass effect stainless steel, powder-coated aluminium. Bronze effect stainless steel, powder-coated aluminium. Manufacturer guidance Hardware colour and finish.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	High pressure laminate (HPL) Guidance for specification option: Doors and pilasters are 44 mm nominal thickness with an MDF core, partitions are 25 mm nominal thickness. Medium density fibreboard (MDF) Guidance for specification option: High Gloss: Doors and pilasters are 44 mm nominal thickness MDF, partitions are 25 mm MDF, both are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Wood
