VISION 8000 - Non Fire Rated Riser Door

Verified by manufacturer 1 month ago

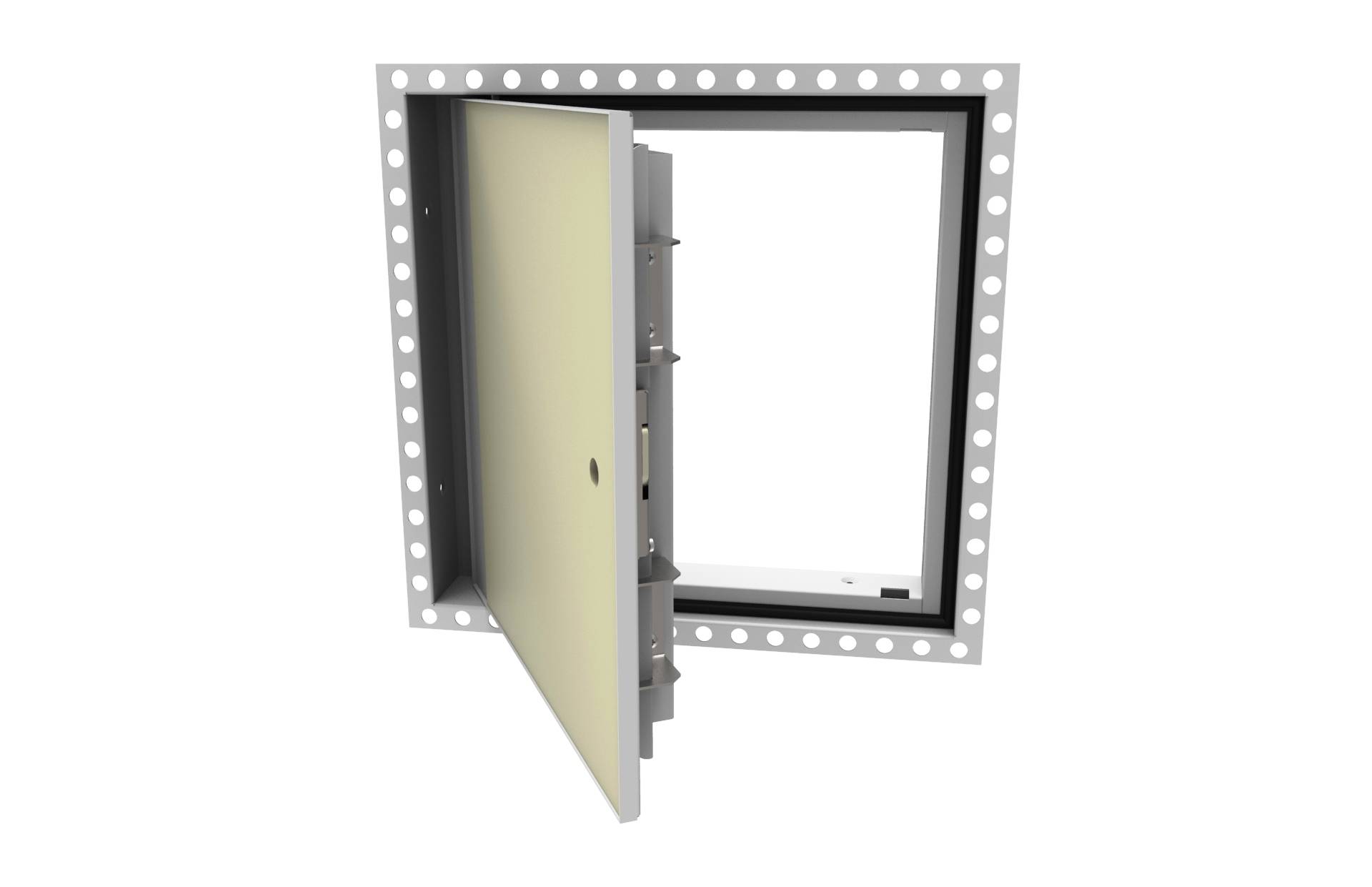

VISION 8000 NFR Riser Door - Single Door

Access 360 Variant:
Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

Steel access panel for different cladding materials, including ceramic, stone, marble and ceramic tiled walls.

Jump to:
BOS
 +44 (0)1827 718222 Website

Application

  • Specified in commercial, residential and public buildings for non-fire rated application such as kitchens, bathrooms or shower rooms, where discrete access to services is required.
  • Suitable for vertical use where doors are to be installed prior to tiling.

Description

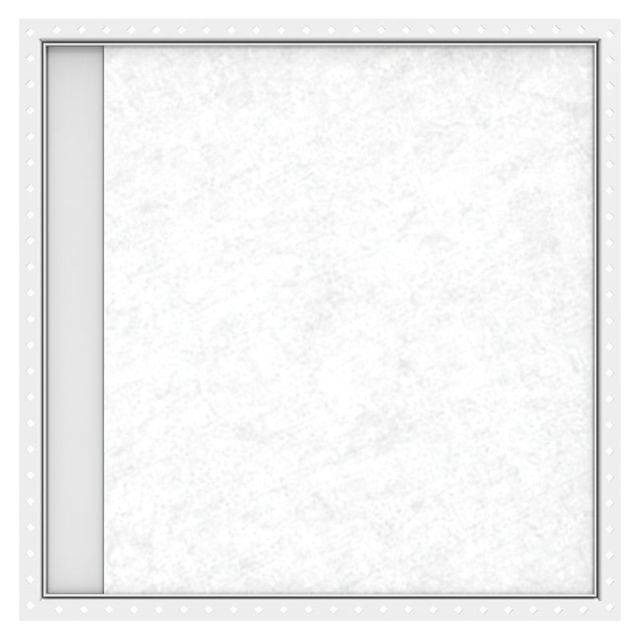

A non-fire rated, purpose made, concealed riser door, designed to provide a simple yet secure means of accessing building services through ceramic tile, marble or stone clad walls.

All riser doors are manufactured to order and can be designed to suit the specified tile module. The VISION 8000 Series can be clad in materials including stone, marble or ceramic tile for a finish to match surrounding décor for a concealed aesthetic finish, or to provide a visually impacting design for any project.


Features and benefits:

  • Facade of the riser door can be clad in stone, marble, ceramic or tile.
  • Manufactured to specified tile module size.
  • Concealed, aesthetic finish to match surrounding decor.
  • Allows for visually impacting designs if required.
  • Easy to install and lockable.
  • Maximum tile and adhesive build depth is 25 mm.
  • Concealed, load bearing hinges up to 120 kg capacity.
  • Single door (SD) and double door (DD) configurations, with continuous access (CSA) as a bespoke option.
  • Vertical (wall) use, with frame and lock options.
  • Fully recyclable at end of life.

General information

Color

White

Guidance for specification option:

RAL 9010.

Other

Guidance for specification option:

Any RAL colour available on request.

Finish

Matt

Guidance for specification option:

As standard.

Powder-coated

Material

Rubber

Guidance for specification option:

EPDM seal.

Steel

Carbon steel

Guidance for specification option:

Electro-galvanized mild steel.

Shape

Square

Rectangle

Manufacturer guidance

Selected option needs to be in a range of possible values.

Width

300 mm

Guidance for specification option:

Minimum door leaf width.

450 mm

600 mm

1050 mm

Guidance for specification option:

Maximum door leaf width.

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.

Height

300 mm

Guidance for specification option:

Minimum door leaf height.

450 mm

600 mm

900 mm

1200 mm

Show more

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.

Warranty description

Five year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

L20/630 Hatches

M40/110 Tiling to

M40/115 Natural stone covering to

M40/5 Tiling to

M40/10 Natural stone covering to

Specification data - Carbon steel doorsets

Doorset size

300 x 300 mm.

Guidance for specification option:

Minimum door leaf size.

300 x 600 mm.

450 x 450 mm.

600 x 600 mm.

600 x 900 mm.

600 x 1200 mm.

1050 x 3000 mm.

Guidance for specification option:

Maximum door leaf size.

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.
  • All doors hinge along dimension Y X and Y dimensions on the VISION 8000 Series Tiled Frame (TF) are the manufactured panel size, and relate to the door size that is obtained from the tile module and grout thickness modules.

Performance

-

Fire resistance

-

Integrity

Non-fire rated (NFR).

Door leaf

-

Material

Electro-galvanized mild steel door tray, 1.5 mm thick.

Guidance for specification option:

1.5 mm.

Finish

-

Coating

Marine ply, 12.5 mm lining.

Guidance for specification option:

1.5mm thick, electro-galvanised mild steel door tray lined with 12.5 mm marine ply to accept tile adhesive.

Finish

Powder-coated, matt, white (RAL 9010).

Powder-coated, matt, RAL.

Guidance for specification option:

Additional RAL colours available, consult manufacturer and insert requirements.

Acoustical Performance

To BS EN ISO 140-3, 30 dB (RW).

Guidance for specification option:

As standard.

Sealing

Rubber compression gasket and moisture guard to all sides.

FrameDepth

76.5 mm (overall).

Air tightness

Airtight to Part L.

Weight

Load bearing hinge capacity: Up to 120 kg.

Collar

Stainless steel.

White plastic.

Guidance for specification option:

Standard.

Manufacturer guidance

Lock.

Door configuration

Single door (SD).

Guidance for specification option:

Standard option.

Position

Wall mounted.

Frame

Exposed edge.

Guidance for specification option:

  • EEF: Suitable for use when tiles are being cut to fit within the panel, or when access is required into a wall which has already been tiled.
  • Cut edges of tiles are concealed by the perimeter of the door or frame.

Tiled frame.

Guidance for specification option:

  • TF: To be installed into walls which have not been tiled yet, to give a fully concealed finish.
  • Ideal for use when full tiles are applied to the door face, with the gaps between frame and door lining through with grout lines on the surrounding wall.

Operation

Concealed pivot hinges outward opening (toward the user).

Latch or lock type

Three point locking (3PL).

Guidance for specification option:

  • For door heights >1200 mm, specify three-point lock (3PL).
  • T bar key: used to unlatch and pull door leaf open.
  • Locking assembly: engages top, bottom and lock sides.
  • White plastic collar and plug as standard, with stainless steel collar optional.

Three point high security locking (3HS).

Guidance for specification option:

  • T bar key: used to unlatch and pull door leaf open.
  • Secondary locking.
  • Euro profile cylinder lock.
  • Locking assembly: engages top, bottom and lock sides.
  • White plastic collar and plug as standard, with stainless steel collar optional.

Concealed push catch (PC).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Guidance for specification option:

Britain.

Recyclability

98%

Guidance for specification option:

Fully recyclable at end of life.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

20–25% depending on the availability of scrap metal.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC
 -

3

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management Systems

Literature

VISION 8000 Brochure

VISION 8000 Brochure

Profab Access Brochure

Profab Access Brochure

Case studies

Hamad International Airport

Hamad International Airport

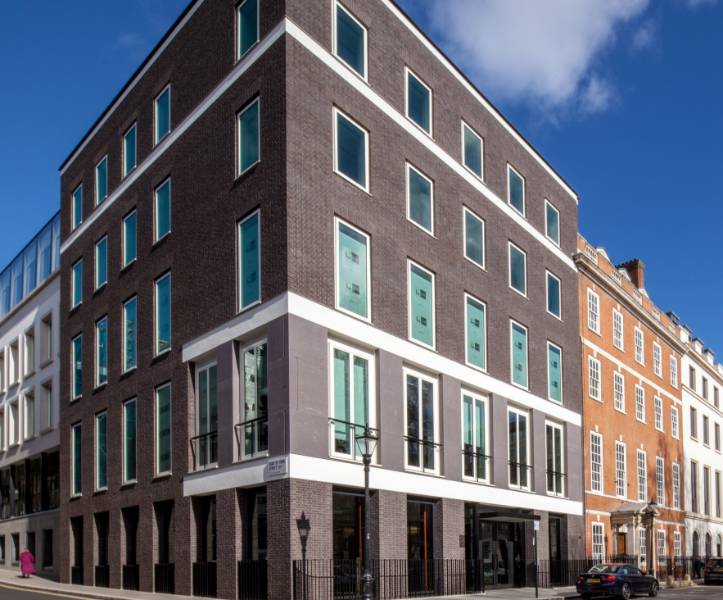

St James Square
