Visqueen Gas Barrier

Verified by manufacturer 3 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • DoP

    DoP

    Certificate type

Gas barrier and damp-proof membrane.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

  • The barrier can be positioned above or below a solid concrete ground floor slab or above a precast suspended segmental ground floor system (e.g. beam and block floor).
  • Suitable for use in all types of buildings to prevent the ingress of harmful levels of ground gases e.g. methane, carbon dioxide and radon.
  • The barrier can also be used as a high performance radon membrane and/or damp proof membrane.
  • The product is not intended for use where there is a risk of hydrostatic pressure.

Description

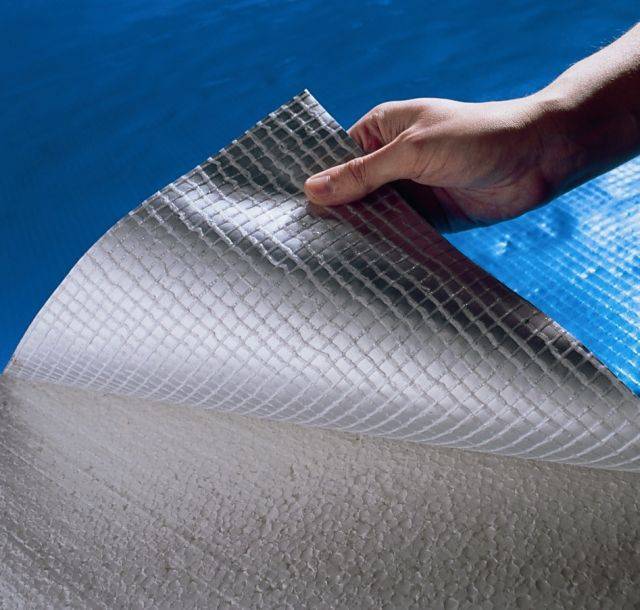

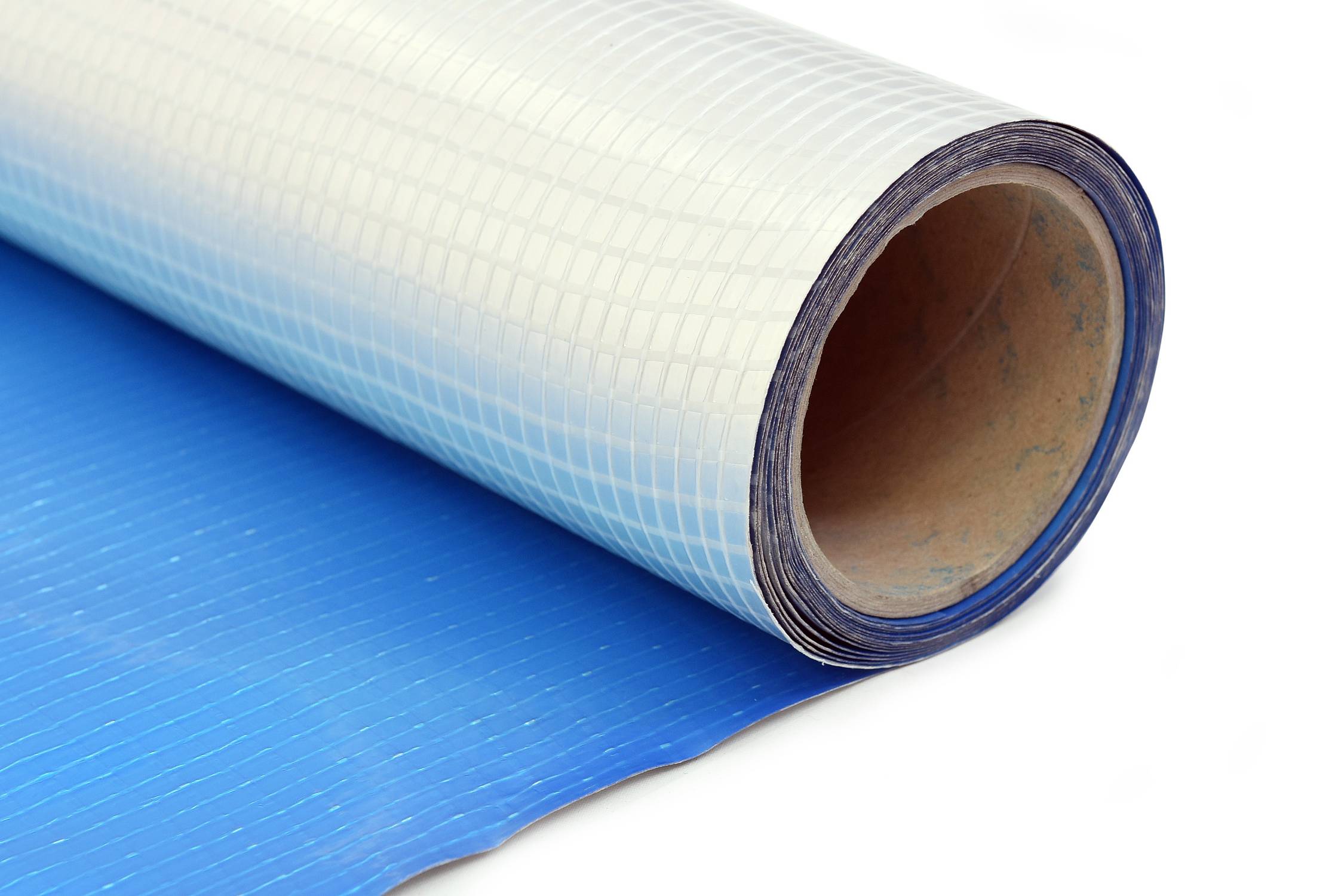

A multi-layer reinforced polyethylene membrane with an integral aluminium foil. For ease of identification on site Visqueen Gas Barrier is coloured blue on one side and silver on the reverse. The barrier combines strength and performance with flexibility and easy installation.


Features and benefits:

  • BBA approved
  • Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 - industry standard for methane and carbon dioxide protection
  • Low permeability to methane, radon and carbon dioxide.
  • Approved for use in NHBC Amber 2 applications.
  • Multi-layer reinforced LDPE membrane with aluminium core.
  • High puncture and tear resistance.

General information

Color

Blue

Silver

Manufacturer guidance

Blue on upper side and silver on reverse.

Finish

Smooth

Manufacturer guidance

Top surface: Ribbed, Bottom surface: Smooth

Material

Polyethylene

Aluminium

Foil

Manufacturer guidance

Reinforced polyethylene gas barrier with 20 micron aluminium foil.

Shape

Rectangle

Length

50000 mm

Width

2000 mm

Warranty description

Guidance for specification option:

See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes

J40/35 Loose-laid plastics or rubber gas-retardant membranes

Specification data - Plastics sheets

Material

Low-density polyethylene (PE-LD) / Aluminium foil.

Purpose

Gas retardance.

Standard

CE Mark EN 13967:2017

Performance characteristics

-

Tensile strength (minimum)

350 N.

Tear resistance

358 N.

Elongation to break

20%.

Resistant to underground gases

Carbon dioxide.

Methane.

Radon.

Water vapour resistance (minimum)

700 MN·s/g.

Fire performance

F class.

Third-party certification

British Board of Agrément (BBA) Certificate, 13/5069.

Form

Loose laid sheet.

Physical properties

-

Colour

Blue topside with silver underside.

Weight (minimum)

400 g/m².

Dimensions

-

Thickness (minimum)

0.66 mm.

Guidance for specification option:

0.4mm between scrim mesh.

Width (minimum)

2000 mm.

Roll length (minimum)

50 000 mm.

Product Reference

Visqueen Gas Barrier

Accessories

Double Sided Jointing Tape.

Foil Backed Lap Tape.

Gas Resistant Detailing Strip.

GR High Performance DPC.

TreadGUARD 1500.

Show more

Resistance to static loading - 20kg load

20 kg.

Application temperature

Guidance for specification option:

Recommended should not be installed below 5°C

Sustainability data

Country of material origin

United Kingdom

Material

Polyethylene

Aluminium

Foil

Manufacturer guidance

Reinforced polyethylene gas barrier with 20 micron aluminium foil.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

4

Third party certifications

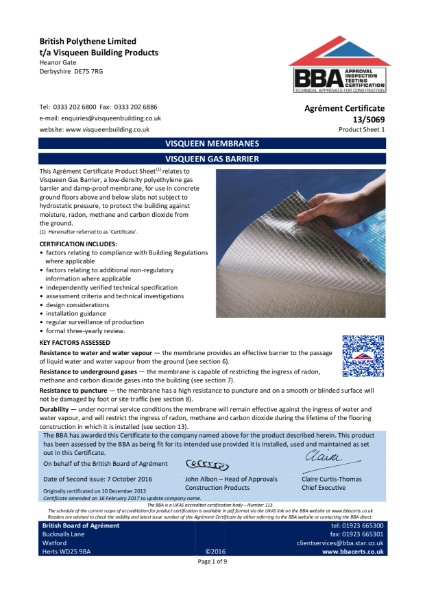

BBA Agrément Certificate
