Visqueen High Performance DPM

Verified by manufacturer 3 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • DoP

    DoP

    Certificate type

BBA approved premium grade damp proof membrane.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

  • Suitable for use in concrete floors in domestic and commercial applications, such as schools, hospitals, leisure centres and shopping centres, in accordance with clause 11 of CP 102, where there may be capillary rise of moisture but not where it may be subject to hydrostatic pressure.
  • Where there is a risk that the ground may be waterlogged, sub-soil drainage in accordance with CP 102 and BS 8102 should be provided.
  • Also suitable for applications such as heavy duty raft foundations and steel reinforced slabs.

Description

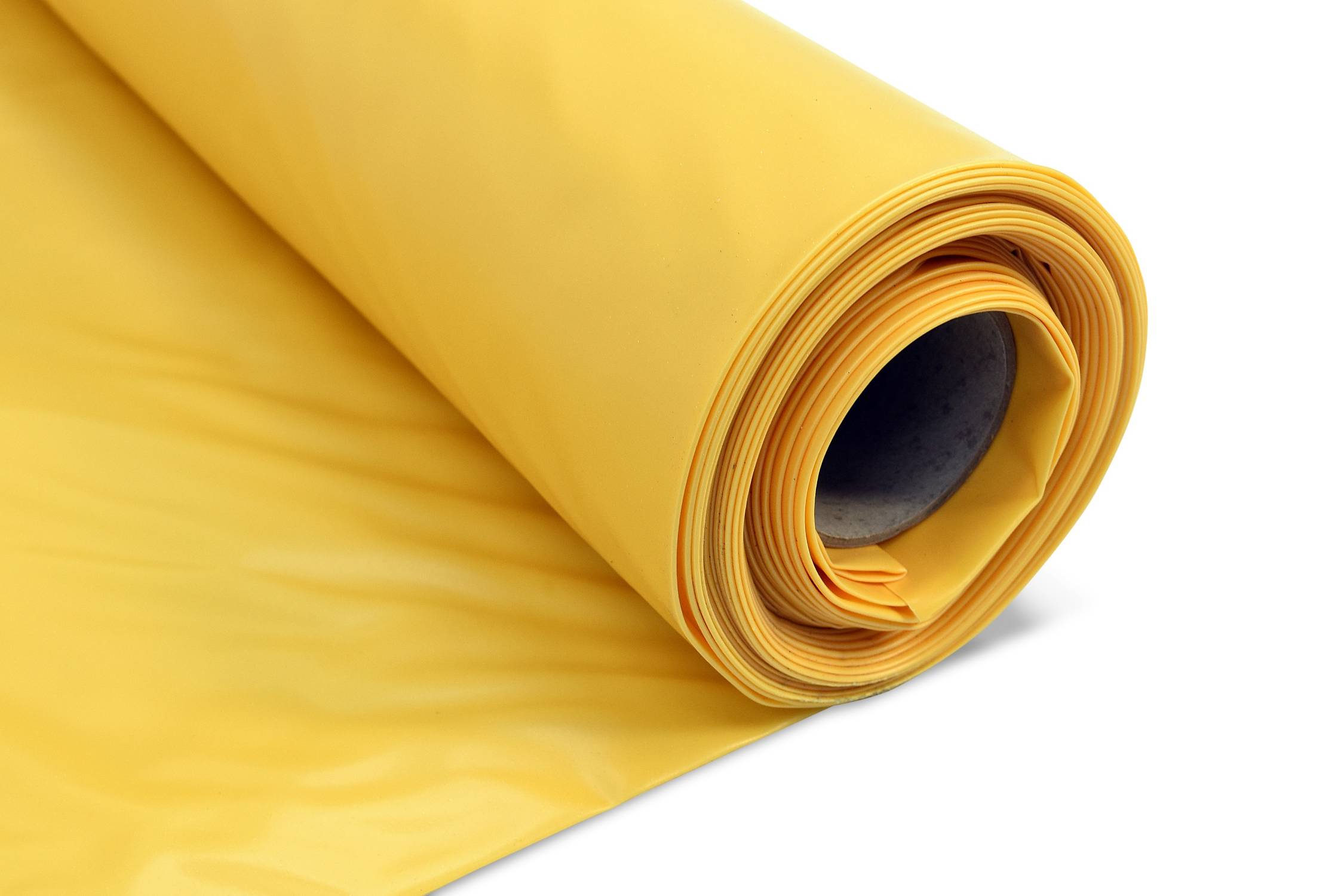

A BBA approved damp proof membrane, manufactured from premium recycled and virgin grade polyethylene.


Features and benefits:

  • Durable, robust and highly puncture resistant.
  • Manufactured as a centre folded product to limit creases which aids jointing and welding applications on site, additionally helping to reduce cracks found in structural concrete screeds where traditional multi-folded DPMs are used.
  • CE marked to BS EN 13967.

General information

Color

Yellow

Finish

Smooth

Material

Low density polyethylene (LDPE)

Shape

Rectangle

Length

12500 mm

Width

4000 mm

Warranty description

Guidance for specification option:

Details found within Visqueen Pl insurance documents. Consult manufacturer for further information.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane

Specification data - Plastics sheets

Material

Polyethylene.

Purpose

Damp-proof membrane.

Third-party certification

British Board of Agrément (BBA) Certificate, 94/3009.
CE Mark EN 13967:2017.

Performance characteristics

-

Tensile strength (minimum)

15 N/mm².

Tear resistance

333 N.

Elongation to break

400%.

Water vapour resistance (minimum)

2100 MNs/g.

Fire performance

F Class.

Physical properties

-

Colour

Yellow

Dimensions

-

Thickness (minimum)

0.5 mm.

Width (minimum)

4000 mm.

Roll length (minimum)

12 500 mm.

Water tightness at 2 kPa

To BS EN 1928, Pass.

Ancillary components

VisqueenPro Double Sided Jointing Tape,
VisqueenPro Single Sided Tape, Visqueen GR Lap Tape, Visqueen Top Hat Units, Visqueen Preformed Units, VisqueenPro Detailing Strip, Visqueen TreadGUARD 300, Visqueen TreadGUARD 1500.

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Low density polyethylene (LDPE)

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015

5

IFC

IFC2X3

3

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

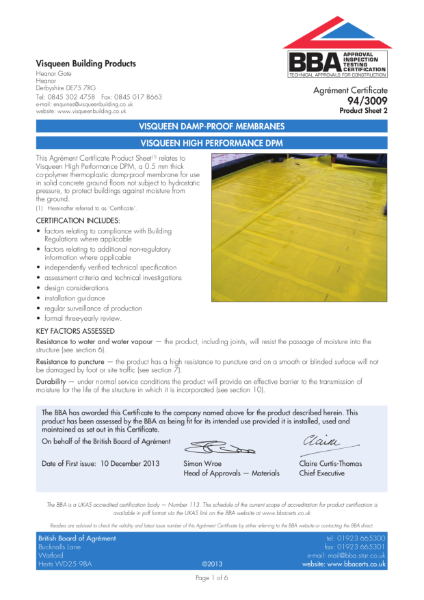

BBA Certificate Visqueen High Performane DPM

DoP

DoP

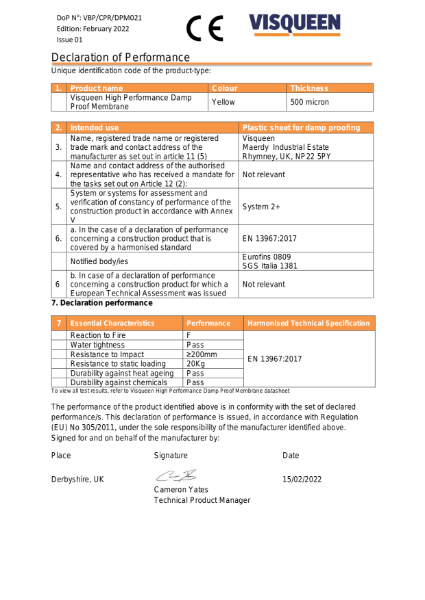

DPM CE Visqueen High Performance Damp Proof Membrane Declaration of Performance

DoP

DoP

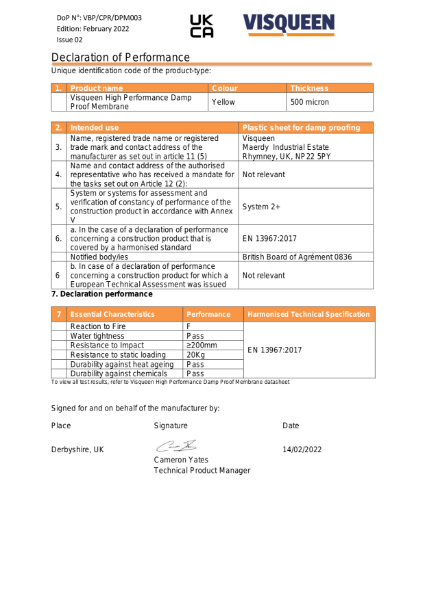

DPM UKCA Visqueen High Performance Damp Proof Membrane Declaration of Performance
