Visqueen High Performance Urban Drainage Geomembrane (HP UDG)

Verified by manufacturer 4 months ago

Visqueen

A multi-functional high performance geo-membrane.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

  • Suitable for a variety of geo-membrane applications.

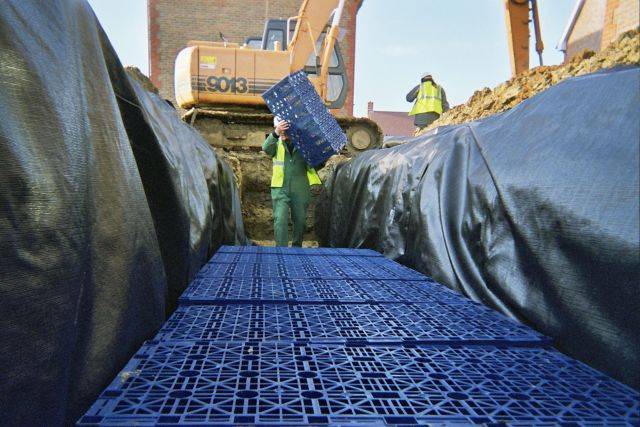

  • Used in the wrapping of underground storm water attenuation crates in heavy duty situations (high water table).

Description

A black, robust thermoplastic geo-membrane, 1 mm thick and supplied in single wound rolls (not folded).


Features and benefits:

  • Multi-functional geomembrane for demanding situations.
  • Resistant to on site damage and puncture under high compressive loads.
  • Easy to detail and install on site.
  • Dual jointing methods - lap joints can be taped or heat welded.

General information

Color

Black

Finish

Smooth

Material

Polyethylene

Shape

Rectangle

Length

50000 mm

Width

1400 mm

Warranty description

Guidance for specification option:

See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane

Specification data - Plastics sheets

Material

Polypropylene.

Purpose

Water resistance.

Performance characteristics

-

Tensile strength (minimum)

20 N/mm².

Tear resistance

705 N.

Elongation to break

799%.

Water vapour resistance (minimum)

1171 MN·s/g.

Fire performance

F class.

Form

Loose laid sheet.

Physical properties

-

Colour

Black.

Weight (minimum)

974 g/m².

Dimensions

-

Thickness (minimum)

1 mm.

Width (minimum)

1.4 m.

Roll length (minimum)

50 m.

Product Reference

Visqueen High Performance Urban Drainage System (UDG)

Accessories

GR Lap Tape.

Preformed Pipe Cloak (Top Hat) Units.

UDG Double-sided Bonding Tape.

UDG Protection Board.

Joint strength

515 N.

Impact resistance

600 mm.

Application temperature

Guidance for specification option:

Recommended should not be used below 5°C.

Water vapour permeability

0.11 g/m²/day.

Water vapour transmission

1171 MNs/g.

TensileStrength

22 N/mm².

Tensile strength CD

20 N/mm².

Tensile elongation property

799%.

Guidance for specification option:

MD.

848%.

Guidance for specification option:

CD.

Resistance to static loading - 20kg load

<20 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polyethylene

Recyclability

100%
