Visqueen Pre Applied Membrane

Name: Visqueen Pre Applied Membrane
Brand: Visqueen
SKU: iBZ7dQqrzZfXe13wihgbZD

Verified by manufacturer 4 months ago

Third party certifications:

Pre-applied waterproofing membrane

Jump to:

BOS

Application

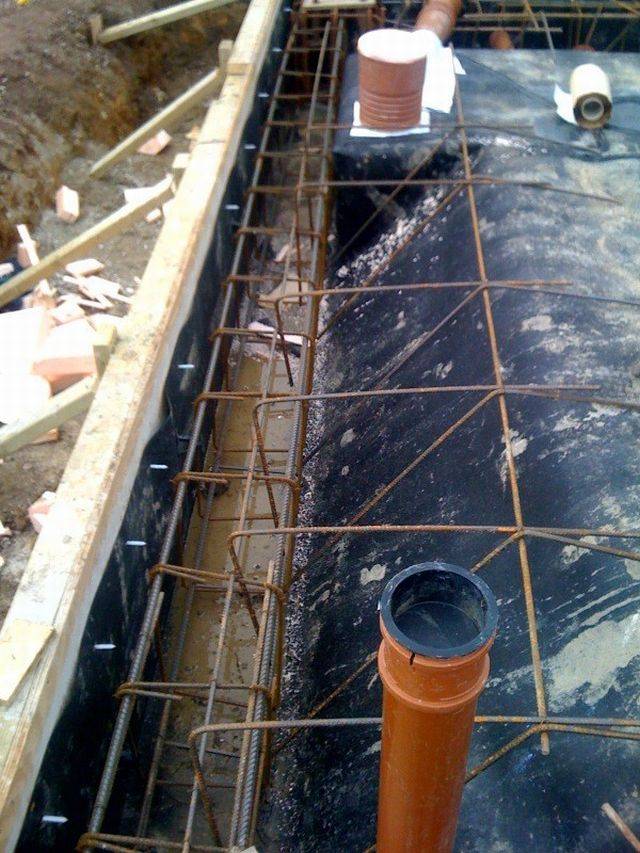

Suitable for below ground structures such as basements, retaining walls, lift pits and car parks.

The product is a 1 mm thick, robust co-extruded waterproofing membrane.

Features and benefits:

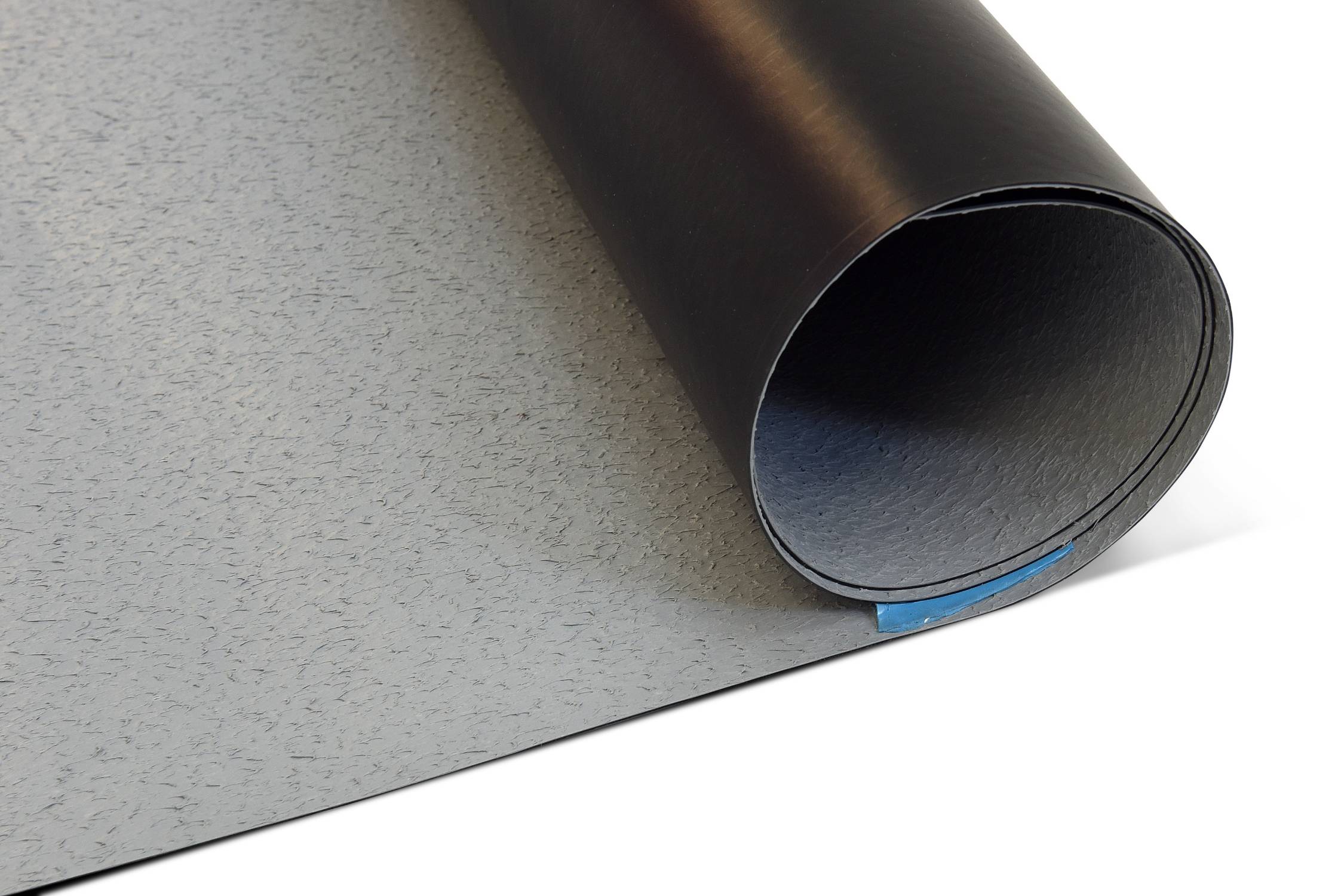

Coloured grey on the upper surface and black on the reverse. The grey surface is textured to aid adhesion to cast concrete.
Agrement certified - third party accreditation.
Type A Barrier Membrane (Tanking Membrane) - resistant to ground water in accordance with BS 8102:2022.
High resistance to puncture greatly reduces risk of barrier becoming damage during the build process.
Also acts as a radon and damp proof membrane.
Dual jointing methods - lap joints can be taped or heat welded.

Color	Grey Guidance for specification option: Upper surface. Black Guidance for specification option: Reverse surface.
Finish	Textured
Material	Polyethylene
Shape	Rectangle
Length	41000 mm
Width	2440 mm
Warranty description	Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	J40/120 Loose-laid plastics or rubber sheet damp-proofing J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/20 Loose-laid plastics or rubber sheet damp-proofing J40/35 Loose-laid plastics or rubber gas-retardant membranes

Purpose	Water resistance.
Standard	CE Mark EN 13967:2017.
Performance characteristics	-
Tensile strength (minimum)	22.4 N/mm².
Tear resistance	720 N.
Elongation to break	701%.
Water vapour resistance (minimum)	2142 MN·s/g.
Third-party certification	CE Mark EN 13967:2017.
Physical properties	-
Colour	Grey topside with black underside.
Weight (minimum)	97 kg.
Dimensions	-
Thickness (minimum)	1 mm.
Width (minimum)	2.44 m.
Roll length (minimum)	41 m.

Product Reference	Visqueen Pre Applied Membrane
Accessories	Detailing Strip. GR Lap Tape. GX Double-sided Bonding Tape. GX Preformed Top Hat Unit. GX Preformed Units. GX Retaining discs. High performance tanking primer. Visqueen Protect&Drain. Show more
Application temperature	Guidance for specification option: Recommended should not be used below 5°C.
Resistance to static loading - 20kg load	20 kg.
Impact resistance	750 mm.
Joint strength	598 N.
Fire performance	F class.
Water vapour permeability	0.063 g/m²/d.
Water vapour transmission	2142 MNs/g.
Tensile elongation property	706%.
Tensile strength MD	701%.
TensileStrength	22.4 N/mm². Guidance for specification option: TD. 23.6 N/mm². Guidance for specification option: MD.
