672 Exterior Roof Bellows Expansion Joint Cover
Verified by manufacturer 4 months ago
672-G01-050
672-G01-050
Exterior expansion joint system that will remain watertight during even the most severe seismic events.
Application
- Suitable for roof to roof thermal and seismic expansion joints.
- Roof to wall expansion joint system, suitable for use with membrane roofs.
Description

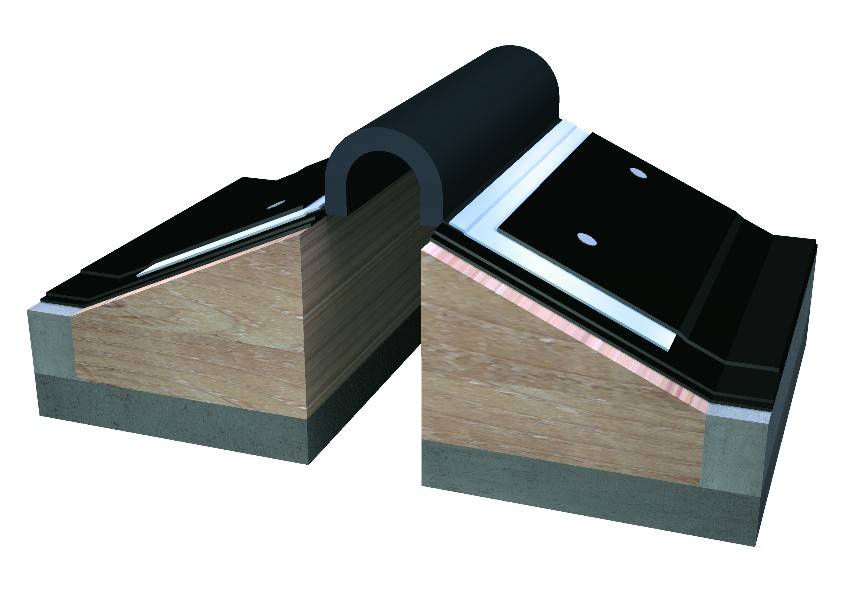

The 672 bellows canted exterior expansion joint system for roofs will remain watertight during even the most severe seismic events.
Features and benefits:
- Splicing kits of simple installation.
- Black EPDM bellows with galvanized flanges standard.
- White EPDM bellows available.
- Optional PVC bellows and flange available.
- Optional stainless steel, copper, aluminium and EPDM flanges available.
- Factory preformed transitions available.
- Available in 10" lengths as standard.
- 50' rolls available for some profiles.
General information
Shape | Other Guidance for specification option: Arched. |
Color | Black White |
Material | Rubber Guidance for specification option: EPDM - synthetic plastic. Thermoplastic olefin PVC-U |
Warranty description | Five year Guidance for specification option: Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations. |
Uniclass | |
CAWS | J42/375 Minor movement joints in substrates J41/375 Minor movement joints in substrates J21/380 Movement joints |
Specification data - Metal section movement joints
Joint width (nominal) | 51 mm. |
Edging | |
Material | Stainless steel.Guidance for specification option: As standard. Aluminium.Copper.Rubber.Guidance for specification option: EPDM. |
Finish | Galvanized.Guidance for specification option: As standard. |
Colour | Natural. |
Insert | |
Material | EPDM.Guidance for specification option: EPDM bellows (as standard). PVC-U.TPO. |
Colour | Black.Guidance for specification option: As standard. White. |
Options | Not required. EPDM flanges. Metal flanges. Wrap around vapor barrier. Fire blanket system. |
Type | Roof to roof. |
Sightline | 181 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
