Acoustic mat - Isocheck Re-Mat 3 & 5 - Acoustic layer to be bonded over screed
Verified by manufacturer 1 month ago
Re-Mat 3
Re-Mat 3
Acoustic mat for impact improvement of all types of floor covering on concrete floors.
Application
- For bonding to concrete subfloors.
- Suitable for conversions, refurbishments or new build with or without water-based underfloor heating systems.
- For all types of floor finishes including ceramic tiles, stone, marble, vinyl, carpet and solid or laminate wood.
Description

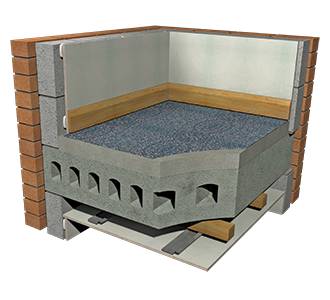

The Isocheck Re-Mat impact improvement system is designed to reduce impact sound transmission through concrete floor decks and can receive all types of floor finishes including ceramic tiles, stone, marble, vinyl, carpet and solid or laminate wood.

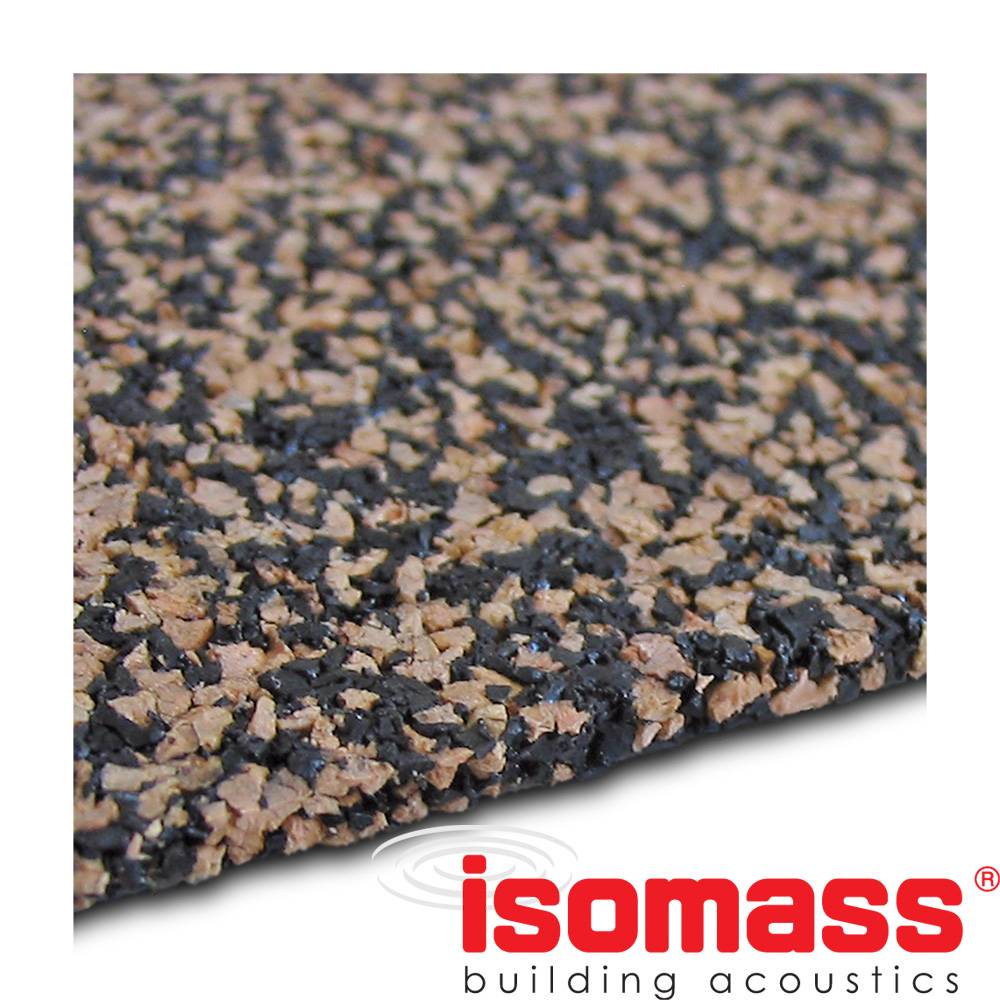

Isocheck Re-Mat 3 consists of a 3.5 mm and Re-Mat 5 a 4.5 mm layer of matting constructed from waste rubber and cork mixed with a polymer binder to form a resilient mat.
When installed as part of a complete party floor construction either system enables a concrete floor to meet the sound transmission standards of Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.
Treated floor can meet with the Robust Detail options A and B within E-FC-8, when used in conjunction with Isopoli 5 mm underscreed layer.
General information
Color | Black Beige |
Material | Rubber Cork |
Length | 15000 mm |
Width | 1000 mm |
Height | 3 mm 4.5 mm |
Uniclass | |
CAWS | M50/25 Carpeting M50/170 Carpeting M50/20 Sheeting M50/150 Sheeting M50/10 Resilient floor tiling M50/110 Resilient floor tiling M40/10 Natural stone covering to M40/115 Natural stone covering to M40/5 Tiling to M40/110 Tiling to K21/146 Laminate flooring K21/145 Composite laminate flooring K21/20 Composite laminated flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/10 Wood laminate flooring |
Specification data - Resilient layer insulation
Material | Waste rubber and cork mixed with a polymer binder. |
Density | 600 kg/m³. |
Thickness | 3 mm. |
Sound insulation rating | 17 dB (ΔLw). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Portugal |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Isocheck ReMat 3&5 - Safety Data Sheet
Isocheck ReMat 3&5 - Data Sheet - v5.12
Typical Floor Detail - Isocheck ReMat 5
