Barbican® Extra Fencing

Name: Barbican® Extra Fencing
Brand: Jacksons Fencing
SKU: sHiZA7p9fZieQuhhk3W4KW

Verified by manufacturer 19 days ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

Square pale security fencing with anti-climb topping.

Jump to:

0800 408 4757 Website

Application

Transport hubs and railways; commercial premises.

Description

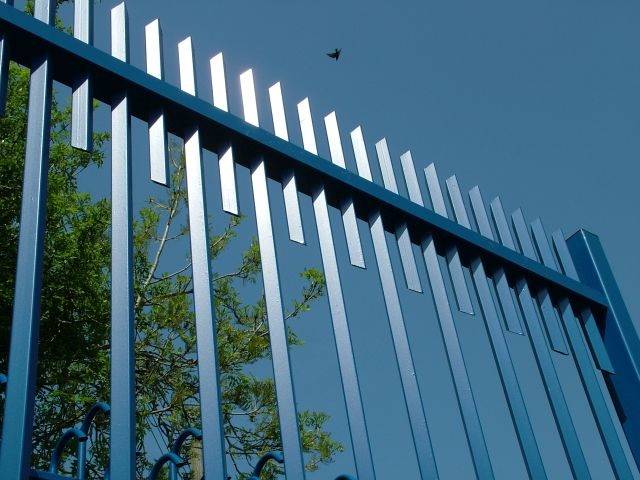

Square pale security fencing with anti-climb topping. Panels are identical to standard Barbican® panels, with the addition of extra, short pales through the top rail which ensure that even the smallest hand or foot cannot gain purchase, making it virtually impossible to climb or scale.

Features and benefits:

Anti-climb design.
Vandal-proof, post-to-panel connectors.
Welded pale-through-rail-construction.
Posts can be customized for barbed wire/ razor wire/ Rota Spike®.
Vertical pale spacing conforms to Building Regulations for anti-trap.
Can be made to accommodate sloping ground.
Correspond(s) to the generic component/material 'steel; in the BRE Global Guide online generic specification(s) 'Galvanised steel railings', which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
Matching single or double-leaf gates are available (specified separately).
25-year guarantee.

General information

Color	Black Green Other
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Width	2484 mm 3000 mm
Height	2500 mm 3000 mm 2000 mm
Warranty description	25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing

Product range	Vertical Bar Railings

Specification data - Steel vertical bar fencing systems

Posts	80 x 60 mm. Guidance for specification option: Rectangular hollow section (RHS) posts with anti-tamper fixings, with internal connectors and no visible bolts. See Panel guidance for overall post length.
Post foundations	Set in concrete. Guidance for specification option: Set in concrete, as standard. Base-plated. Guidance for specification option: Plated to bolt down onto concrete. Cranked. Guidance for specification option: To suit wall mounting.
Rails	Horizontal, rectangular, hollow section rails 60 x 40 mm. Guidance for specification option: 2250–2500 mm high: two rails; 3000 mm high: three rails. Capable of supporting the panel's weight without the need for central supports.
Panels	25 x 25 mm tubular steel pales, 2250 mm-high. Guidance for specification option: Overall post length: 3050 mm; post centres: 2484 mm. 25 x 25 mm tubular steel pales, 2500 mm-high. Guidance for specification option: Overall post length: 3300 mm; post centres: 2484 mm. 25 x 25 mm tubular steel pales, 3000 mm-high. Guidance for specification option: Overall post length: 3800 mm; post centres: 2484 mm. Manufacturer guidance Pales passed through rails with standard spacing at 129 mm, with additional short pales through top rail between each pale.
Fence topping	Additional short pales between each full-length pale.
System accessories	None. Matching gates. Guidance for specification option: To be specified separately.

Finish/ Colour	Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
