Blend Cube Back To Wall Toilet Bowl
Verified by manufacturer 8 months ago

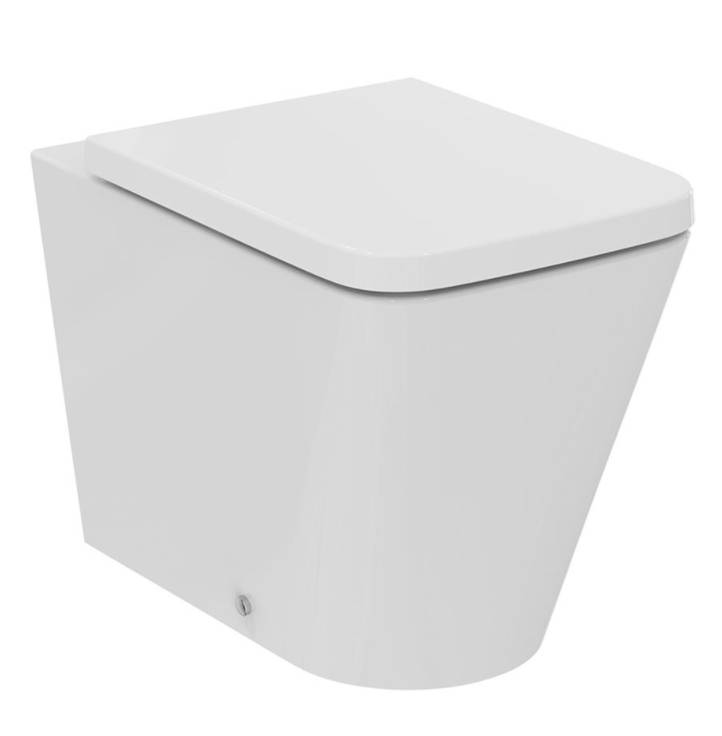

Back to wall toilet bowl with horizontal outlet.
Application
For use as back to wall toilet bowl with horizontal outlet.
Description
Blend Cube back to wall toilet bowl with horizontal outlet,
Features and benefits:
- Part of an extensive range
- Aquablade flush technology
- Water efficient
- Slow close with quick release seat option
- Weight: 30.10 kg.
- WC bowl screwed to floor using concealed brackets (supplied).
- Oleas, Solea, Altes & Symfo are compatible with Prosys cisterns only.
- Please see flush plate section for full finish/colour options.
General information
Color | White |
Finish | Gloss |
Material | Vitreous china |
Shape | Square |
Length | 565 mm |
Width | 355 mm |
Height | 400 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | Polished, white. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Dimensions | 565 x 365 x 400 mm. Guidance for specification option: L x W x H. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | China |
Recyclability | 100 |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
