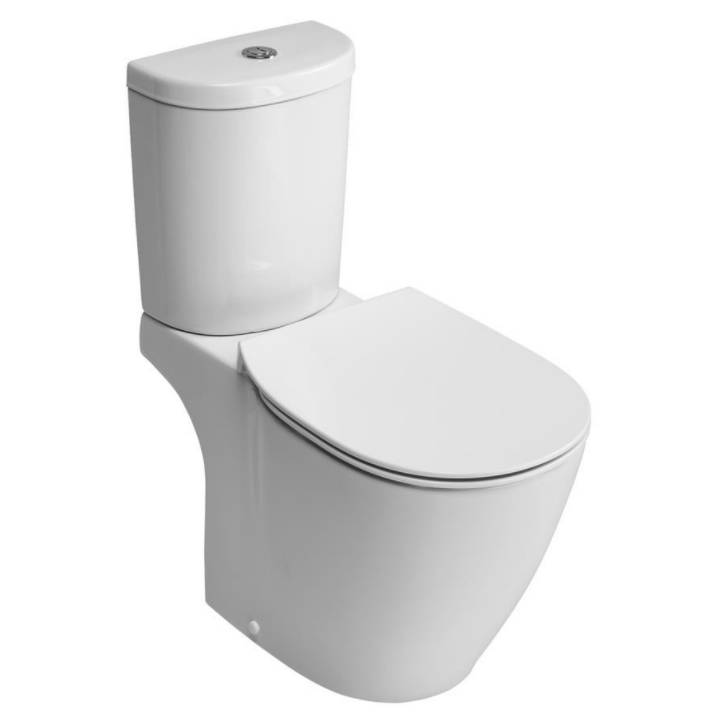

Concept Arc Close Coupled Toilet With Aquablade Technology
Verified by manufacturer over a year ago
Concept close coupled WC pan.
Application
Suitable for domestic or commercial use.
Description
Concept close coupled toilet bowl with horizontal outlet and Aquablade flush technology.
Features and benefits:
- Domestic and commercial use.
- Innovative Aquablade flush technology.
- Slow close with quick release seat option.
- Water saving.
- Part of the extensive Concept Suite.
General information
Color | White |
Material | Vitreous china Guidance for specification option: Vitreous china. |
Shape | Other Guidance for specification option: Curved. |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Top inlet. |
Outlet | Horizontal back outlet. |
Integral accessories | Not required.E7726 - WC Seat.Guidance for specification option: Concept Slim seat & cover - slow close. E7969 - Cistern.Guidance for specification option: Concept Cube close coupled cistern with dual flush valve - 4/2.6 litre, E3222 WC Outlet Connector.Guidance for specification option: Panekta outlet connector, finned pattern to convert horizontal outlet wcs to P trap. E7725 - WC Seat.Guidance for specification option: Concept toilet seat and cover, slim. E7859 - Cistern.Guidance for specification option: Concept Cube close coupled cistern with dual flush valve - 6/4 litre. E7917 - WC Seat.Guidance for specification option: Concept / Studio toilet seat and cover - slow close. E7918 - WC Seat.Guidance for specification option: Concept toilet seat and cover. E7726 - WC Seat.Guidance for specification option: Concept Slim seat & cover - slow close. E7855 - Cistern.Guidance for specification option: Concept Delay fill 4/2.6 litre cistern bottom supply. E3222 - Connector.Guidance for specification option: Panekta finned connector 14 degree. E7725.Guidance for specification option: Concept thin seat and cover normal close. E7860 - Cistern.Guidance for specification option: Concept Arc close coupled 6/4 litre cistern, dual flush push button valve, bottom supply and internal overflow. E7917 - WC Seat.Guidance for specification option: Concept toilet seat and cover, slow close. E7918 - WC Seat.S4300 - WC Outlet Connector.Guidance for specification option: Panekta outlet connector to convert horizontal outlet wcs to S or turned P trap. S4305 - WC Outlet Connector.Guidance for specification option: Panekta outlet connector to convert horizontal outlet wcs to P trap. |
Weight | 27.20 kg. Manufacturer guidanceNet weight. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
