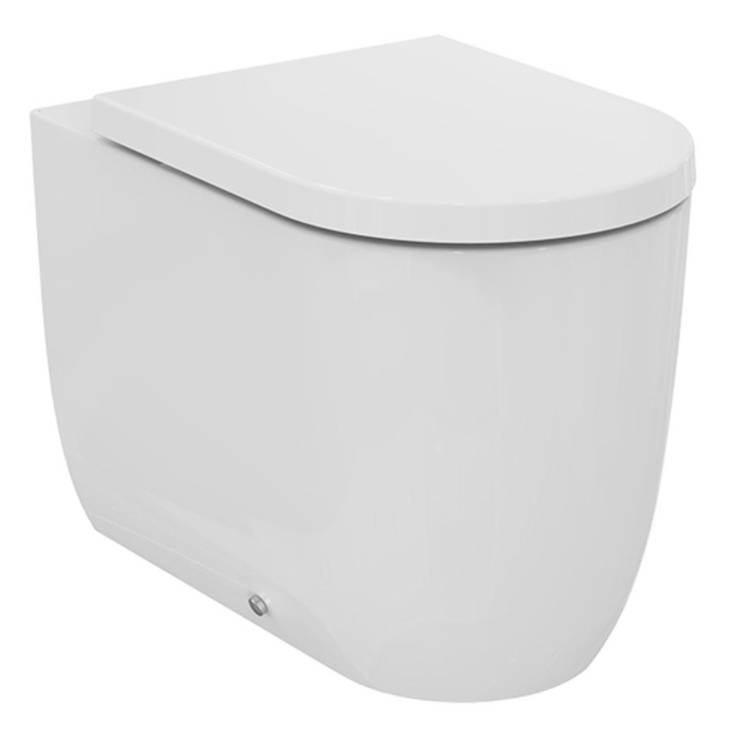

Blend Curve back to wall toilet bowl with horizontal outlet

Verified by manufacturer 7 months ago

Ideal Standard (UK) Ltd

Back to wall toilet bowl with horizontal outlet.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for use as back to wall toilet bowl with horizontal outlet.

Description

Blend Curve back to wall toilet bowl with horizontal outlet.


Features and benefits:

  • Part of an extensive range.
  • Aquablade flush technology.
  • Water efficient.
  • Slow close with quick release seat option.
  • Weight: 31.60 kg.
  • WC bowl screwed to floor using concealed brackets (supplied).
  • Oleas, Solea, Altes & Symfo are compatible with Prosys cisterns only.
  • Please see flush plate section for full finish/colour options.


General information

Color

White

Finish

Gloss

Material

Vitreous china

Shape

Rectangle

Length

560 mm

Width

355 mm

Height

400 mm

Warranty description

Lifetime

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Back-to-wall, washdown.

Connecting dimensions

To BS EN 33.

Materials

-

Body

Vitreous china.

Finish and colour

Polished, white.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

Sustainability data

Contains Red List materials

No

Country of product manufacture

China

Recyclability

100

BIM objects

Platform Compatible Version
Revit
-

1
