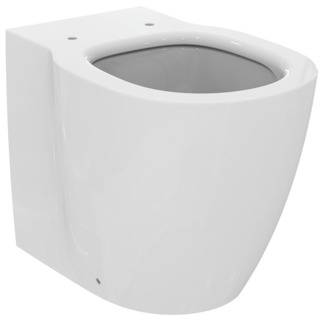

Concept Back-To-Wall Toilet Bowl

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

A back-to-wall toilet bowl with horizontal outlet.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for education, hotel, office and residential use.

Description

Concept back-to-wall toilet bowl with horizontal outlet and

Aquablade flush technology.


Features and benefits:

  • Innovative Aquablade flush technology.
  • Slow close with quick release seat option.
  • Part of the extensive Concept suite.
  • Water saving.

General information

Color

White

Material

Vitreous china

Shape

Other

Guidance for specification option:

Curved.

Width

368 mm

Height

400 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Back-to-wall.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

Net weight

26.3 kg.

Dimensions

368 x 548 mm.

Guidance for specification option:

Width x depth.

BIM objects

Platform Compatible Version
Revit
-

1
