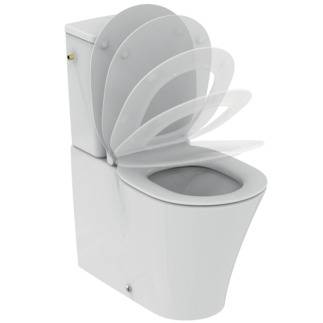

Connect Air Close Coupled Back-To-Wall Toilet Bowl

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

Close coupled back to wall toilet.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for domestic and commercial use.

Description

Connect Air close coupled back-to-wall toilet bowl with

horizontal outlet and Aquablade flush technology.

The WC is screwed to floor using concealed brackets and the cistern is screwed to wall.


Features and benefits:

  • Push button dual flush cistern.
  • Part of an extensive range.
  • Slow close with quick release seat option.
  • Water efficient.
  • Choice of seat style.
  • Aquablade flush technology.


General information

Color

White

Finish

Smooth

Material

Vitreous china

Shape

Other

Guidance for specification option:

Curved.

Length

665 mm

Width

366 mm

Height

400 mm

Warranty description

Lifetime

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Back-to-wall.

Guidance for specification option:

Close coupled.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

Net weight

29.74 kg.

Cistern

Push button, dual flush.

Dimensions

366 x 663 mm.

Guidance for specification option:

Width x depth.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Bathroom Collections brochure

Bathroom Collections brochure
