Canto Toilet Cubicles

Verified by manufacturer 4 months ago

Washroom Washroom Ltd

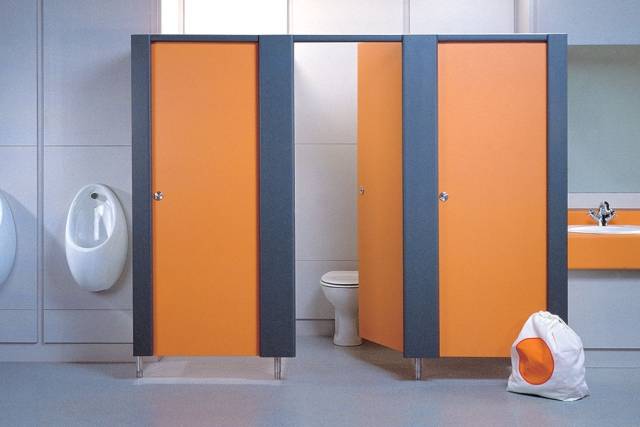

Laminate toilet cubicles with post-formed pilasters and headrail.

Jump to:
+44 (0) 800 999 8888 Website

Application

For use as a toilet cubicle or retail changing cubicle in medium traffic areas of schools, industrial and commercial buildings.

Description

Features and benefits:

  • Manufactured from high pressure laminate (HPL).
  • Features rounded, post-formed vertical edges to the pilasters.
  • Choice of a satin anodized aluminium headrail or a post-formed insert to match the pilaster detail.
  • Retail changing cubicles are available with integral benching and inward or outward opening doors.

General information

Material

High pressure laminate (HPL)

Size

-

Manufacturer guidance

Height: 1950 mm, with 150 mm floor clearance.

Width

-

Manufacturer guidance

1500–1800 mm.

Height

1950 mm

Warranty description

One year

Manufacturer guidance

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Canto

Specification data - Panel cubicle systems

Pilasters

28/ 30 mm MR MDF faced on both sides with high pressure laminate (HPL).

Doors

18 mm MR MDF faced on both sides with high pressure laminate (HPL).

Lippings

Lipped with matching laminate.

Lipped with PVC.

Manufacturer guidance

Vertical edges to pilaster are postformed, all edges lipped with matching laminate or corresponding PVC.

Hardware

Pedestal legs.

Stainless steel 4” butt hinges.

Easily operable indicator bolt.

Coat hook.

Channel cleats.

System accessories

Grab rails.

Manufacturer guidance

Accessories/ Other requirements:

Cubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available.

Type

Retail changing cubicle.

Standard toilet cubicle.

Sustainability data

Country of product manufacture

United Kingdom
