Bambino Cubicles - Toilet cubicles

Verified by manufacturer 3 months ago

Washroom Washroom Ltd

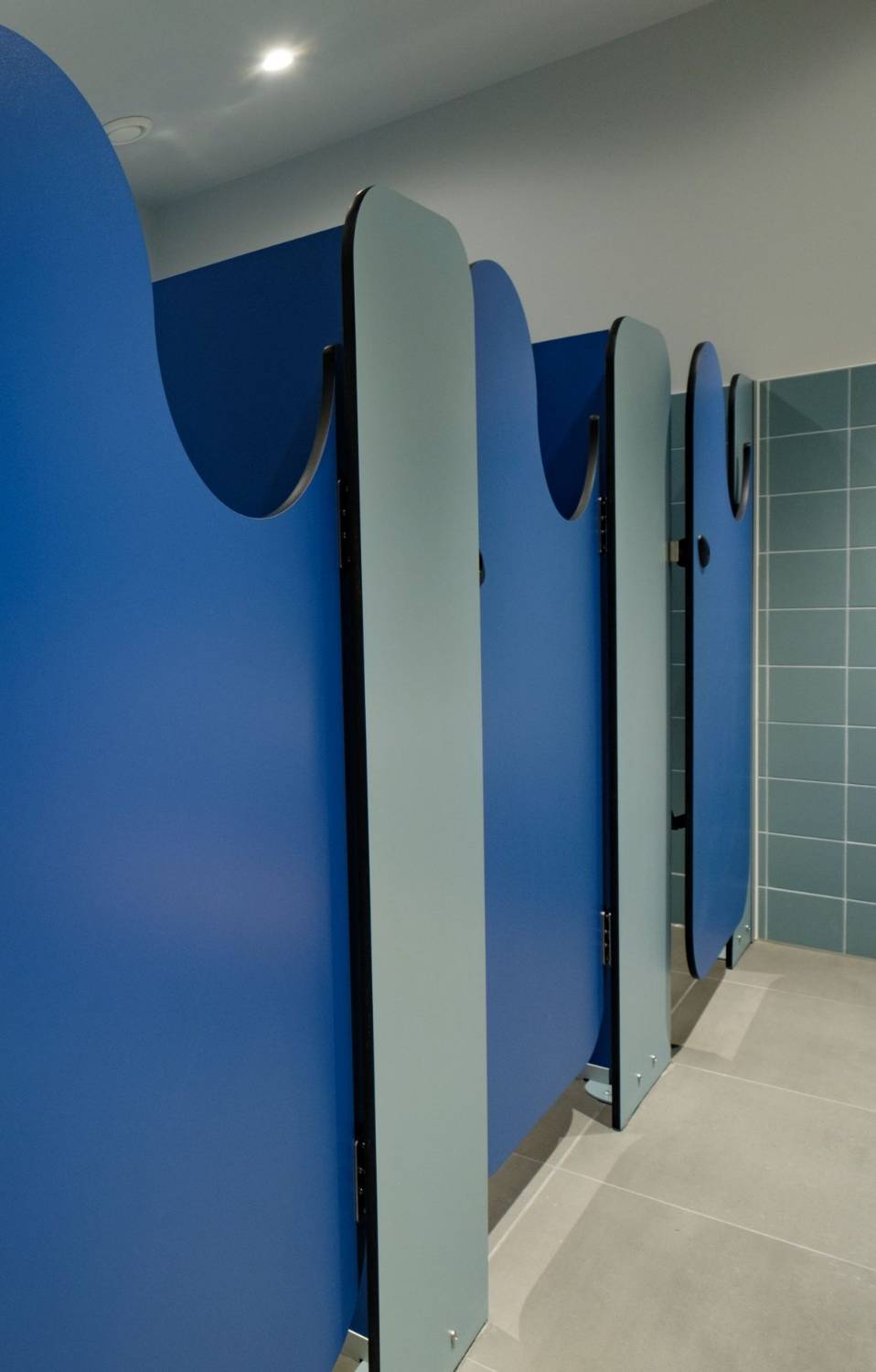

Toilet cubicle with reduced height doors.

Jump to:
BOS
+44 (0) 800 999 8888 Website

Application

Suitable for use as a toilet cubicle.

Description

Toilet cubicles with laminated doors, pilasters and partitions.

General information

Color

-

Manufacturer guidance

Arpa, Abet,Sonae, Formica, Polyrey.

Material

Solid grade laminate (SGL)

Guidance for specification option:

A wide range of materials available, please contact manufacturer for details.

Size

Guidance for specification option:

Size:

1250 mm overall height, including 150 mm floor clearance.

Manufacturer guidance

2075 (top of pilaster), 1950 (top of partition) x 1500-1800 mm.

Width

-

Manufacturer guidance

1500–1800 mm.

Height

2075 mm

Warranty description

One year

Guidance for specification option:

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Bambino

Specification data - Panel cubicle systems

Panels

12/ 13 mm solid grade laminate.

Panel supports

Legs: Tubular and rounded off design manufactured from satin anodised aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.

Pilasters

12/ 13 mm solid grade laminate.

Doors

12/ 13 mm solid grade laminate.

Lippings

Edges machined to smooth finish.

Hardware

Stainless steel 4 inch butt hinges, coat hook, pedestal legs with easily operable cast plastic indicator bolt, full length satin anodised aluminium channels and solid grade laminate headrail straps.

System accessories

Grab rail.

Manufacturer guidance

Bambino toilet cubicles are available in configurations to comply with Approved Document M, complete with outward opening doors. A stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors as standard. Complementary grab rails are also available.

Type

Solid grade laminate panel.

Manufacturer guidance

Type:

- MFC toilet cubicle:


  • Doors, pilasters and partitions: 19 mm moisture resistance (MR) melamine faced chipboard (MFC)
  • Colour: To be confirmed from WW standard MFC range.
  • Headrail: Satin anodized aluminium with aerofoil profile.

- Laminated toilet cubicle:


  • Doors, pilasters and partitions: 18 mm MR MDF faced on both sides with high pressure laminate (HPL).
  • Colour: To be confirmed from WW standard HPL range.
  • Headrail: Satin anodized aluminium with aerofoil profile.

- Laminated toilet cubicle with postformed pilasters and headrail:


  • Pilasters: 32 mm MR MDF faced on both sides with high pressure laminate (HPL).
  • Doors and partitions: 18 mm MR MDF faced on both sides with high pressure laminate (HPL).
  • Colour: To be confirmed from WW standard HPL range.
  • Edge treatment: Vertical edges to pilaster are postformed, all edges lipped with matching laminate or corresponding PVC.
  • Headrail: Satin anodized aluminium angle complete with postformed laminate section fixed between pilasters.

- Toilet cubicle with solid grade laminate panel:


  • Doors, pilasters and partitions: 12/ 13 mm solid grade laminate (SGL).
  • Colour: To be confirmed from WW standard SGL range, subject to depth of partition.
  • Edge treatment: Exposed edges machined to a smooth finish with radiused safety corner details to doors and pilasters.
  • Headrail: Satin anodized aluminium with aerofoil profile.


Sustainability data

Country of material origin

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015

2

IFC

IFC2X3

2
