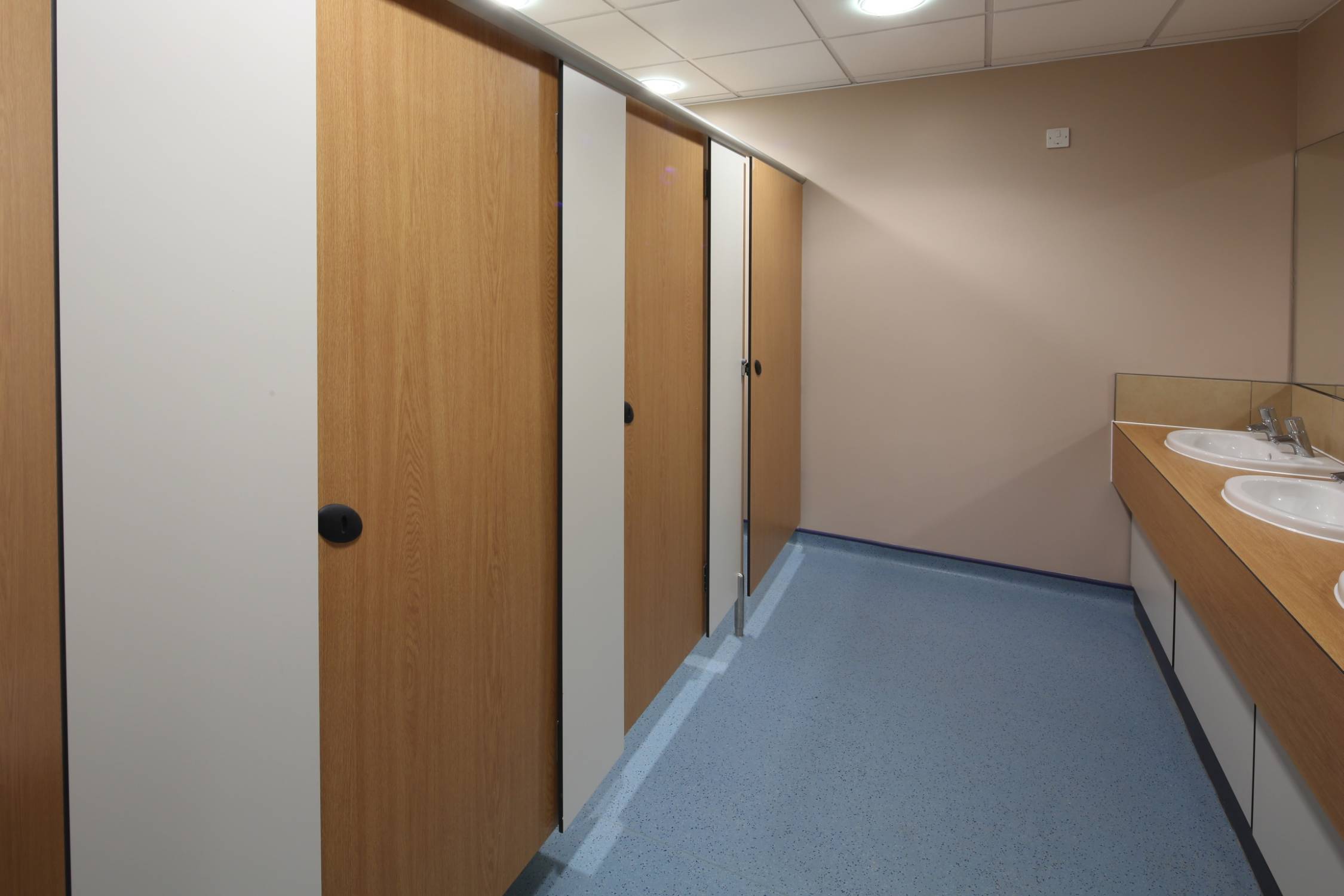

Aria Cubicles - Changing cubicles

Verified by manufacturer 3 months ago

Washroom Washroom Ltd

Dry retail change cubicles with integral benching.

Jump to:
BOS
+44 (0) 800 999 8888 Website

Application

Suitable as retail changing or toilet cubicles.

Description

Features and benefits:

  • Integrated benching.
  • Full height, rebated flush with a virtually seamless facade.
  • D-shaped satin anodized aluminium headrail.

General information

Color

-

Manufacturer guidance

Arpa, Abet, Sonae, Formica, Polyrey

Material

Medium density fibreboard (MDF)

Guidance for specification option:

Moisture resistant MDF with high pressure laminate.

Size

-

Manufacturer guidance

2400 mm overall height, including 20 mm floor and ceiling.

Width

1500 mm

1800 mm

Manufacturer guidance

1500–1800 mm.

Height

1950 mm

Warranty description

One year

Guidance for specification option:

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Alto

Specification data - Panel cubicle systems

Panels

18 mm moisture resistant MDF with high pressure laminate both sides.

Panel supports

SAA or stainless steel pedestal legs.

Pilasters

18 mm moisture resistant MDF with high pressure laminate both sides, edged in either 2 mm PVC or matching laminate.

Doors

18 mm moisture resistant MDF with high pressure laminate both sides, edged in either 2 mm PVC or matching laminate.

Lippings

Edge treatment: lipped first with hardwood, vertical edges rebated to enable flush fit with adjoining panel.

Hardware

Stainless steel 4 inch butt hinges.

Channel cleats and coat hooks.

Easily operable indicator bolts.

Product Reference

Aria Cubicle

Outward opening doors

Not required.

Required.

Manufacturer guidance

Can be accommodated and come complete with satin polished stainless steel pull handles to the outside face of the doors.

Finish/ Colour

Guidance for specification option:

Insert requirements.

Fittings

Stainless steel 4” butt hinges, channel cleats and coat hooks, easily operable indicator bolts with either SAA or Stainless steel pedestal legs.

Sustainability data

Country of material origin

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

2
