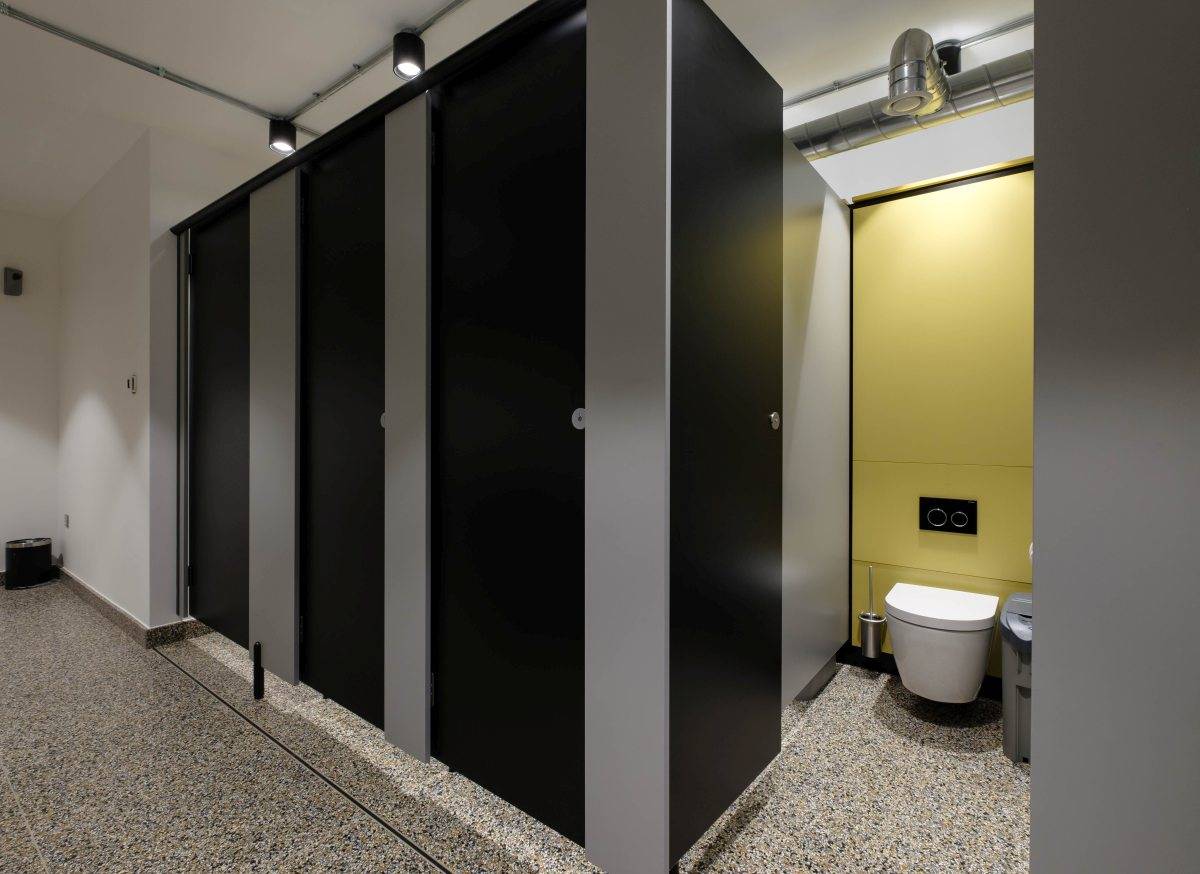

Aria Toilet Cubicles

Verified by manufacturer 3 months ago

Washroom Washroom Ltd

Laminated toilet cubicles, with or without post-formed pilaster and headrail.

Jump to:
+44 (0) 800 999 8888 Website

Application

For use as toilet cubicles.

Description

Laminated toilet cubicles:

  • Doors, pilasters and partitions: 18 mm MR MDF faced on both sides with high pressure laminate (HPL).
  • Edges lipped with matching laminate or corresponding PVC.
  • Headrail: Satin anodized aluminium with aerofoil profile.

General information

Color

-

Manufacturer guidance

Arpa, Abet,Sonae, Formica, Polyrey.

Material

Medium density fibreboard (MDF)

Guidance for specification option:

Moisture resistant MDF with high pressure laminate.

Size

-

Manufacturer guidance

1950 mm overall height including 150 mm floor clearance.

Length

2100 mm

Width

1500 mm

1800 mm

Height

1950 mm

Warranty description

One year

Manufacturer guidance

From practical completion

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Aria

Specification data - Panel cubicle systems

Panels

18 mm moisture resistant MDF with high pressure laminate both sides.

Panel supports

SAA or stainless steel pedestal legs.

Pilasters

18 mm moisture resistant MDF with high pressure laminate both sides, edged in either 2 mm PVC or matching laminate.

Doors

18 mm moisture resistant MDF with high pressure laminate both sides, edged in either 2 mm PVC or matching laminate.

Lippings

Lipped with corresponding PVC.

Lipped with matching laminate.

Manufacturer guidance

Edged in either 2 mm PVC or matching laminate.

Hardware

Easily operable indicator bolt.

Coat hook.

Channel cleats.

Stainless steel 4 inch butt hinges.

System accessories

Grab rails.

Manufacturer guidance

Aria cubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available.

Legs

SAA.

Stainless steel.

Manufacturer guidance

Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.

Sustainability data

Country of material origin

United Kingdom
