Classic Sliding Pocket Door System – Double

Verified by manufacturer 5 months ago

70/90mm - Solid

Eclisse UK Variant:

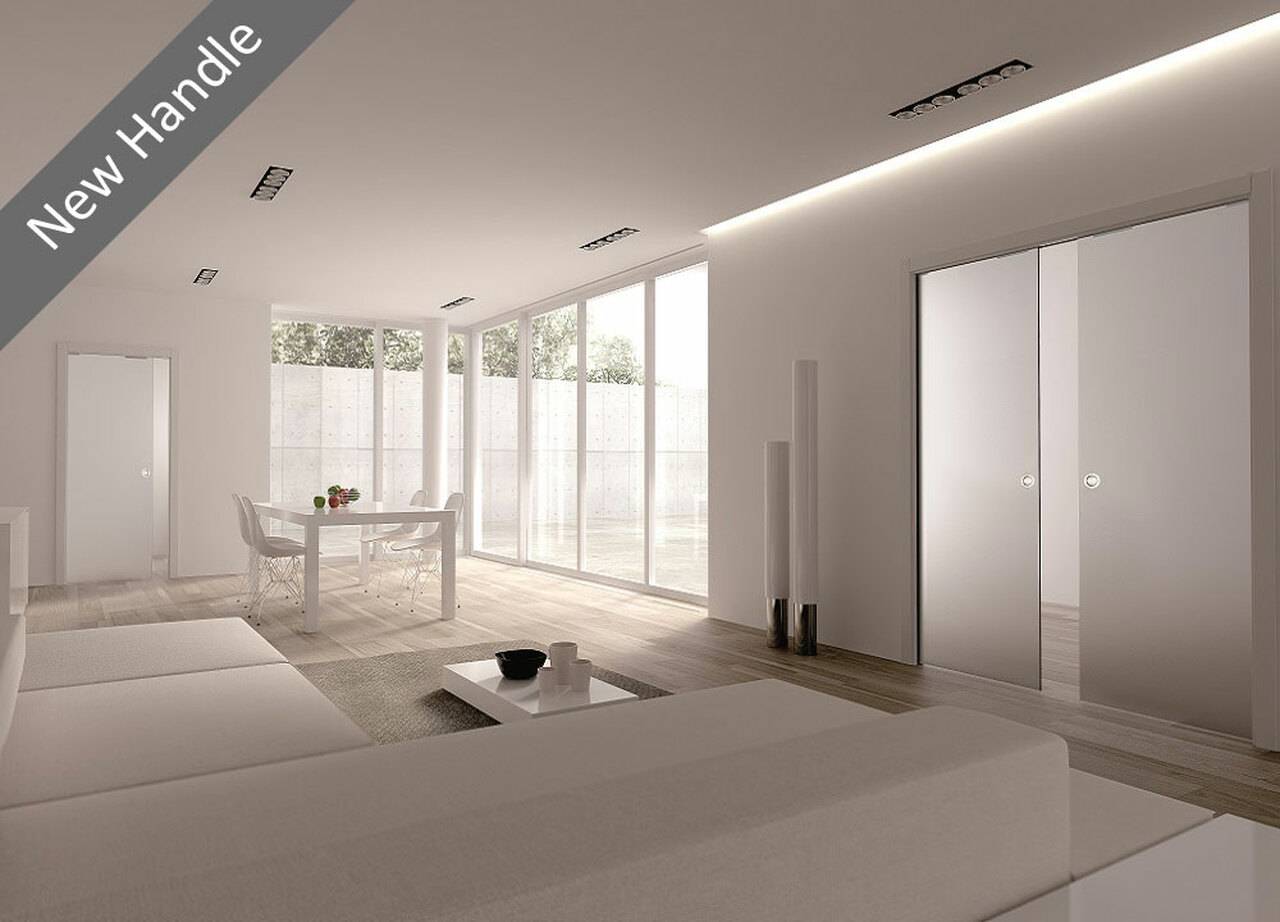

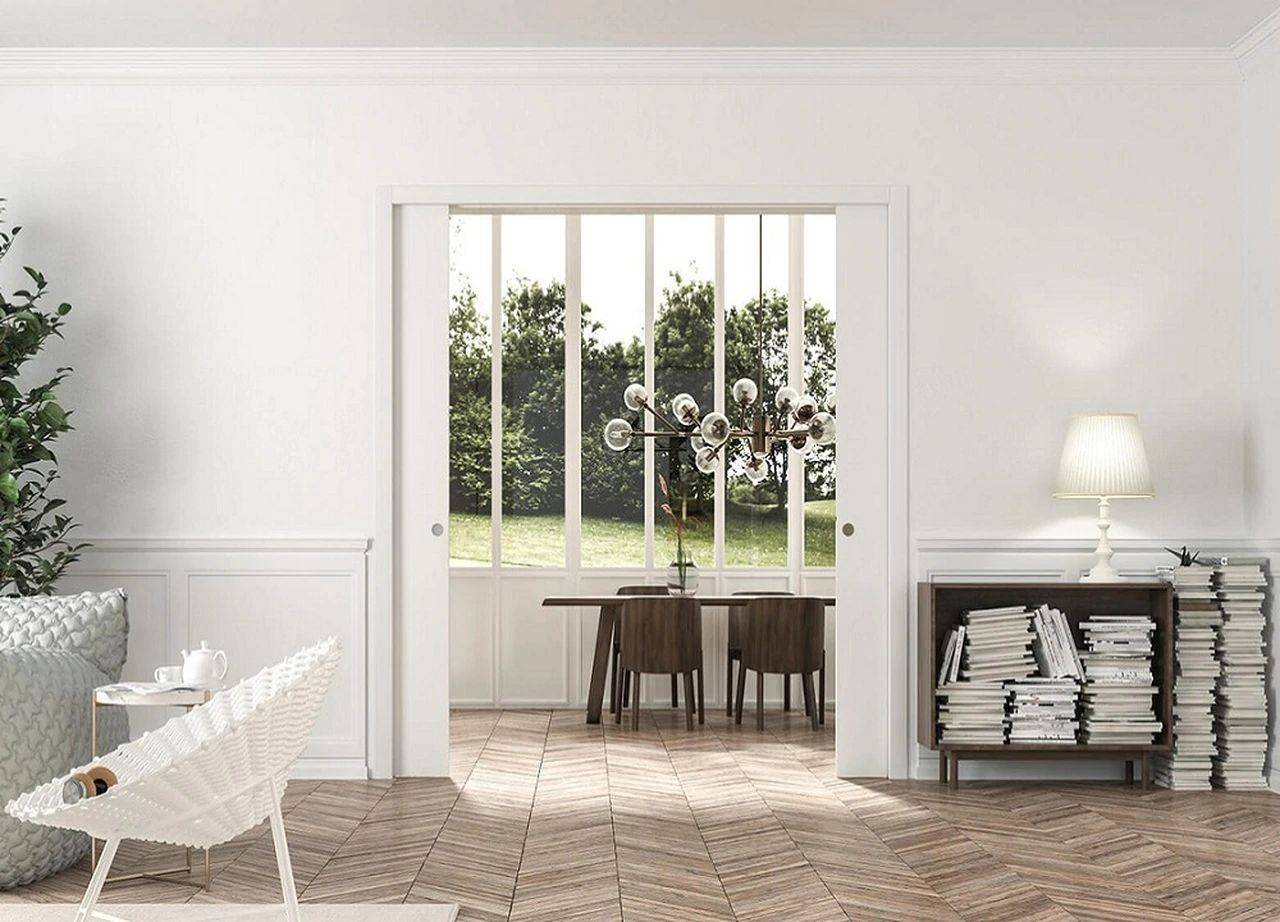

Top-hung, manually operated double sliding pocket door system complete with timber lining kit.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

Internal sliding pocket doors for residential applications.

Description

Top-hung, manually operated double sliding pocket door system complete with timber lining kit. A simple, functional, strong and reliable double sliding pocket door system. A large range is available for both UK/ ROI standard size doors and made-to-measure systems (for doors up to 2000 mm wide and almost 3000 mm high). Available in five variations; 70/90mm solid door and glass door, for wall thicknesses 95–115 mm and 75/100mm solid door, glass door and wiring ready for 100–125 mm wall thicknesses. Wiring ready allows back boxes up to 44 mm deep to be installed on each side of the pocket.


Features and benefits:

  • The two pockets and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the doors will run true and in line.
  • Doors slides into the pocket in the wall.
  • Wide range of sizes to suit standard UK door sizes. Bespoke sizes available up to a height of 2.9 m (see technical data sheet).
  • Door panels up to 100 kg (150 kg on request).
  • Suitable for use with 35–44 mm thick solid doors and 8/10 mm thick glass doors.
  • Solid doors, plasterboard and final architrave not included.
  • A fire-rated version is available (specified separately).
  • Matching single door system is available (specified separately)
  • Quick and easy to assemble and install.
  • Complete with full jamb kit for a professional finish.
  • Maintenance-free track and runners.
  • Fully extractable track, no need to break into the wall should the need to remove it arise.
  • Fully adjustable front and rear door stops.
  • Self-centring floor guide, clicks into frame.
  • Metal anti-warp profile - slots into a channel in underside of doors. Not visible but ensures that if the door(s) warps it continues to slide smoothly.

General information

Material

Steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system and runners.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

P21/10 Door track and running gear

L20/525 Sliding pocket doors

P21/350 Door track and running gear

L20/65 Sliding pocket doors

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

Paired leaf top hung.

Track system

Manufacturer's standard.

Guidance for specification option:

Extractable: Track can be extracted without having to break into the wall.

Runners are tested to 100 000 cycles.

Door leaves

-

Construction

Doors specified separately.

Manufacturer guidance

Doors to be specified separately.

Operation

Manual.

Hardware

Not required.

OSO8 Polished brass simple flush pull.

OSC4 Antique brass simple flush pull.

OSC2 Polished chrome simple flush pull.

OSC1- Satin chrome simple flush pull.

As schedule.

Accessories

None.

Double door co-ordination kit.

Guidance for specification option:

Doors open and close simultaneously.

ECLISSE BIAS®.

Guidance for specification option:

Soft close up to 40 kg with anti-slam.

ECLISSE BIAS® DS.

Guidance for specification option:

Bi-directional soft close up to 40 kg with anti-slam.


Soft close.

Guidance for specification option:

Slide the door towards the close position and the soft close takes over.

Execution

Frame should be installed at finished floor level. Consult manufacturer for detailed installation instructions and details of the inbuilt 8 mm height tolerance.

Doors

626/ 626 x 2040 mm.

Guidance for specification option:

Maximum passage size: 1200 x 2030 mm.

Overall size: 2494 x 2115 mm.

726/ 726 x 2040 mm.

Guidance for specification option:

Maximum passage size: 1400 x 2030 mm.

Overall size: 2894 x 2115 mm.

826/ 826 x 2040 mm.

Guidance for specification option:

Maximum passage size: 1600 x 2030 mm.

Overall size: 3294 x 2115 mm.

926/ 926 x 2040 mm.

Guidance for specification option:

Maximum passage size: 1800 x 2030 mm.

Overall size: 3694 x 2115 mm.

1026/ 1026 x 2040 mm.

Guidance for specification option:

Maximum passage size: 2000 x 2030 mm.

Overall size: 4094 x 2115 mm.

Show more

Manufacturer guidance

Maximum door panel weight: 100 kg; 150 kg available on request.

Finished wall thickness

95 mm.

115 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.
