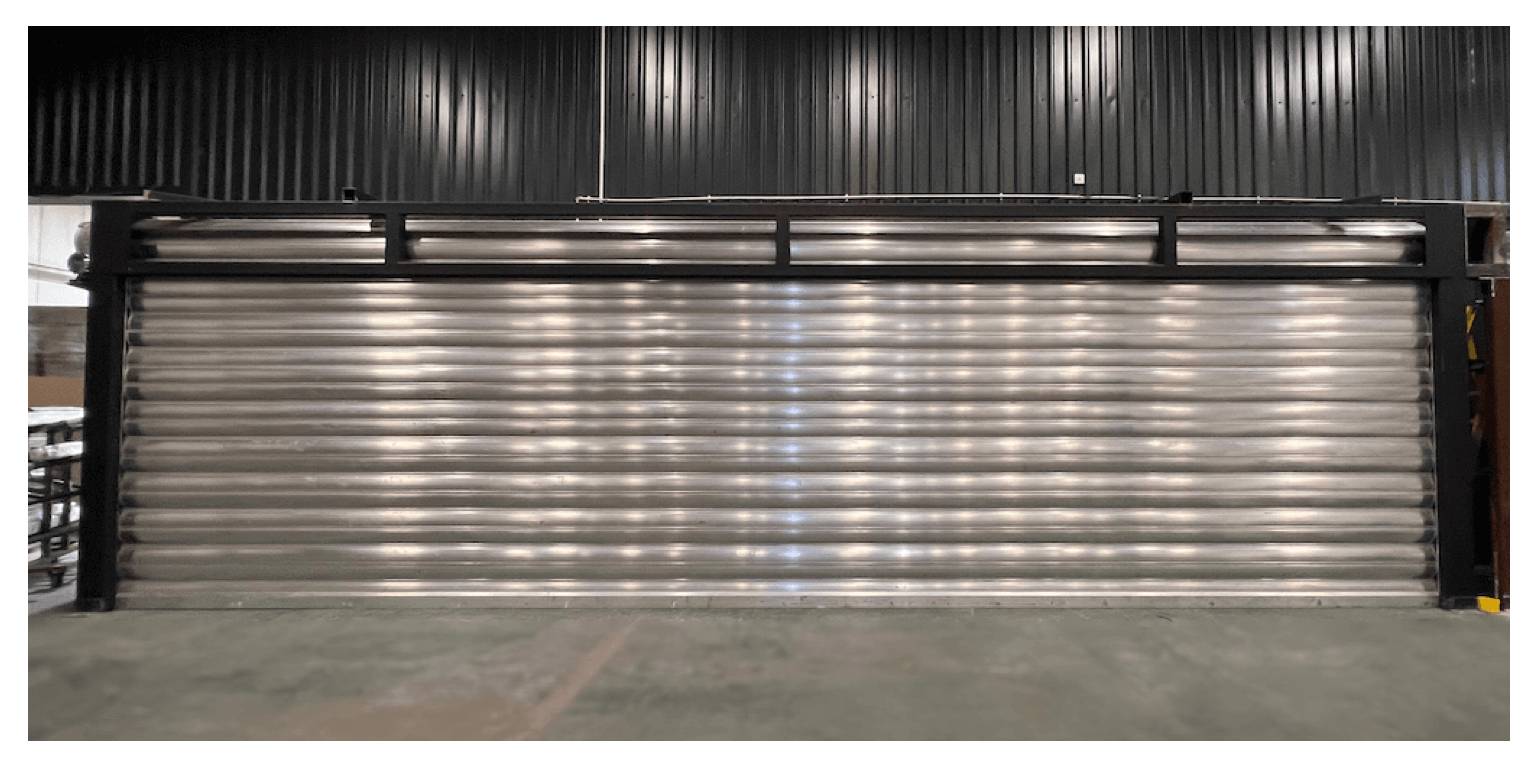

E130 Elite, E10 / SR5 Aluminium Security Shutter
Verified by manufacturer 6 months ago
CHAS
Certificate type
Constructionline Gold
Certificate type
Secured By Design
Certificate type
LPCB Certified high security shutter. Tested to the latest standard LPS 1175 (issue8) to E10 rating, ideally suited to high security situations, such as national security, banks and public buildings
Application
Suitable for high security commercial, industrial and public applications.
Description
An E10 (previously SR5) rated aluminium security shutter suitable for high security commercial applications and openings of all sizes up to 90 m². The E130 Elite has been tested by the Loss Prevention Certification Board to the latest LPS 1175 (Issue 8) standard.
This product has an advanced aluminium profile with anti-lift element. The shutter must be face fixed, internally. The E130 Elite is also available to C5 (SR3) or D10 (SR4).
General information
Color | Other Guidance for specification option: Option to powder coat any RAL / BS colour. Consult manufacturer and insert requirements. |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Opening sizes | Guidance for specification option: Up to 90 m². 10 000 mm maximum width. Manufacturer guidanceConsult literature for box and guide sizes available. |
Format | Internal. |
Arrangement | Vertical, internal face fix. |
Shutter curtain. | |
Lath material | Double-skinned extruded aluminium slat with an additional anti-lift profile to eliminate the need for additional locking systems. |
Profile | 105 mm +25 mm anti-lift profile. |
Finish and colour | BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. Manufacturer guidanceThe E130 can be powder coated to any RAL / BS colour reference. |
Frame and guides | |
Material | Extruded aluminium guide channels with rubber weather seal.Manufacturer guidanceSteel casing available on request. Not provided as standard. |
Colour | BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. Manufacturer guidanceThe E130 can be powder coated to any RAL / BS colour reference. |
Operation | |
Mode | Tubular Motor: NRG Econom tubular motor with internal rocker or external key switch as standard with safety brake as appropriate to comply with legislation.Guidance for specification option: Manual override facility and crank handle as required. Outboard Motor: GfA single or three phase motor with integrated safety brake, chain manual override and push button control.Manufacturer guidanceBoth tubular and outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Control | Manufacturer guidanceNumerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None.Manual override facility. |
Weight | 32 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | 90 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
CHAS
CHAS Standard
Constructionline Gold
Construction Line GOLD
Secured By Design
LPCB LPS 1175 Issue 8 (SR5)
Secured By Design
Secured by Design - certficate
Literature
E130 Elite E10 (SR5) Datasheet
Case studies
Military Base - UK
