E37 Elite Aluminium Security Shutter
Verified by manufacturer 4 months ago
QA Certificate
Certificate type
LPCB SR1 insurance approved extruded aluminium security roller shutter with 37 mm high slats.
Application
Windows, doors and openings in domestic and commercial uses.
Description

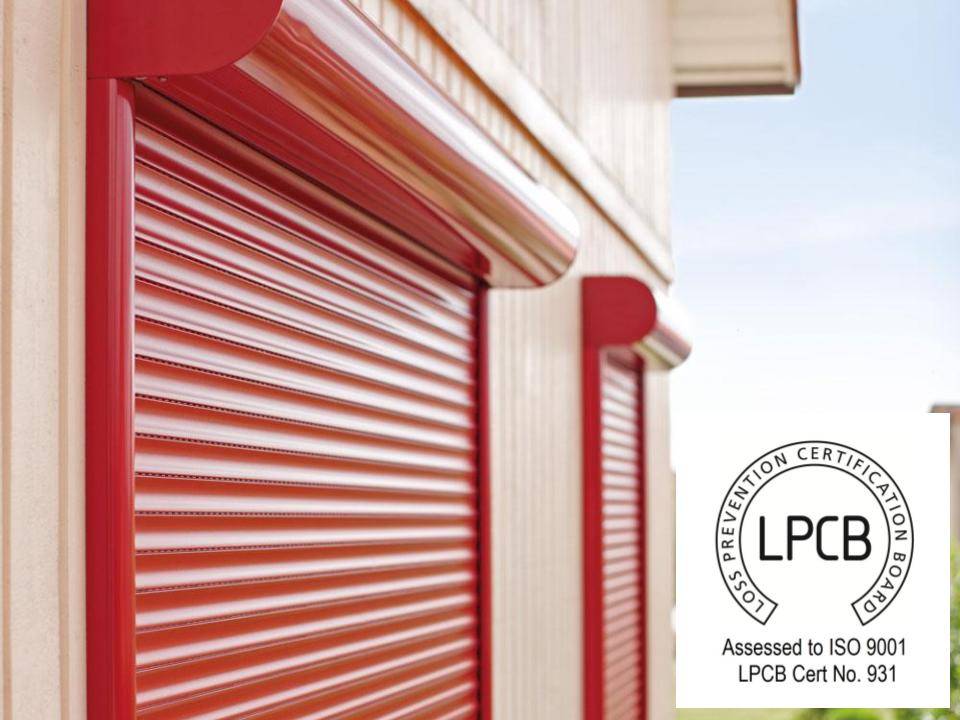

Double-skinned extruded aluminium security roller shutter with 37 mm high slats. It has been tested by the Loss Prevention Certification Board (LPCB) and awarded insurance approved 'Secured by Design' status. It is tested to LPS 1175 SR1 and can be mounted internally, externally or reveal fixed. The shutter can span up to 3 m in width and an area up to 9 m².
Features and benefits:
- Guide channel depth: 60HD.
General information
Color | Brown White Manufacturer guidanceOption to powder coat any RAL / BS colour or laminate wood effect (surcharge applies). Consult manufacturer and insert requirements. |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 3000 x 3000 mm.Guidance for specification option: Available up to 3000 x 4700 mm (w x h). Up to 9m². Manufacturer guidanceEnclosure size (internal face fix): Dependent on height.
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | 9 mm thick aluminium with foam insulating core, 37 mm in height. Bottom slat: Extruded aluminium with brush and rubber weather seals. |
Profile | Manufacturer guidance37 mm. |
Finish and colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: 60 mm deep heavy duty extruded aluminium incorporating unique aluminium box sections to enhance security. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Single phase tubular motor with internal rocker or external key switch. |
Control | Manufacturer guidanceNumerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None.Crank handle.Manual override facility. |
Weight | 8.1 kg/m². |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 DWG | - | 1 |
 Revit | - | 1 |
Third party certifications
QA Certificate
LPCB LPS 1175 Issue 6
