E77 Extruded Aluminium Security Shutter

Verified by manufacturer 5 months ago

Roché Systems Ltd

Extruded aluminium security roller shutters with 77 mm high slats.

Jump to:
BOS
03330347967 Website

Application

Suitable for commercial sites and shopfronts that require medium security.

Description

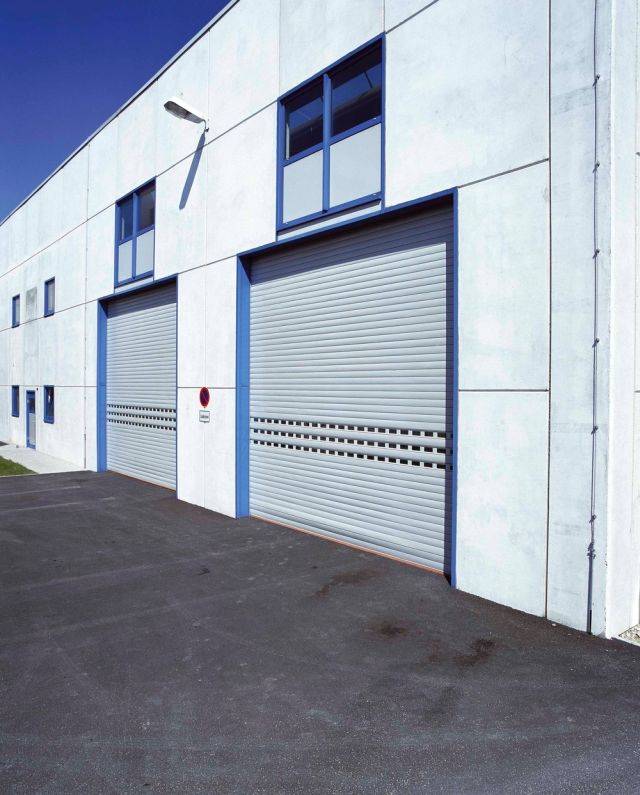

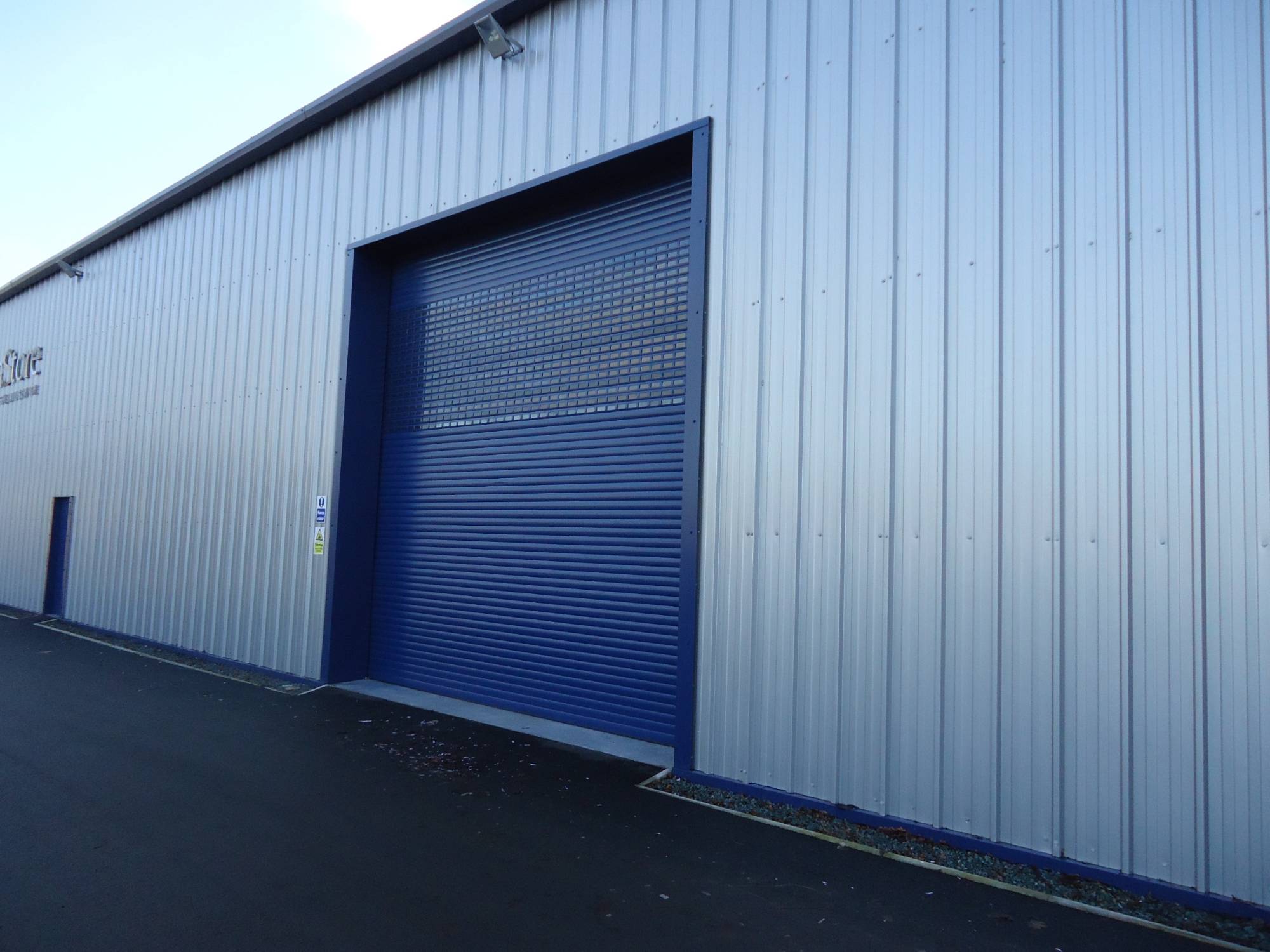

Double-skinned extruded aluminium security roller shutters with 77 mm high slats, available with solid, punched and perforated profiles. The shutters can span up to 6.5 m in width and an area up to 25 m².


General information

Color

White

Brown

Manufacturer guidance

Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies). Consult manufacturer and insert requirements.

Finish

Galvanized

Powder-coated

Plastisol

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Extruded Roller Shutters

Specification data - Roller shutters

Opening sizes

6500 x 3640 mm.

Guidance for specification option:

Available up to 6500 x 3640 mm (w x h).

Manufacturer guidance

Enclosure size (internal face fix):

Dependent on height.

  • <2700 mm: 300 mm.
  • 2700–3640 mm: 360 mm.

Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

18.5 mm thick double-skinned extruded aluminium, 77 mm in height.

Finish and colour

Brown.

Guidance for specification option:

Standard colour.

White.

Guidance for specification option:

Standard colour.

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Frame and guides

-

Material

Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium. Bottom slat: Extruded aluminium with brush and rubber weather seals.

Colour

Brown.

Guidance for specification option:

Standard colour.

White.

Guidance for specification option:

Standard colour.

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Operation

-

Mode

Electric.

Guidance for specification option:

Standard.

Manual, cord belt.

Manual, rod and crank.

Manual, spring and lock.

Manufacturer guidance

Electric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available.

Accessories

None.

Manual override facility.

Polycarbonate infills.

Guidance for specification option:

Available with V77 only.

Guide channel depth

70 mm.

90 mm.

150 mm.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

DWG
-

1

IFC
-

1
