Eurolook Transparent Security Shutter

Verified by manufacturer 13 hours ago

Roché Systems Ltd

Transparent security roller shutter with polycarbonate links.

Jump to:
BOS
03330347967 Website

Application

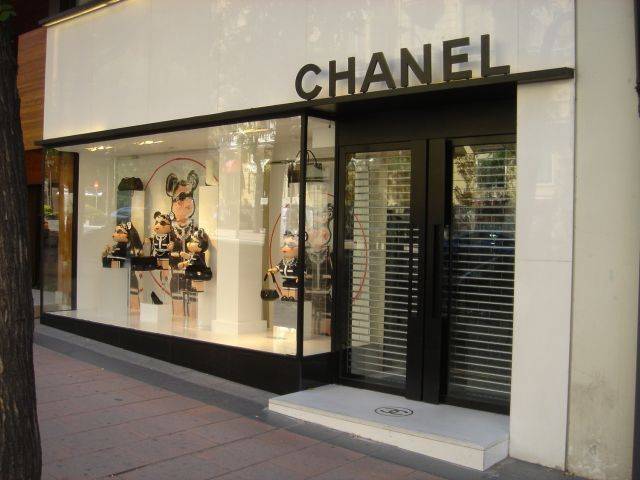

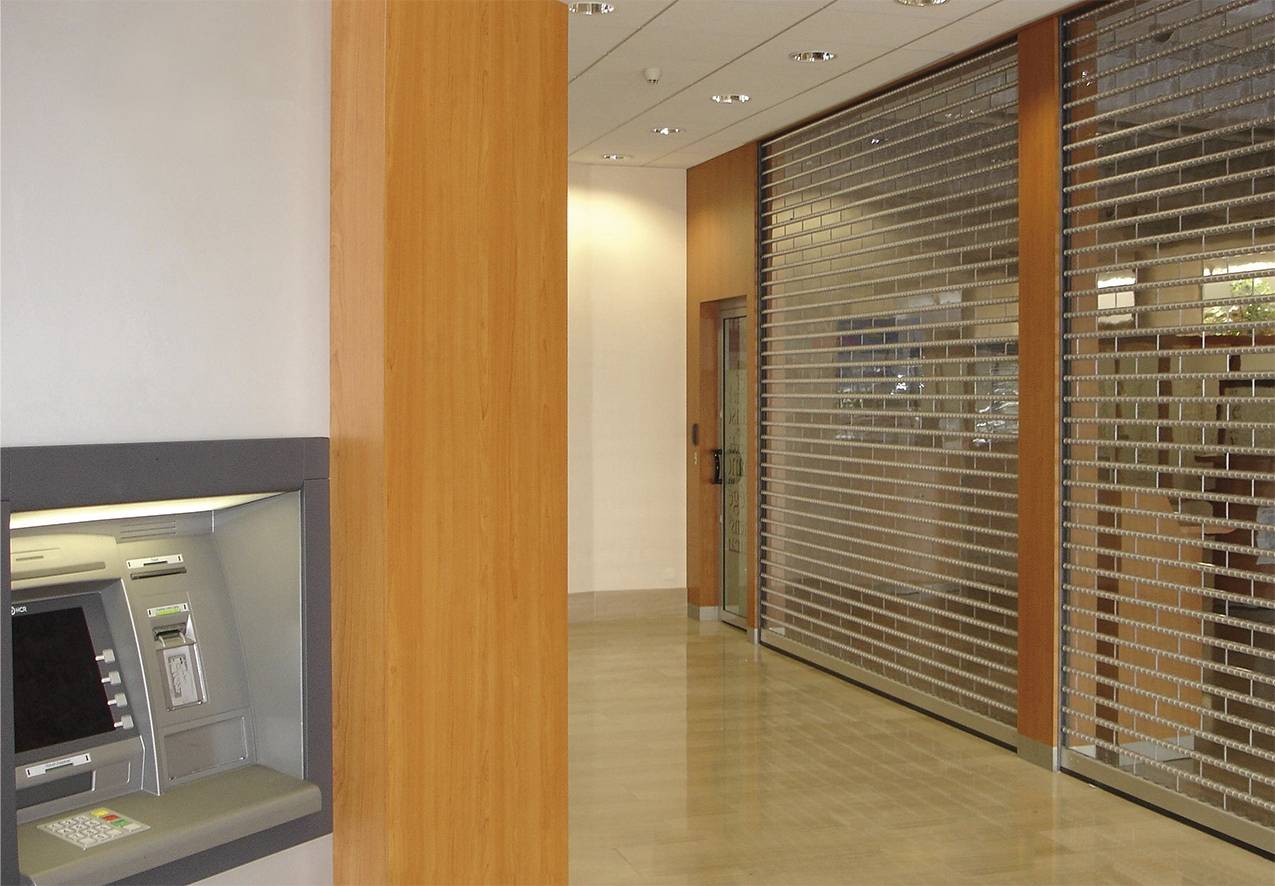

Suited to shops, banks and museums, where both high security and transparency are essential.

Description

The Eurolook shutter is transparent and offers a maximum surface area of up to 50m² when mounted externally and 72m² when mounted internally.


Features and benefits:


  • Synthetic links of polycarbonate built in a brick formation as standard, enabling 83% transparency and 92% daylight transmission.
  • Extruded aluminium guides with a PVC weather seal.
  • Tested by SKG to ENV 1627-16390 standard with Class 3 security rating. Fire tested to BS 476:Part 7 (1997), Class 1 rating.

General information

Color

Clear

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Vision Roller Shutters

Specification data - Roller shutters

Opening sizes

12000 mm.

Guidance for specification option:

29m² (tubular motor), 72m² (outboard motor, internal fit) or 50m² (outboard motor, external fit).

Manufacturer guidance

Plate size (internal face fix):

Dependent on height.

  • <3000 mm: 305 mm.
  • 3000–3800 mm: 355 mm.
  • 3800–5000 mm: 400 mm.


Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

17 mm thick aluminium with polycarbonate links, 85 mm in height.

Profile

-

Manufacturer guidance

85 mm.

Finish and colour

Transparent.

Guidance for specification option:

Frosted or ventilated options available.

Frame and guides

-

Material

Guide channels: Extruded aluminium. Bottom slat: Extruded aluminium with EPDM weather seal.

Finish

Mill finish.

Colour

-

Manufacturer guidance

Any RAL or BS standard colour available. Consult manufacturer and insert requirement.

Operation

-

Mode

NRG Econom tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available.

Control

Push button.

Key switch.

Accessories

None.

Crank handle.

Manual override facility.

Guide channel depth

80 mm.

115 mm.

Fire resistance

To BS 476-7: Class 1.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
DWG
-

1

Revit
-

1

IFC
-

1
