E37 Extruded Aluminium Security Shutter

Verified by manufacturer 17 days ago

Roché Systems Ltd

Extruded aluminium security roller shutter. Optional upgrade to Secured By Design police preferred specification with approval to LPS1175 SR1.

Jump to:
BOS
03330347967 Website

Application

Medium security domestic and commercial applications for windows and doors.

Description

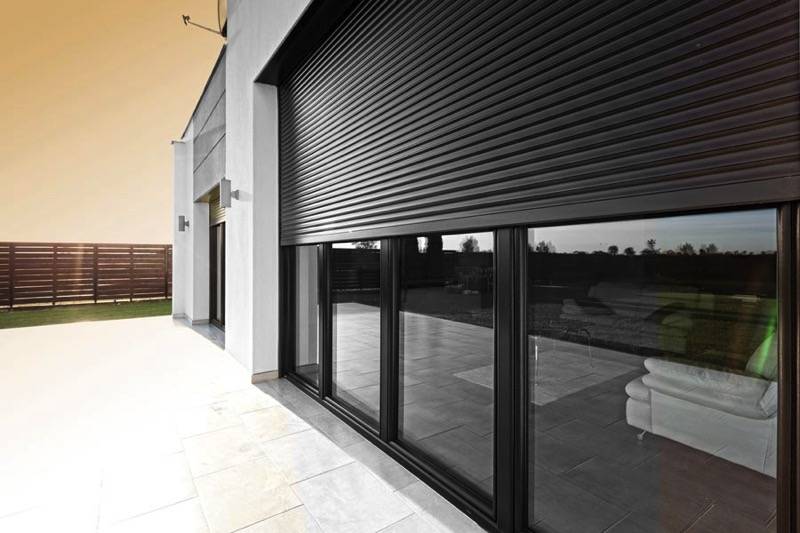

Aluminium security roller shutters with 37 mm double skinned profile. The E37 security shutter is made to measure and can span up to 4 m in width and an area up to 12 m² with a wide variety of control options.

General information

Color

White

Black

Grey

Other

Guidance for specification option:

Any RAL / BS colour.

Finish

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Extruded Roller Shutters

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Up to 12 m² with a maximum width of 4 m and height of 5 m.

Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

9 mm thick double skinned extruded aluminium profiles with a weather profiles with a weather proof bottom seal.

Profile

-

Manufacturer guidance

37 mm.

Finish and colour

Anthracite, RAL 7016.

BS.

Guidance for specification option:

Insert colour requirement.

Black, RAL 9005.

RAL.

Guidance for specification option:

Insert colour requirement.

White, RAL 9016.

Frame and guides

-

Material

Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps.
Guide channels: Extruded aluminium with protective brushes and weather seals.

Colour

Colour matched to shutter.

Guidance for specification option:

As standard.

Operation

-

Mode

Somfy motor and push button switch as standard with a variety of motor control options.

Control

Somfy push button.

Remote control.

Home automation.

Accessories

Internal manual override.

Guidance for specification option:

As standard for operation in the event of power failure.

External override or battery back up.

Guidance for specification option:

Optional.

See through punched and perforated vision profiles with or without polycarbonate inserts.

Guidance for specification option:

Optional.

Guide channel depth

53 mm.

60 mm.

68 mm.

Weight

7.9 kg/m².

Sustainability data

Country of product manufacture

United Kingdom
