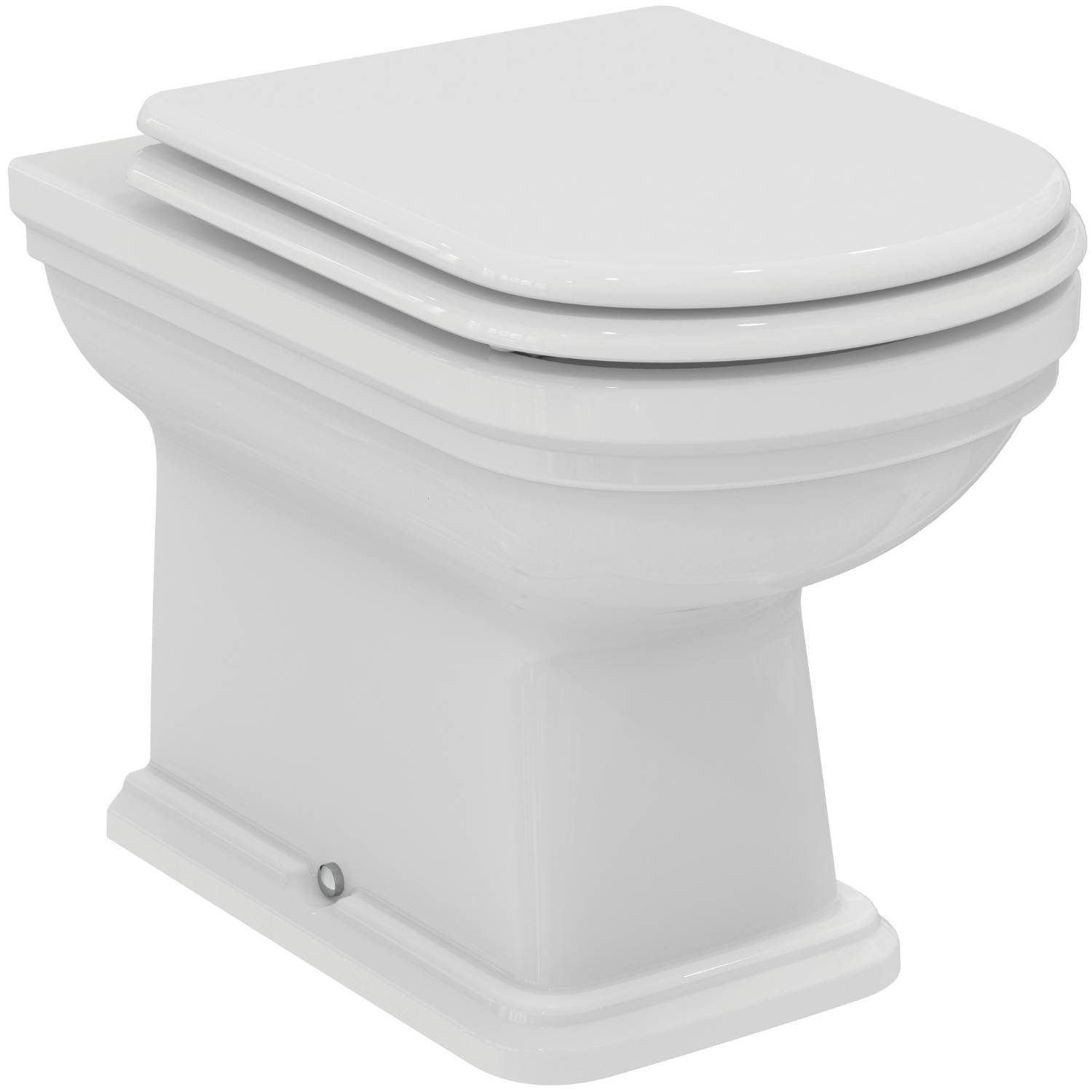

Ideal Standard Calla back to wall toilet bowl with horizontal outlet
Verified by manufacturer 4 days ago
EPD
Certificate type
Calla back to wall wc bowl with horizontal outlet.
Application
Suitable for installation in residential and hotel applications.
Description
Back-to-wall bowl, 360 x 540 x 400 mm in white glossy finish, CL1 full flush 4.5–6 L/min, horizontal outlet.
Features and benefits:
- Complies to EN 997 and BS EN 33.
- DoP classification CL1-6A/5A+CL2.
- White glossy finish.
General information
Color | White |
Finish | Gloss |
Material | Vitreous china |
Shape | Other |
Length | 540 mm |
Width | 360 mm |
Height | 400 mm |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997, Class 1/2.Guidance for specification option: CL1-6A/5A+CL2. |
Form | Back-to-wall, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Integral accessories | Fixing set. |
Width | 360 mm. |
Length | 540 mm. Manufacturer guidanceLength/ projection. |
Net weight | 22.60 kg. |
Sustainability data
Contains Red List materials | No |
Material | Vitreous china |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Vitreous China
