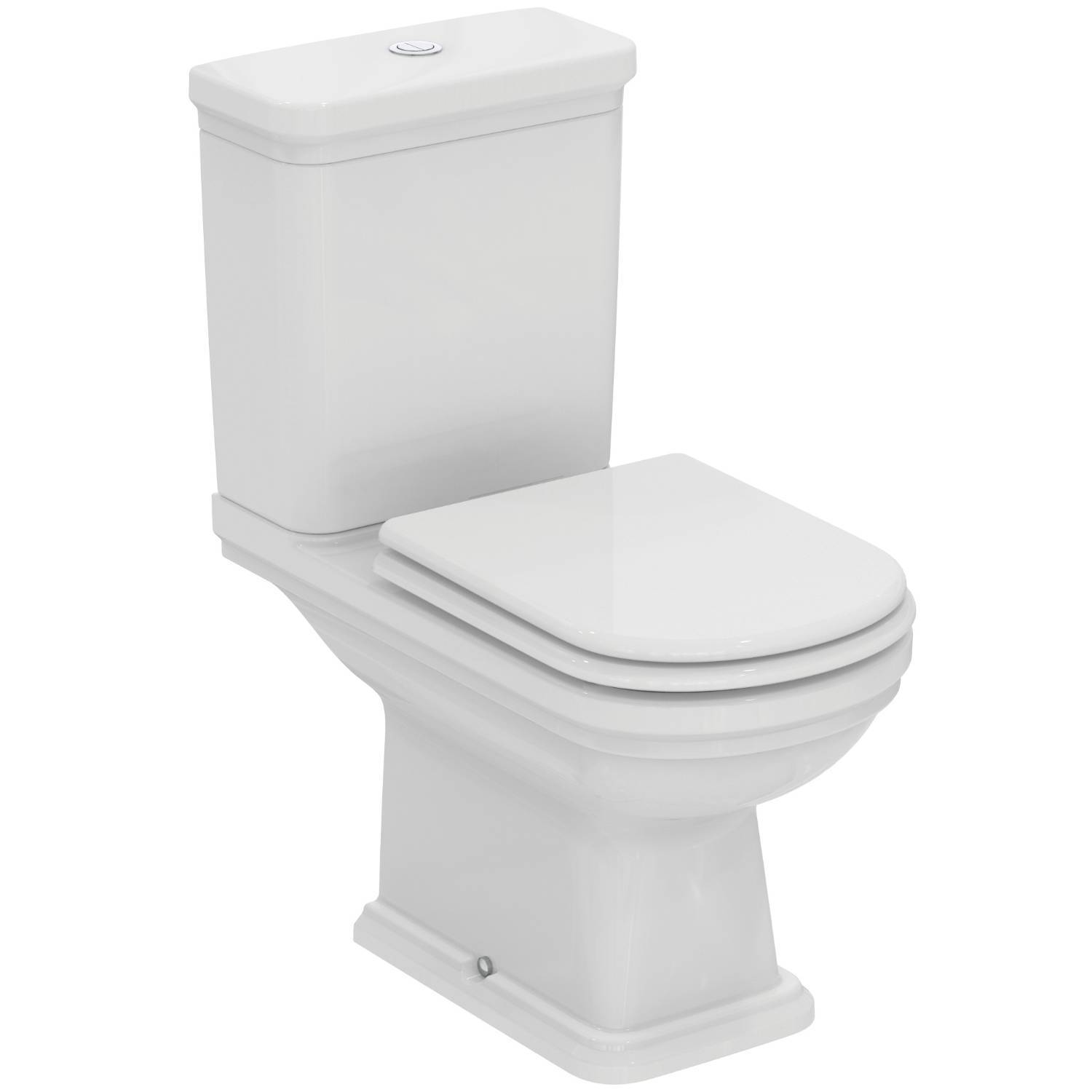

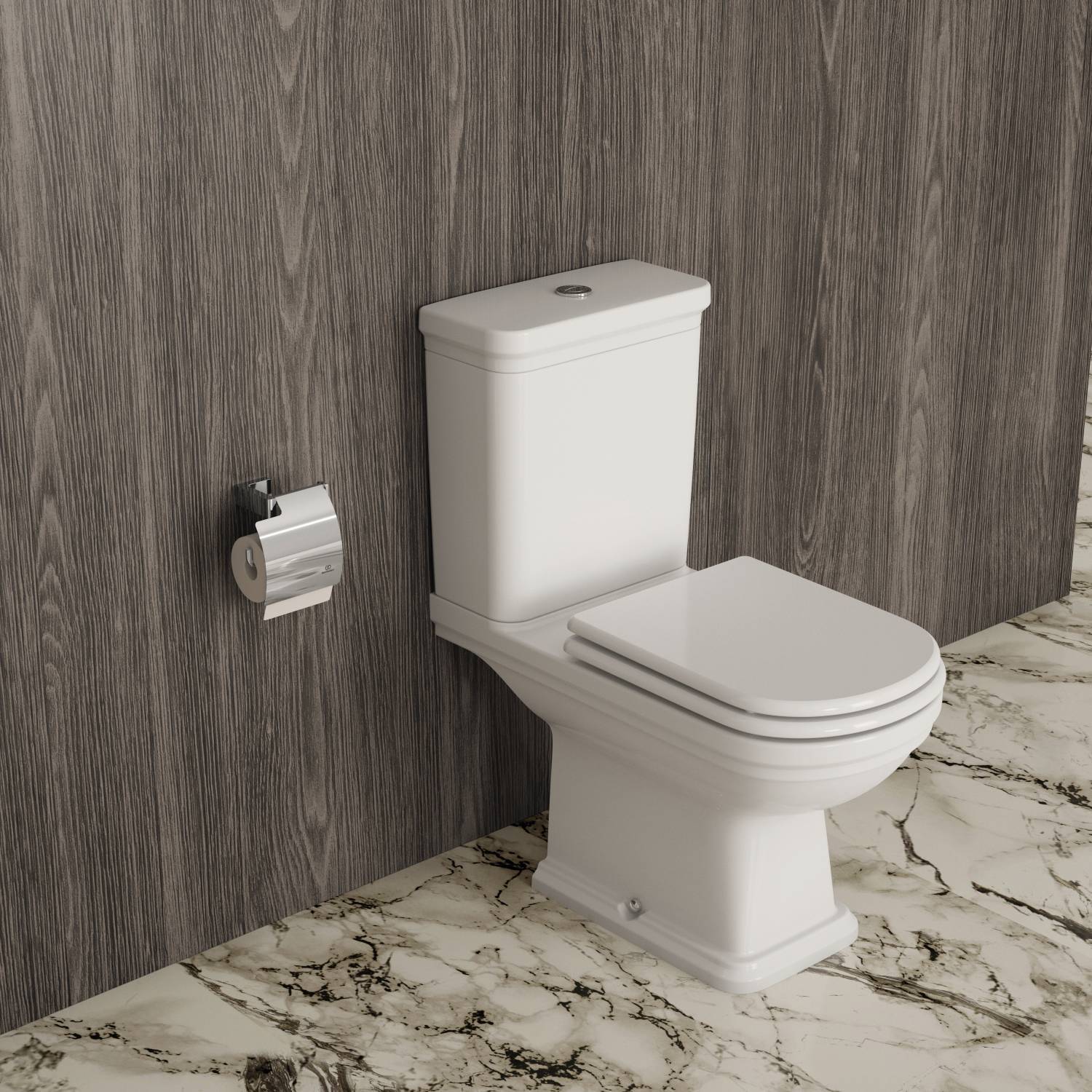

Ideal Standard Calla close coupled toilet bowl with horizontal outlet

Verified by manufacturer 1 month ago

Ideal Standard (UK) Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Calla close coupled WC bowl with horizontal outlet.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for installation in residential and hotel applications.

Description

Close-coupled open bowl 390 x 690 x 400 mm in white glossy finish, horizontal outlet.


Features and benefits:

  • Complies to EN 997 and BS EN 33.
  • DoP classification CL1-6/5-VR II+CL2.
  • White glossy finish.
  • Designed by Palomba Serafini Associati.

General information

Color

White

Finish

Gloss

Material

Vitreous china

Shape

Other

Length

690 mm

Width

390 mm

Height

400 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/300 WCs and cisterns

N13/10 WC pans and flushing arrangements

Specification data - WC pans

Standard

To BS EN 997, Class 1/2.

Guidance for specification option:

CL1-6/5-VR II+CL2.

Form

Back-to-wall, washdown.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Vitreous china.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

Seat holes

Standard pattern.

Integral accessories

Fixing set.

Width

390 mm.

Length

690 mm.

Manufacturer guidance

Length/ projection.

Net weight

26.20 kg.

Sustainability data

Material

Vitreous china

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

EPD

EPD

EPD - Ceramic Vitreous China

Literature

Atelier Collections Brochure

Atelier Collections Brochure
