Magply A1 Non Combustible Render Board

Verified by manufacturer 6 days ago

Magply Product certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

High performance Render board for use as substrate in various Render systems

Jump to:
01621 776252 Website

Application

Magply is designed to accept direct render applications to form the external façades of commercial and domestic properties which utilise hybrid frames structures. Suitable for use in:

  • Steel frames.
  • Timber frames.
  • Park homes.
  • Modular construction.

Description

Euroclass A1 non-combustible render board.

Features and benefits:

  • High strength, breathable board manufactured from magnesium sulphate (MOS) and reinforcement meshes which provide high dimensional stability.
  • Tested with a variety of render systems by the British Board of Agrément.
  • Carries BBA certification and has been tested to European Standards for fire integrity, insulation, racking strength, hygrothermal performance, acoustics, water absorption, impact and pull-out resistance.
  • 12 mm-thick Magply has been tested to provide up to a two-hour through-wall solution in light gauge steel (LGS) frame
  • Odourless, non-combustible, insoluble in water, freeze/ thaw resistant, breathable and water-resistant, mould resistant, inert and has no nutritional value rendering it unattractive to insects and rodents.
  • A1 non-combustible, class 1 racking strength, sound reduction.

General information

Color

White

Finish

Smooth

Textured

Material

Mineral board

Shape

Rectangle

Length

2400 mm

800 mm

Width

1200 mm

Height

12 mm

Manufacturer guidance

Thickness.

Uniclass

Pr_25_71_52_50 Magnesium oxide boardsPrimary

CAWS

K13/160 Proprietary

K13/160 Proprietary

K11/890 Board

K11/60 Board

Specification data - Magnesium oxide boards

Standard

To BS EN 12467.

Third-party product certification

BBA render certificate.

Fire rating

To BS EN 476 (Parts 6 and 7), Class 0. To Euroclass EN 13501, A1 (Non-Combustible).

Weather resistance

Freeze/ thaw resistant, breathable and water-resistant.

Bending strength

To EN 12467, 8.72 MPa.

Sheet size

-

Nominal thickness

12 mm.

Length

2400 mm.

Width

1200 mm.

Edges

Square.

Finish as delivered

One smooth side and one textured side.

Guidance for specification option:

For Fire Resistant Applications use either Magply 4 Hour Intumescent Sealant or Magply A1 Filler Adhesive.

Colour

Off white.

Density

1100 kg/m³.

Thermal conductivity

0.495 W/m·K.

Moisture resistance

Class 1.

Vapour resistance

To EN ISO 12572, 0.31 MNs/g.

Odour

Odourless.

Solubility in water

Insoluble.

Release of dangerous substances

None.

Freeze/ Thaw Resistance

To BS EN 12467, pass.

Weight (per panel)

38.0 kg.

Technical characteristics, other

Heat rain performance to BS EN 12467, pass.
Warm water performance to BS EN 12467, pass.
Soak dry performance to BS EN 12467, pass.

Sustainability data

Country of material origin

China

Country of product manufacture

China

Material

Mineral board

Recyclability

Both glass reinforced plastic (GRP) mesh and magnesium oxide (MgO) are recyclable.

Expected Life

30 year

Guidance for specification option:

30+ years, as per life of render system, as stated by BBA certificate.

Product certifications

BBA Agrément Certificate

BBA Agrément Certificate

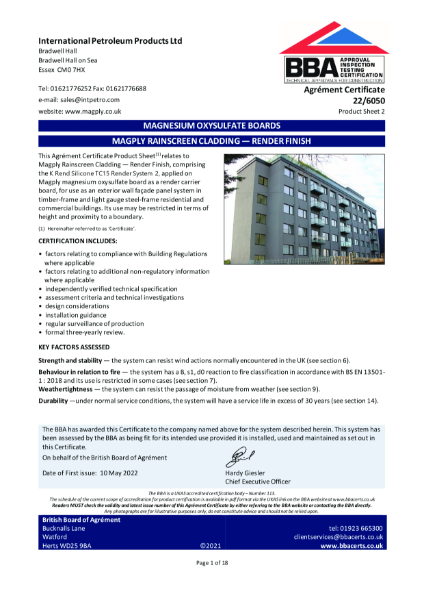

BBA Render Certificate

BS EN 13501-1

BS EN 13501-1

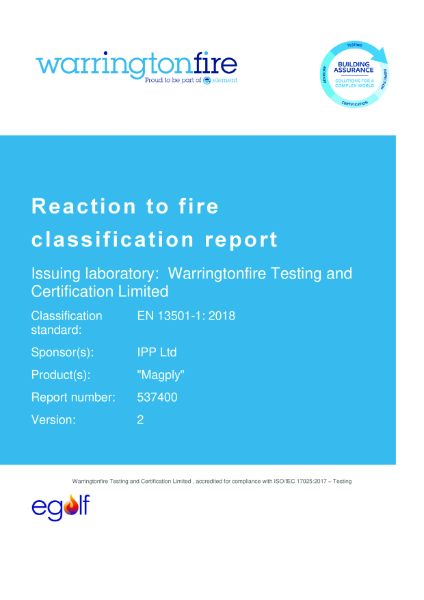

Magply A1 Reaction to Fire

Literature

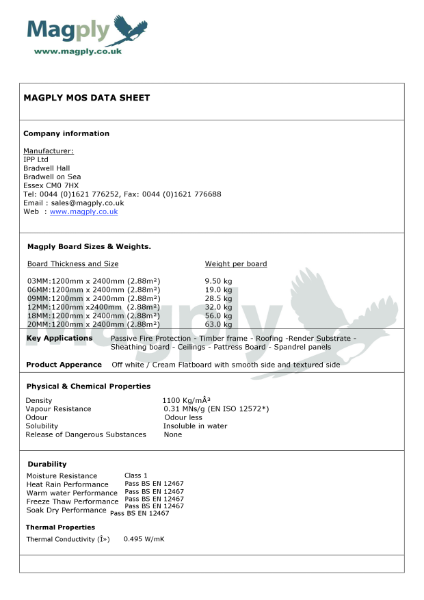

Magply A1 Non Combustible Fire Protection Board - Datasheet

Magply A1 Non Combustible Fire Protection Board - Datasheet

Magply A1 Brochure

Magply A1 Brochure

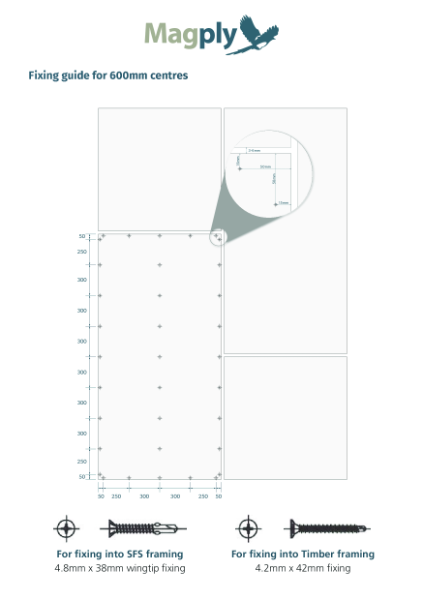

Wall fixing instructions

Wall fixing instructions
