Magply A1 Non Combustible Sheathing Board

Verified by manufacturer 6 days ago

9 mm Thick

Magply Variant:
Product certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

High strength and breathable A1 board for multiple Sheathing applications

Jump to:
01621 776252 Website

Application

BBA Approved A1 board, suitable for use in both internal and external Sheathing applications

Description

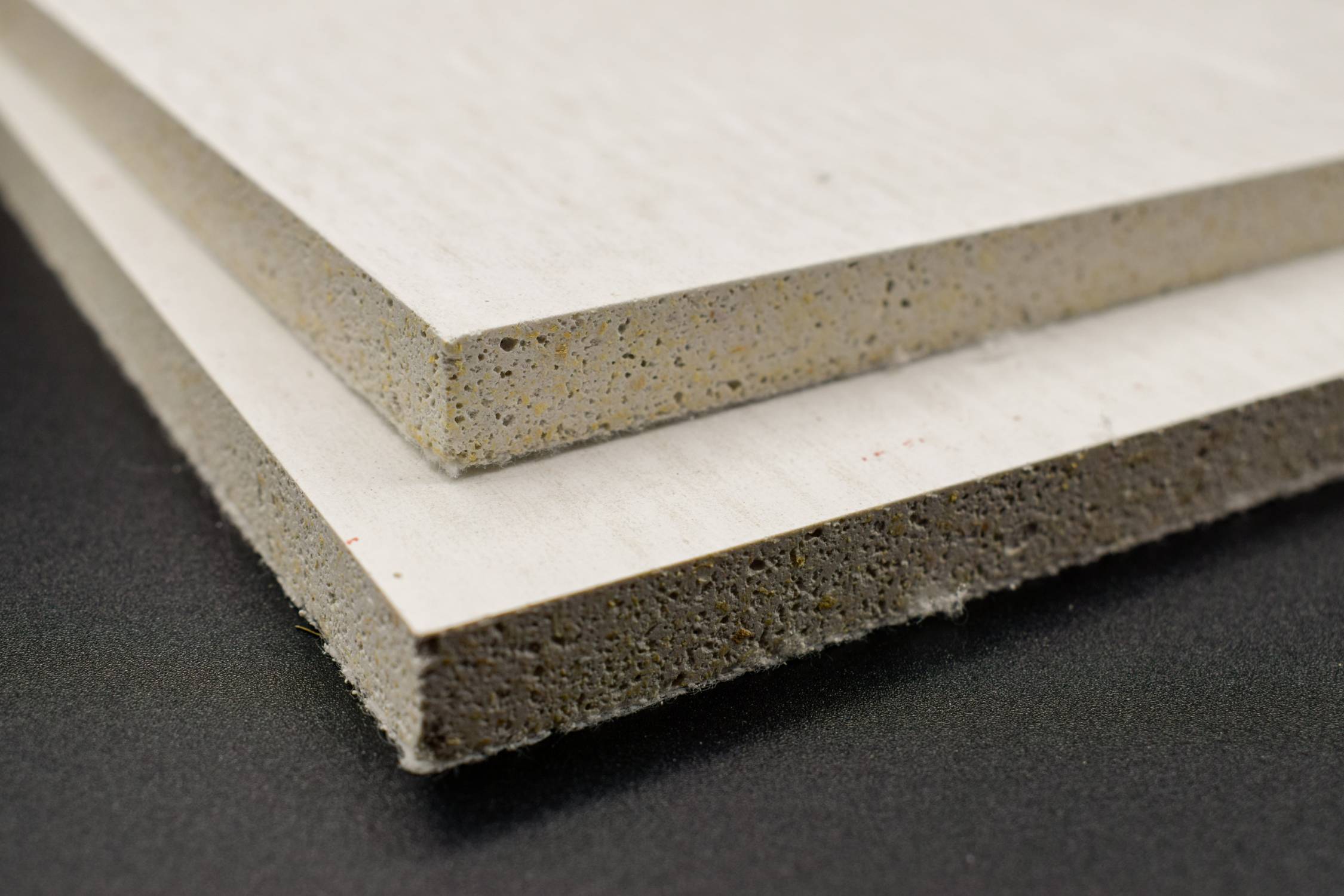

Euroclass A1 non-combustible sheathing board.

Features and benefits:

  • High strength, breathable board manufactured from magnesium sulphate (MOS) and reinforcement meshes which provide high dimensional stability.
  • Tested with a variety of render systems by the British Board of Agrément.
  • Carries BBA certification and has been tested to European Standards for fire integrity, insulation, racking strength, hygrothermal performance, acoustics, water absorption, impact and pull-out resistance.
  • Available in a range of thicknesses.
  • Suitable for Timber & LGS sheathing
  • 9 mm-thick Magply has been tested to provide a one-hour through-wall solution and 12 mm-thick Magply has been tested to provide a two-hour through-wall solution in light gauge steel (LGS) frame.
  • Odourless, non-combustible, insoluble in water, freeze/ thaw resistant, breathable and water-resistant, inert and has no nutritional value rendering it unattractive to insects and rodents.
  • A1 non-combustible, racking strength, sound reduction.
  • BBA Agrement Certification
  • Tested at Lucideon, WarringtonFire and BUNCH.

General information

Color

White

Finish

Smooth

Textured

Material

Mineral board

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

9 mm

12 mm

Manufacturer guidance

Thickness.

Uniclass

Pr_25_71_52_50 Magnesium oxide boardsPrimary

CAWS

K13/160 Proprietary

K13/160 Proprietary

K11/890 Board

K11/485 Wall sheathing

K11/60 Board

Specification data - Magnesium oxide boards

Standard

Tested to BS EN 12467.

Third-party product certification

BBA Agrément Certificate and European Technical Approval (ETA).

Guidance for specification option:

BBA: Sheathing.

Fire rating

To BS EN 476 (Parts 6 and 7), Class 0.
To Euroclass EN 13501, A1 (Non-Combustible).

Weather resistance

Freeze/ thaw resistant, breathable and water-resistant.

Sheet size

-

Nominal thickness

9 mm.

Length

2400 mm.

Width

1200 mm.

Edges

Square.

Finish as delivered

One smooth side and one textured side.

Guidance for specification option:

For Fire Resistant Applications use either Magply 4 Hour Intumescent Sealant or Magply A1 Filler Adhesive.

Colour

Off white.

Density

1100 kg/m³.

Thermal conductivity

0.495 W/m·K.

Moisture resistance

Class 1.

Vapour resistance

To EN ISO 12572, 0.31 MNs/g.

Odour

Odourless.

Solubility in water

Insoluble.

Release of dangerous substances

None.

Freeze/ Thaw Resistance

To BS EN 12467, pass.

Weight (per panel)

28.5 kg.

Technical characteristics, other

Heat rain performance to BS EN 12467, pass.
Warm water performance to BS EN 12467, pass.
Soak dry performance to BS EN 12467, pass.

Sustainability data

Country of material origin

China

Country of product manufacture

China

Material

Mineral board

Recyclability

Fully recyclable.

Product certifications

BS EN 13501-1

BS EN 13501-1

Magply A1 Reaction to Fire

BBA Agrément Certificate

BBA Agrément Certificate

Magply Sheathing BBA Certificate

Literature

Magply A1 Non Combustible Fire Protection Board - Datasheet

Magply A1 Non Combustible Fire Protection Board - Datasheet

Magply A1 Brochure

Magply A1 Brochure

Wall fixing instructions

Wall fixing instructions

Magply-DOP

Magply-DOP
